NEXON液位傳感器LN3000系列技術參數
Measuring range(Guide rod lengthL) | 250mm/ 500mm/ 750mm/ 1000mm/1250mm/1500mm/2000mm |
Measuring medium | Corrosion Compatible Stainless Steel304the liquid |
Withstand voltage | 20bar |
Medium density | ≥0.7g/cm3 |
Supply voltage | 12…30Vdc |
No-load current consumption | ≤30mA,exist24VdcWhen power supply |
Switch output | |
Output type | Push-pull (compatible withPNPandNPN), normally open and normally closed can be set |
S1,S2Output current | <500mA |
Voltage drop | <1V |
Current mode analog output | |
Output type | Third line4…20mA |
LoadRA | RA≤500Ω |
Voltage type analog output | |
Output type | Third line0…5V |
LoadRA | RA>10KΩ |
Linearity | ≤±1.5%Range |
Wiring protection | Reverse phase, overload, short circuit protection |
Show | |
Design | Red4 bit 8mmhigh brightness7segment numberled |
Digital display range | -1999…9999 |
Temperature | |
Operating temperature/Medium temperature | -20…85℃ |
Storage temperature | -20…+100℃ |
Material | |
Head case | Zinc alloy |
Case | Stainless steel304 |
Process Connection Float Guide Rod | Stainless steel304 |
Degree of protection | IP67 |
Outgoing way | M12×1Connector |
Process connection | G2external thread |
NEXON液位傳感器LN3000系列介紹
LN3000 數字顯示浮球液位傳感器
隨著液位波動，磁性浮子觸發管內的開關，從而改變連接電阻的數量。這種電阻的變化被轉換為標準電信號輸出。全金屬外殼，高亮LED顯示，雙按鍵設計，用戶友好的菜單，多種過程連接，330°可旋轉指示器。
? 4位LED數字顯示
? 全金屬外殼
? PNP/NPN 可編程
? 3線4..20mA；3線0…5V可編程
? 可旋轉指示器
? 不銹鋼接液部件

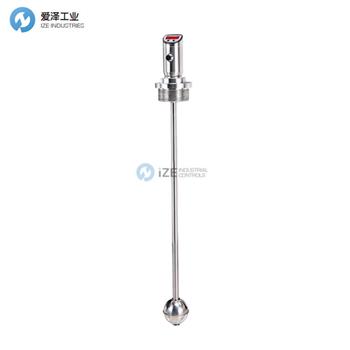

LN3000-Float Level Sensor With Digital Display
With liquid level fluctuation, a magnetic float triggers the switch inside tube,which changes the number of connected resistors. This changing of resistance is converted to standard electrical signal output. All-metal housing with highlight LED display, dual-keydesign, user friendly menu, multiple process connections, 330° rotatable indicator.
? 4-digit LED digital display
? All-metal housing
? PNP/NPN programmable
? 3-wire 4..20mA；3-wire 0…5V programmable
? Rotatable indicator
? Stainless steel wetted parts
NEXON液位傳感器LN3000系列其他常用型號：
NEXON LN3000/21GSM250C
NEXON LN3000/21GSM500C
NEXON LN3000/21GSM750C
NEXON LN3000/21GSM1000C
NEXON LN3000/21GSM1250C
NEXON LN3000/21GSM1500C
NEXON LN3000/21GSM2000C
NEXON LN3000/22GSM250C
NEXON LN3000/22GSM500C
NEXON LN3000/22GSM750C
NEXON LN3000/22GSM1000C
NEXON LN3000/22GSM1250C
NEXON LN3000/22GSM1500C
NEXON LN3000/22GSM2000C
NEXON LN3000/21GSM0750S/5MM
NEXON LEVEL SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NEXON液位傳感器LN3000/21GSM0750S/5MM的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NEXON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
