AXIOMATIC電流轉換器IC-DR-11技術參數
Technical Specifications: | |
Input Specifications: | |
Current Input | 4-20mA |
Input Impedance | 50 Ohms +/- 1% |
Output Specifications: | |
Output Specifications | Factory settings +/- 2mA: 0-200mA |
Output Impedance | <40 MOhm |
Response Time | <5 mSec. |
Non-linearity | <0.1% without adjustments performed |
General Specifications: | |
Power Supply | 24Vdc nominal (15-45Vdc operating range) |
Power Consumption | 550 milliwatts |
Reverse Polarity Protection | Provided |
Operating Conditions | -40 to 85 degrees C (-40 to 185 degrees F) |
Electrical Connection | Screw terminals accept 14-24 AWG wire |
Enable (enables output through closing a mechanical relay contact) | To enable operation, externally short terminals 1 and 3. |
Protection | PCB conformal coated |
Weight | 0.25 lb. (0.11 kg) |

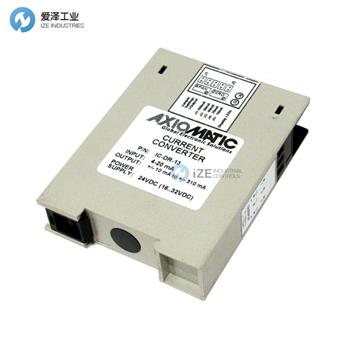

AXIOMATIC電流轉換器IC-DR系列介紹
電流轉換器接受 24VDC 電源（標稱）和 4-20mA 輸入信號，將其轉換為電流輸出。提供各種輸出，包括 0-200 mA、20-200 mA、5-195 mA、0-100 mA、20-160 mA、40-160 mA、0-160 mA 或 0-50 mA。量程和零位可由用戶調節。診斷 LED 指示運行狀態，在連接負載、輸入信號和電源時發出綠光。負載應該是浮動的，與地隔離。電路板采用保形涂層，該裝置采用 35 毫米 DIN 導軌安裝外殼。
The Current Converter accepts a 24VDC power supply (nominal) and a 4-20mA input signal converting it to a current output. Various outputs are available, including 0-200 mA, 20-200 mA, 5-195 mA, 0-100 mA, 20-160 mA, 40- 160 mA, 0-160 mA or 0-50 mA. Span and zero is user adjustable. A diagnostic LED indicates operational status, glowing green when the load, input signal and power supply are connected. The load should be floating, isolated from ground. The circuit board is conformal coated and the unit is available in a 35 mm DIN rail mount housing.
AXIOMATIC電流轉換器IC-DR系列其他常用型號：
AXIOMATIC IC-DR-11
AXIOMATIC IC-DR-12
AXIOMATIC IC-DR-14
AXIOMATIC IC-DR-18
AXIOMATIC IC-DR-20
AXIOMATIC IC-DR-24
AXIOMATIC IC-DR-25
AXIOMATIC CURRENT CONVERTER NEW + ORIGINAL+ ONE YEAR WARRANTY
