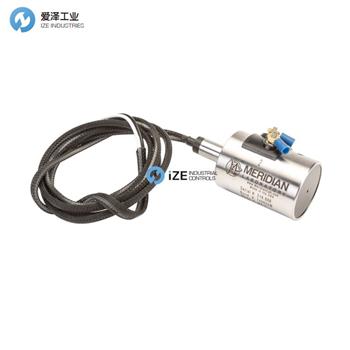

MERIDIAN LABORATORY滑環M系列技術參數
SPECIFICATIONS | |
MECHANICAL | |
MOUNTING | End of shaft or flange |
HOUSING MATERIAL | 304 Stainless steel |
TERMINATIONS | Ring terminals, flying leads, MIL-spec or other connectors |
OPERATION | Can be operated in any direction or orientation |
MAINTENANCE | Features permanently lubricated bearings, brush-free design requires no user maintenance |
ELECTRICAL | |
VOLTAGE | Standard: Up to 600V AC/DC, Optional: Up to 3,500V AC/DC |
MINIMUM INSULATION RESISTANCE | >500MΩ @ 1kVDC |
AMPERAGE | Model dependent, up to 35A/channel (channels can be bridged in parallel, for higher capacity) |
FREQUENCY | Up to 1GHz (Model and application dependent) |
DATA & SIGNAL TRANSMISSION | Ethernet (10/100/1000Mbps), Etherlink, LAPPNET, Profinet, Profibus, ControlNet, DeviceNet, CAN-Bus, RS485, RS432, RS422, USB (1.0/2.0), Modbus, EtherCAT, CC-Link, coax, thermocouple (all types) and all other major communication protocols (With an appropriate number of circuits and cables) |
STATIONARY CONTACT RESISTANCE | <0.1mΩ |
ROTATING CONTACT RESISTANCE (0-MAX RPM) | Same as stationary contact resistance (<0.1mΩ) |
ELECTRICAL NOISE | <0.01uV |
NOTES | Intrinsically immune to internal arcing, designed for continuous operation |
ENVIRONMENTAL | |
AMBIENT TEMPERATURE | Not to exceed 160?F (70?C) |
IP RATING | Available up to IP67 |
MERIDIAN LABORATORY滑環ROTOCON M系列介紹
無刷、免維護運行
與旋轉接頭、光纖旋轉接頭 (FORJ) 和其他附加組件結合使用
不受機器振動或轉速的影響
環境密封
以任何方向安裝和操作
Brushless, maintenance-free operation
Combines with rotary union, fiber optic rotary joint (FORJ) and other add-ons
Unaffected by machine vibration or rotational speed
Environmentally sealed
Mount and operate in any orientation
MERIDIAN LABORATORY滑環ROTOCON M系列其他常用型號：
MERIDIAN LABORATORY MX-4-PM
MERIDIAN LABORATORY MX-4-0601
MERIDIAN LABORATORY MX-4-0224
MERIDIAN LABORATORY MX-2-ASM
MERIDIAN LABORATORY MY-4
MERIDIAN LABORATORY MZ-4
MERIDIAN LABORATORY SLIP RING NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MERIDIAN LABORATORY滑環MX-4-PM的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MERIDIAN LABORATORY products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
MERIDIAN LABORATORY滑環ROTOCON M系列MX-4-PM技術參數及介紹
