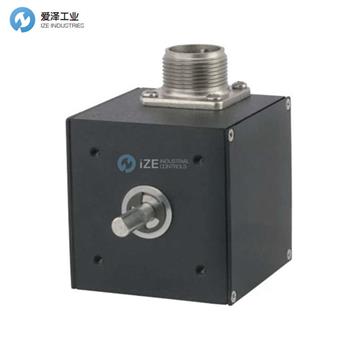

ACCU-CODER編碼器716-0120-HV-S-4-S-S-Y技術參數
MODEL | 716: Quadrature Cube |
CYCLES PER REVOLUTION (CPR) | 0120 |
INDEX PULSE | Blank: No index |
OUTPUT TYPE | HV: Line Driver |
HOUSING TYPE | S: 2.25" Standard housing |
SHAFT DIAMETER | 4: 1/4", 0.250" |
SHAFT TYPE | S: Single |
CONNECTOR TYPE | S: Standard 6-pin MS |
MATING CONNECTOR | Y: Yes |
ACCU-CODER編碼器716系列介紹
716 Accu-Coder型號非常適合需要正交輸出的應用。它專為與大多數可編程控制器、電子計數器、運動控制器和電機驅動器兼容而設計，非常適合需要了解旋轉方向的工業應用。流行的分辨率和Opto-ASIC 電路的關鍵性能規格（消除許多板級組件的單芯片設計）提高了本已可靠且耐用的編碼器的可靠性。
特點
行業標準立方體
五種多功能外殼樣式
正交輸出
分辨率可達 10,000 CPR
The Model 716 Accu-Coder? is ideally suited for applications requiring a quadrature output. Designed for compatibility with most programmable controllers, electronic counters, motion controllers, and motor drives, it is ideally suited for industrial applications where it is important that the direction of rotation be known. Critical performance specifications for the most popular resolutions and advanced Opto-ASIC circuitry — a single chip design that eliminates many board level components — increase the reliability of an already dependable and durable encoder.
Features
The original industry-standard cube
Five versatile housing styles
Quadrature output
Resolutions available to 10,000 CPR
ACCU-CODER編碼器716系列選型
ACCU-CODER編碼器716系列其他常用型號：
ACCU-CODER 716-1024-HV-S-4-S-G-N
ACCU-CODER 716-0600-S-S-6-S-S-N
ACCU-CODER 716-0050-S-S-6-S-S-N
ACCU-CODER 716-1200-H-V-S6SKN
ACCU-CODER 716-0360-S-HD10-S-S-N
ACCU-CODER 716-0100-S-S-6-D-S-N
ACCU-CODER 716-0120-HV-S-4-S-S-Y
ACCU-CODER ENCODER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ACCU-CODER編碼器716-0120-HV-S-4-S-S-Y的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ACCU-CODER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ACCU-CODER編碼器716系列716-0120-HV-S-4-S-S-Y技術參數及選型
