GF電導率電極2842系列技術參數
General | |
Operating Range | 2842: 100 to 200,000 μS; 50 to 100,000 ppm |
Cell Constant Accuracy | ±2% when the information provided on the certificate of calibration is entered into the transmitter/meter or when wet calibrated with a traceable standard. |
Dual-Threaded Process Connection | -1V versions: ? in. NPT |
Cable Length | standard: 4.6 m (15 ft) |
Temperature Element | Pt1000 |
Temp. Response, t | 0.01 cell: 5 sec. |
Temperature Accuracy | ±0.5 °C / ±0.9 °F |
Wetted Materials | |
Internal O-ring (2841 and 2842) | FKM |
Insulator Material | PVDF |
Electrode Material | 316 SS |
Threaded Process Connection | PVDF |
Max. Temperature/Pressure Rating | 131 °C @ 2.76 bar / 268 °F @ 40 psi |
Storage Temperature | -20 °C to 131 °C / -4 °F to 268 °F |
Shipping Weight | 0.30 kg / 0.66 lb |
GF電導率電極28系列產品介紹

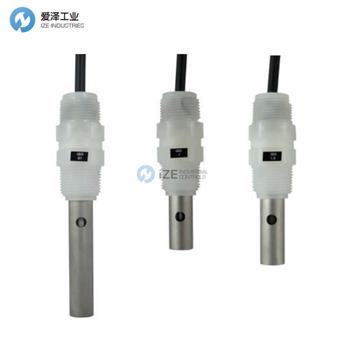

Signet 2839-1V(D) 至 2842-1V(D) 電導率/電阻率電極有 0.01 至 10.0 cm-1 四種電極常數可供選擇，適用于從高純度水質監測到弱酸和弱堿的各種應用。 316 SS 電極表面光潔度通過精密?chē)娚安僮鬟M(jìn)行控制，以確保測量精度和可重復性。
PVDF 絕緣體和過程連接件采用注塑包覆成型，以更大程度地減少電極之間的差異。 3/4 英寸 NPT 或 ISO 7/1-R 3/4 的雙螺紋連接可實現在潛水或在線配置中快速、輕松的安裝。 變送器一體式安裝套件和接線盒可作為附件提供。
The Signet 2839-1V(D) to 2842-1V(D) Conductivity/ Resistivity Electrodes are available in four cell constants from 0.01 to 10.0 cm-1, and are suitable for a wide variety of applications from high purity water quality monitoring to weak acids and bases. 316 SS electrode surface fi nishes are controlled in a precision bead blasting operation to ensure measurement accuracy and repeatability.
The PVDF insulator and process connections are injection over-molded to minimize variance between electrodes. Double threaded connections in either ? in. NPT or ISO 7/1-R 3/4 enable quick and easy installation in submersible or in-line confi gurations. Transmitter integral mounting kit and junction boxes are available as accessories.
GF電導率電極28系列其他常用型號：
GF 3-2839-1V
GF 3-2839-1VD
GF 3-2840-1V
GF 3-2840-1VD
GF 3-2841-1V
GF 3-2841-1VD
GF 3-2842-1V
GF 3-2842-1VD
GF CONDUCTIVITY ELECTRODES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GF電導率電極3-2842-1V的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GF products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GF電導率電極3-2842-1V技術參數介紹
