ACCU-CODER編碼器25T-34SJ-1024NV1DHV-SMX-S3技術參數
MODEL | 25T: Thru-Bore |
BORE SIZE | 34: 3/4", 0.750" |
MOUNTING | SJ: 3.50" to 8.10" B.C. (8.5" C-face) Tether Arm Kit |
CYCLES PER REVOLUTION | 1024 |
N | |
INPUT VOLTAGE | V1: 5 to 28 VDC |
NUMBER OF CHANNELS | D Reverse Quadrature A & B with Index ( Channel B Leads A ) |
OUTPUT TYPE | HV: Line Driver |
CONNECTOR TYPE | SMX: 10-pin MS |
SEALING | S3: IP66 |

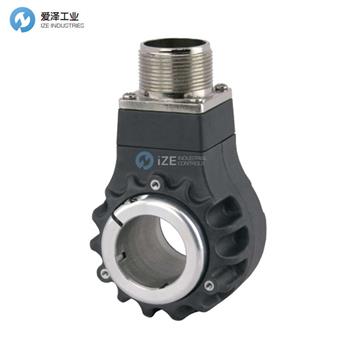

ACCU-CODER編碼器25T/H系列介紹
25T型具有 2.5” 編碼器中較大的通孔，可直接安裝在高達 1.125" (28 mm) 的軸上。這款工業級編碼器的分辨率高達 10,000 CPR，頻率高達 1MHz。強度編碼器非常適合快速旋轉的電機。
25T型采用 EPC 專有的下一代 Opto-ASIC 傳感器，可提供準確度和精確計數。注塑外殼由 EPC 定制的尼龍復合材料制成，帶有“散熱片”凹槽，可以承受運動控制行業的極端高溫。
耐腐蝕選項有通孔或盲孔，采用 304 不銹鋼軸環和安裝硬件，以及耐腐蝕壓蓋或電纜。
? 薄型 2.5 英寸 Opto-ASIC 編碼器 (2.0 英寸)
? 標準孔徑范圍為 0.25” 至 1.125”
? 公制孔徑范圍為 6 mm 至 28 mm
? 適用于 2.0" 至 3.5" 編碼器的單一替換解決方案
? 分辨率達 10,000 CPR，頻率達 1 MHz
? 多種靈活的安裝選項
? 符合 RoHS 標準
? 提供耐腐蝕選項
The Model 25T features the largest thru-bore available in a 2.5” encoder, and can mount directly on shafts as large as 1.125" (28 mm). With resolutions of up to 10,000 CPR, and frequencies of up to 1MHz, this industrial-strength encoder is perfect for fast revving motors.
The Model 25T features the next generation of EPC's proprietary Opto-ASIC sensor, which provides superior accuracy and precision counts. The injection molded housing, made from EPC's custom blend of nylon composites, is grooved with "cooling fins" and can take the extreme heat of the motion control industry.
The corrosion-resistant option, available in thru-bore or blind hollow bore, features 304 stainless steel shaft collar and mounting hardware, as well as corrosion-resistant gland or cable.
? 2.5" Opto-ASIC encoder with a low profile (2.0”)
? Standard bore sizes ranging from 0.25” to 1.125”
? Metric bore sizes ranging from 6 mm to 28 mm
? Single replacement solution for 2.0" to 3.5" encoders
? Resolutions to 10,000 CPR, frequencies to 1 MHz
? Versatile flexible mounting options
? RoHS compliant
? Available with corrosion-resistant option

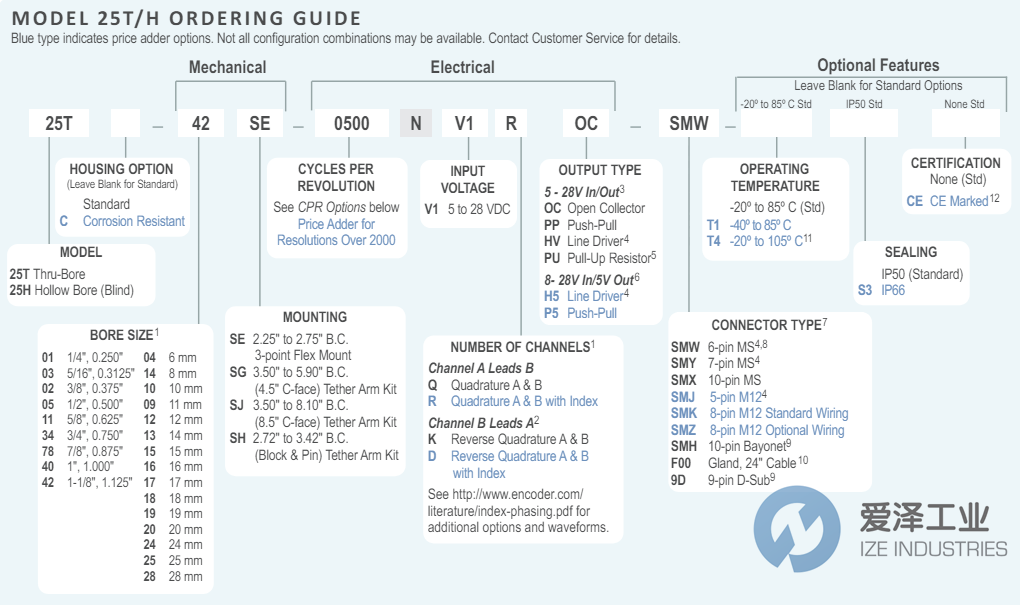

ACCU-CODER編碼器25T/H系列選型
ACCU-CODER編碼器25T/H系列其他常用型號：
ACCU-CODER 25T-34SJ-1024NV1RHV-SMX-S3
ACCU-CODER 25T-40SJ-1024NV1DHV-SMH-T4S3
ACCU-CODER 25T-34SJ-1024-NV1-DHV-SMX-S3
ACCU-CODER 25T-40SJ-5000NV1DHV-SMX-S3
ACCU-CODER 25T-40SH-3600NV1DHV-SMX-S3
ACCU-CODER 25T-20SE-1024NV1RHV-SMK
ACCU-CODER 25T-11SE-0060-N-V1-R-OC-SMJ
ACCU-CODER 25T-20SE-1024NV1QOC-SMK-S3
ACCU-CODER 25T-40SJ-10000NV1RHV-SMX-S3
ACCU-CODER 25T-40SJ-2048NV1RHV-SMX-S3
ACCU-CODER 25T-34SJ-1024NV1DHV-SMX-S3
