SENSORTRONICS稱重傳感器65023系列技術參數
Full Scale Output | 3.0 mV/V |
Tolerance on Output | 士0.25% FS |
Zero Balance | <+1%FS |
Non-Lineanity | <士0.025%FS |
Hysteresis | <士0.020% FS |
Non-Repeatability | <土0.010% FS |
Creep in 30 min | <士0.020% FS |
Operating Temperature Range | -20 to +70 deg c |
Rated Excitation | 10V DC |
Maximum Excitation | 15V DC |
Input Resistance | 349- 355 ohms |
Output Resistance | 349- 355 ohms |
Insulation Resistance (@ 50 VDC) | > 1000 meg ohms |
Temperature Effect on Span / Deg C(of Load) | 士0.001% |
Temperature Effect on Zero / Deg C | <土0.002% |
Combined Error (FSO) | <士0.045% |
Safe Overload (FSO) | 150% |
Ultimate Overload (FSO) | 300% |
Protection Class | IP67 |

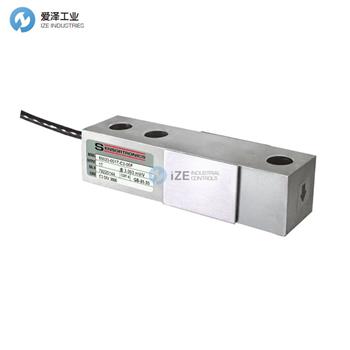

SENSORTRONICS稱重傳感器65023系列介紹
65023 型是一款薄型剪切梁稱重傳感器，設計用于高精度平臺秤、托盤秤和過程秤。
它具有很高的抗沖擊或側向負載能力，并提供 2 或 3 mV/V 靈敏度。 已獲得 OIML 和 NTEP 標準批準。 對于危險環境，該稱重傳感器可通過歐洲認證的 EEx ia IIC T6 級別。
鍍鎳和全環境密封可確保長期可靠性。 磅版本提供不銹鋼選項，可用于惡劣或腐蝕性環境。
兩條附加檢測線反饋到達稱重傳感器的電壓。 通過將該電壓饋入適當?shù)碾娮悠骷?，可以完全補償因溫度變化和/或電纜延長而引起的引線電阻變化。
Model 65023 is a low-profile shear-beam load cell designed for high accuracy platform scales, pallet scales and process-w.
It has high immunity to shock or side loading and is available in 2 or 3 mV/V sensitivity. Approved to OIML and NTEP standards. For hazardous environments this load cell is available with EEx ia IIC T6 level of European approval.
Nickel plating and full environmental sealing assures long- term reliability. A stainless-steel option is available for the lb. versions for use in harsh or corrosive environments.
Two additional sense wires feedback the voltage reaching the load cell. Complete compensation of changes in lead resistance, due to temperature change and/or cable extension is achieved by feeding this voltage into the appropriate electronics.
SENSORTRONICS稱重傳感器65023系列其他常用型號：
SENSORTRONICS 65023-110K-NC-02X
SENSORTRONICS 65023-0T50-C3-00X
SENSORTRONICS 65023-250L-NC-01F
SENSORTRONICS 65023-500L-NC-01F
SENSORTRONICS 65023-004E-A5-01F
SENSORTRONICS 65023-003T-C3-00F
SENSORTRONICS Load cell NEW + ORIGINAL+ ONE YEAR WARRANTY
