TRANSCELL稱重傳感器DBSL系列技術參數
Specification | |
Rated Output | 3.0mV/V ±0.25% |
Zero Balance | ±1% of rated output |
Creep after 30 minutes | ±0.03% of rated output |
Nonlinearity | ±0.03% of rated output |
Hysteresis | ±0.03% of rated output |
Repeatability | ±0.03% of rated output |
Temp. effect on output | ≤0.002% of applied output/oC |
Temp. effect on zero | ≤0.002% of rated output/oC |
Safe Temp. Range | -10oC to + 70oC |
Temp. Compensated | -10oC to + 40oC |
Safe Overload | 1.5 |
Input Impedance | 775 ohm ± 20 ohm / 387 ohm ± 20 ohm (≤20t) |
Output Impedance | 700 ohm ± 5 ohm / 350 ohm ± 5 ohm (≤20t) |
Insulation Resistance | ≥5000 M ohm (50V DC) |
Rated Excitation | 10V DC/AC |
Maximum Excitation | 15V DC/AC |
Cable Length | 6m/10m |
Cable Color Code | Red(+E) Black(-E) Green(+S) White(-S) |
TRANSCELL稱重傳感器DBSL系列介紹
輪輻式傳感器
優質合金鋼材質
高精度
高穩定性
低外形
安裝簡便、快速
適用于試驗機、汽車衡和大型料斗秤等

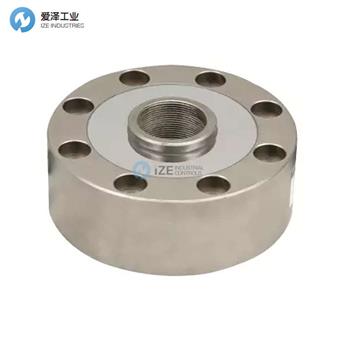

Pancake type load cell
Alloy steel construction
High accuracy
High stability
Easy to install
Low profile
Suitable for testing machine, truck scales
and big bin & hopper scales, etc.
Protected against corrosion by nickelplated treatment
TRANSCELL稱重傳感器DBSL系列其他常用型號：
TRANSCELL DBSL-1T
TRANSCELL DBSL-2T
TRANSCELL DBSL-3T
TRANSCELL DBSL-5T
TRANSCELL DBSL-10T
TRANSCELL DBSL-20T
TRANSCELL DBSL-30T
TRANSCELL DBSL-60T
TRANSCELL DBSL-100T
TRANSCELL Load Cell NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TRANSCELL稱重傳感器DBSL-3T的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TRANSCELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TRANSCELL稱重傳感器DBSL系列DBSL-3T技術參數介紹
