BINMASTER探頭PROCAP I技術參數
GENERAL SPECIFICATIONS | |
Supply: | 24 TO 240 VAC or VDC |
Load: | 4VA |
Ambient Temperature: (Electronics) | -20° F to +145° F (-28° C to +62° C) |
Sensitivity: | 1 picofarad |
Enclosure: PROCAP I | Type 4X, 5, 9, & 12 (HAZ LOC CL II E, F, & G) |
PROCAP I | X Type 4X, 5, 7, 9, & 12 (HAZ LOC CL I C&D; CL II E,F, & G) |
Fuse F1: | 0.4A 250V Time Delay 5 X 20MM BinMaster P/N 328-0064 |
Relay Contact Rating: | DPDT contacts; 10 Amps 250 VAC maximum |
Fail-Safe: | Switch selectable "High" or "Low" level modes. |
Calibration: | Set when probe is uncovered: |
Status Indicator: | Internal LED indicates material in contact with probe. PROCAP I has an external LED also |
Time Delay: | Adjustable up to 30 seconds |
Probe Shield: | Automatically compensates for material buildup on the probe |
Mounting: | 1 1/4” or 3/4" NPT |
Conduit Entries: | 3/4" NPT |
BINMASTER液位指示器PROCAP I系列介紹
Bin-Master PROCAP I 是一種點液位控制器，用于檢測是否存在固體或液體。 PROCAP I 根據電容原理工作，并采用“快速設置”功能來簡化校準。 PROCAP I 包括開關可選的故障安全輸出觸點和“探頭屏蔽”技術，可忽略材料堆積。
安裝后，PROCAP I 的探頭未被覆蓋。 “快速設置”功能允許對設備進行簡單的設置和校準，以實現低、中或高靈敏度設置。 PRO CAP I 具有可調節的時間延遲，用于監控覆蓋或未覆蓋的條件。

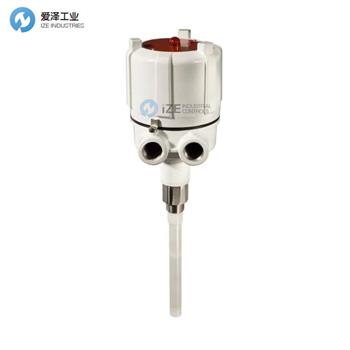

The Bin-Master PROCAP I is a point level control used to detect the presence or absence of solids or liquids. The PROCAP I operates on the capacitance principle and incorporates a "Quick Set" feature to simplify calibration. The PROCAP I includes switch selectable Fail-Safe output contacts and "Probe Shield" technology for ignoring material build up.
Upon installation the PROCAP I is set up with the probe uncovered. The "Quick Set" feature allows simple setup and calibration of the unit to achieve low, medium, or high sensitivity settings. The PRO CAP I has an adjustable time delay for monitoring covered or uncovered conditions.
BINMASTER液位指示器PROCAP I系列其他常用型號：
BINMASTER PROCAP I X
BINMASTER PROCAP I
BINMASTER CAPACITANCE PROBE NEW + ORIGINAL+ ONE YEAR WARRANTY
