DANFOSS恒溫器KPS79 060L312166技術參數
Product details | |
Gross weight | 0.882 Kg |
Net weight | 0.792 Kg |
Volume | 2.429 Liter |
Amb. Temp. Note | 80 °C/176 °F for max 120 min |
Ambient temperature range [°C] [max] | 70 °C |
Ambient temperature range [°C] [min] | -40 °C |
Ambient temperature range [°F] [max] | 158 °F |
Ambient temperature range [°F] [min] | -40 °F |
Charge type | Adsorption |
Connection for pocket or hose | M 18 x 1.5 |
Contact function | SPDT gold |
Contact rating | AC15=4 A, 440 V |
Diff. @ Min. range setting [K] [max] | 16 K |
Diff. @ Min. range setting [K] [min] | 4 K |
Diff. @ Min. range setting[°C] [max] | 16 °C |
Diff. @ Min. range setting[°C] [min] | 4 °C |
Differential type | Adjustable |
Electrical conn. comments | Metal cable gland |
Electrical conn. Male/Female | Female |
Electrical connection | Screwed cable entry |
Electrical connection size | Pg 13.5 |
Electrical connection standard | DIN 40430 |
Electrical spec. standard | EN 60947-5 |
EN 60947 electrical properties | Pollution degree: 3 |
EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2 |
Enclosure rating IP | IP67 |
EU RoHS compliance | Out of scope |
In scope of WEEE and contain batteries | No |
Max. sensor temperature [°C] | 200 °C |
Max. sensor temperature [°F] | 392 °F |
Product accessories | Switches accessories |
Product description | Thermostat |
Product group | Switches and thermostats |
Product Name Description | Thermostat |
Reset function | Auto |
Sensor pocket length min. [in] | 3 in |
Sensor pocket length min. [mm] | 75 mm |
Sensor size (? x L) [in] | 1/2 x 2 1/2 in |
Sensor size (? x L) [mm] | 13 x 63 mm |
Sensor type | Rigid sensor |
Serviceable | No |
Temperature range [°C] [max] | 100 °C |
Temperature range [°C] [min] | 50 °C |
Temperature range [°F] [max] | 212 °F |
Temperature range [°F] [min] | 122 °F |
Type | KPS79 |
UL approval file name | E73170 |
DANFOSS恒溫器KPS79 060L312166產品介紹
恒溫器，KPS79
060L312166
溫度范圍 [°C]: 50 - 100, 復位功能: 自動, 觸點功能: SPDT 金, 傳感器類型: 剛性傳感器, 外殼防護等級 IP: IP67

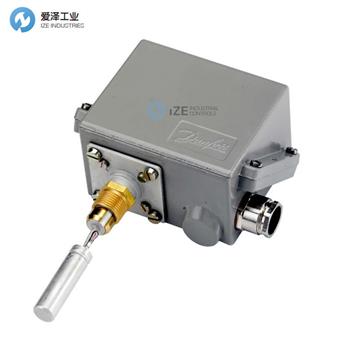

Thermostat, KPS79
060L312166
Temperature range [°C]: 50 - 100, Reset function: Auto, Contact function: SPDT gold, Sensor type: Rigid sensor, Enclosure rating IP: IP67
DANFOSS恒溫器KPS79系列其他常用型號：
DANFOSS KPS79 060L310566
DANFOSS KPS79 060L416366
DANFOSS KPS79 060L417266
DANFOSS KPS79 060L310366
DANFOSS KPS79 060L312266
DANFOSS KPS79 060L313766
DANFOSS KPS79 060L314366
DANFOSS KPS79 060L410266
DANFOSS KPS79 060L417166
DANFOSS KPS79 060L310466
DANFOSS KPS79 060L312166
DANFOSS KPS79 060L312466
DANFOSS KPS79 060L315066
