TECSYSTEM溫度控制器NT538AD技術參數
INFORMATIONS | |
Code: | 1CN0137 |
N. & type inputs: | 8 Pt100 |
Outputs: | 5 relays + RS485 and 4.20mA |
Plus: | UL, RINA, EN50121-5 |

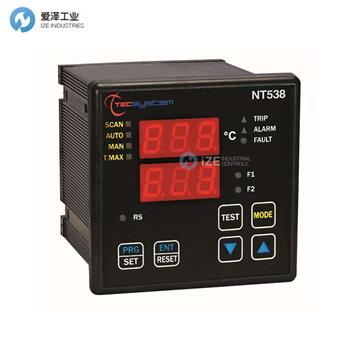

TECSYSTEM溫度控制器NT538 AD介紹
NT538AD 是基于電子微控制器的單元，用于電機和中壓干式/鑄造樹脂變壓器的溫度監控，由于具有 8 個輸入通道和多個編程選項，因此在許多應用中具有極大的使用靈活性。
NT538 AD 采用新技術平臺的布局和優勢（雙顯示、投票功能、具有增強的運算能力和數據管理的新型微控制器）而開發，在單個產品中為用戶提供了輸出：
? 模擬4-20mA
? 數字 RS485 Modbus
它配備了8個Pt100 傳感器輸入，并且由于 2016 新版本的多功能性，還可以使用其他傳感器輸入。
配備5個干接點繼電器輸出、工作異常報警和跳閘、故障以及FAN1和FAN2冷卻系統的驅動。
根據要求，該裝置可提供加拿大和美國市場cULus認證以及用于船舶應用的RINA認證。
所有設備還可以在電子卡上涂上特殊涂層，以抵抗惡劣的天氣條件，特別是高溫和潮濕（熱帶氣候）。
Electronic microcontroller based unit for the temperature monitoring of electric motors and MV dry type/cast resin transformers, the NT538AD, due to the 8 input channels and the multiple programming options, grants a great flexibility of use in many applications.
Developed with layout and advantages of the new technology platform (dual display, VOTING function, new microcontroller with increased operational capacity and data management), the NT538 AD provides the user, in a single product, the outputs:
? Analog 4-20mA
? Digital RS485 Modbus
It is equipped with 8 inputs for Pt100 sensors and thanks to the versatility of the new edition 2016, other sensor inputs are available.
It is equipped with 5 dry contact relay outputs, ALARM and TRIP, FAULT for working anomalies and drive of FAN1 and FAN2 cooling system.
On request, the unit is available with certification for Canadian and American market cULus, as well as RINA for marine applications.
All our units can also be supplied with a special coating on the electronic cards, resistant to difficult weather conditions, particularly characterized by high temperature and humidity (which are in tropical climates).
TECSYSTEM溫度控制器NT538系列其他常用型號：
TECSYSTEM NT538
TECSYSTEM NT538AD
TECSYSTEM NT538-ED16
TECSYSTEM NT538-WEGA
TECSYSTEM NT538ED16 AD
TECSYSTEM TEMPERATURE CONTROLLER NEW + ORIGINAL+ ONE YEAR WARRANTY
