DINEL液位計DLM-35N-22-G1-I-C-E800技術參數

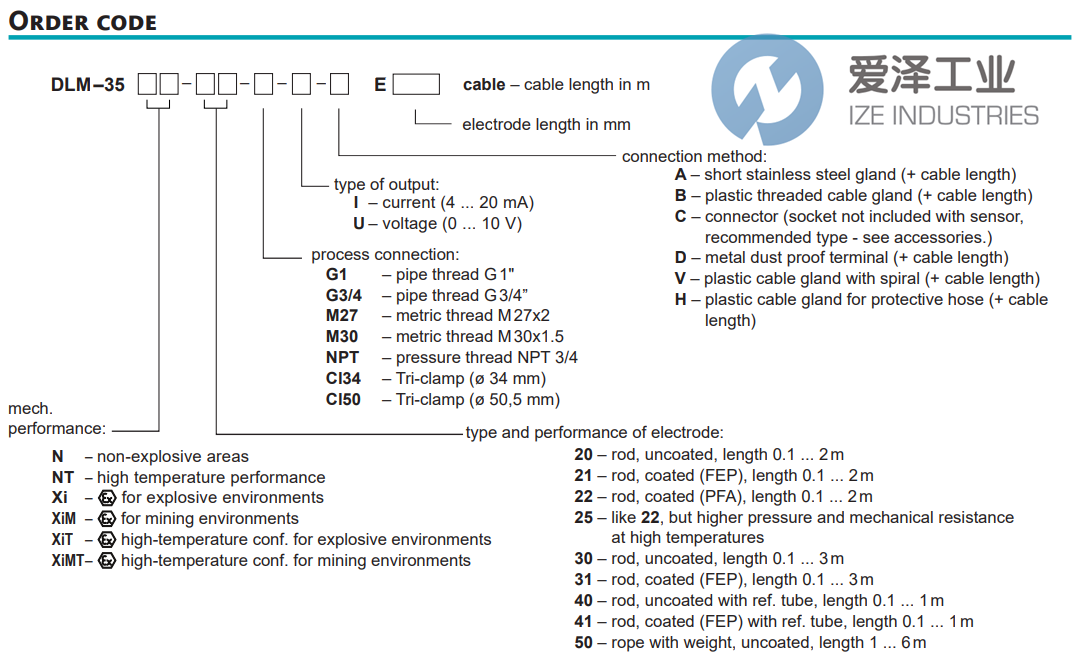

ORDER CODE | DLM-35 |
PERFORMANCE | N = non-explosive areas, exept output R |
ELECTRODE TYPE | 22 = rod, coated (PFA), length 0.1 ... 2 m |
PROCESS CONNECTION | G1 = pipe thread závit G?1" |
OUTPUT TYPE | I = current (4 ... 30 mA) |
CONNECTION METHOD | C = connector (socket not included with sensor, recommended type) |
ELECTRODE | E800 = 800 mm |

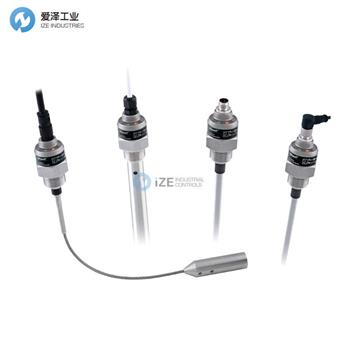

DINEL液位計DLM-35系列介紹
用于液體和散裝固體材料的連續液位測量
? 直接安裝到容器、器皿、盆地、水庫等中。
? 即使在不導電和不同形狀的容器中也可以進行線性測量
? 通過磁筆進行簡單的靈敏度設置
? LED狀態及功能指示
? 通過連接器、電纜密封套或保護導體提供多種電氣連接選擇
? 外殼和電極棒材料為不銹鋼
? Xi、XiT 版本適用于爆炸性區域，XiM、XiMT 版本適用于存在甲烷或煤塵危害風險的采礦環境
For continuos level measurement of liquid and bulk-solid materials
? Direct mounting into containers, vessels, basins, reservoirs, etc.
? Possibility of linear measurements even in non-conductive and differently shaped containers
? Simple sensitivity setting by means of magnetic pen
? LED state and function indication
? Wide choice of electric connection via connectors, cable glands or protective conductor
? Material of housing and rod electrodes from stainless steel
? Xi, XiT versions for usage in explosive areas, or XiM, XiMT versions for mining environments with a risk of hazard by methane or coal dust
DINEL液位計DLM-35系列選型
DINEL液位計DLM-35系列其他常用型號：
DINEL DLM-35N-22-G1-I-C-E1500
DINEL DLM-35N-31-G3/4-I--E1500-K2
DINEL DLM-35N-31-G3/4-I-B-E900-K2
DINEL DLM-35N-20-G1-I-C-E0600
DINEL DLM-35N-20-G1-I-C-E1500
DINEL DLM-35N-40-NPT-I-C-E400
DINEL DLM-35Xi-21-G3/4-I-B-E300
DINEL DLM-35N-22-G1-IC-E500
DINEL DLM-35N-22-G1-I-C-E800
