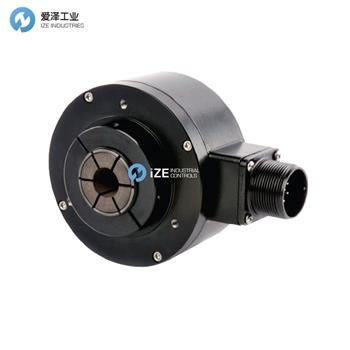

美國DYNAPAR編碼器ISD2510246MN102尺寸圖及選型參數表
美國DYNAPAR編碼器ISD2510246MN102特性描述
ELECTRICAL
Input Power: 5VDC, 7-26VDC
Outputs:
2N2222 Open Collector: 250mA, sink max
7272 Push-Pull: 40mA, sink or source
7272 Differential Line Driver: 40 mA, sink or
source
7273 Open Collector: 40mA, sink max
Frequency Response: 125 kHz (data & index)
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Reverse polarity and
short circuit protected
Termination: 6, 7, or 10 pin MS Connector;
5 or 8 Pin M12 Connector; Cable exit w/seal
Mating Connector:
6 Pin Style MS3106A-14S-6S (MCN-N4)
7 Pin Style MS3106A-16S-1S (MCN-N5)
10 Pin Style MS3106A-18-1S (MCN-N6)
10 Pin, NEMA 4 Style (MCN-N6N4)
12 Pin CW M23 Connector (MCN-C1)
MECHANICAL
Bore Diameter: 3/8”, 10mm, 1/2”, 5/8”,
3/4”. Insulated inserts provided
Mounting Configuration: Hubshaft, direct
mount over shaft with multiple tether options
available
Shaft Speed: 6000 RPM max.
Starting Torque: 6.5 in-oz. maximum (at
25°C)
Bearings: 61805-2RZ
Housing and Cover: Hard Anodized Aluminum.
Also available in Electroless Nickel
finish and Stainless Steel. Tether Available
Shaft Material: 303 stainless steel (passivated)
Disc Material: Mylar
Weight: 20 ounces, typical
ENVIRONMENTAL
Operating Temperature: -40 to 80°C
Storage temperature: -40 to 100°C
Shock: 50G’s for 11msec duration
Vibration: 5 to 2000Hz @ 20 G’s
Humidity: Up to 98% (non-condensing)
Enclosure Rating: IP67
美國DYNAPAR編碼器ISD2510246MN102等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器ISD2510246ME102
DYNAPAR編碼器ISD2510246MN102
DYNAPAR編碼器ISD2510247L80
DYNAPAR編碼器ISD251024DHE102
DYNAPAR編碼器ISD251024DHL102
愛澤工業專業提供美國DYNAPAR編碼器ISD2510246MN102等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器ISD2510246MN102的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.
