SMAR變送器TP301-00-A1.H0/IE/P0/S0/J0/R0技術參數
Code | TP301-00-A1 . H0/IE/P0/S0/J0/R0 |
Series | TP301 = HART? & 4 to 20 mA |
Local Display | 0 = Without Local Display |
Mounting Bracket | 0 = Without Bracket |
Electrical Connection | A = M20 X 1.5 |
Type of Actuator | 1 = Rotary |
SPECIAL OPTIONS | |
Housing | H0 = Aluminum (IP/TYPE) |
Identification Plate | IE |
Painting | P0 = Gray Munsell N 6.5 Polyester |
TAG Plate | J0 = With TAG |
Sensor Mounting | R0 = Full Mounting |
SMAR變送器TP301系列介紹
TP301 是 Smar 設備 HART 系列的一部分。 它是一款用于位置測量的智能變送器。 它可以測量旋轉或直線類型的位移或運動。 數字技術和通信提供了現場和控制室之間的簡單接口以及一些有趣的功能,可大大降低安裝、操作和維護成本。
? 直線或旋轉行走類型;
? 0.1%滿量程;
? 通過本地調整進行位置校準(4 - 20 mA)或通過配置器進行遠程校準;
? 非接觸式位置傳感;
? 可選配液晶顯示;
? 通過 Hart? 通信進行診斷和配置。

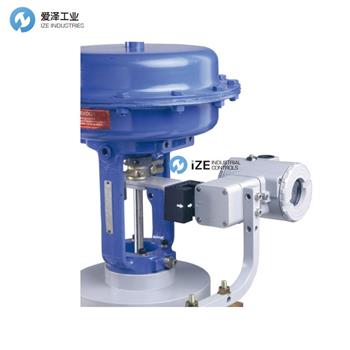

The TP301 is part of the HART family of Smar's devices. It is a smart transmitter for position measurement. It can measure displacement or movement of rotary or linear type. The digital technology and communication provides an easy interface between the field and control room and several interesting features that considerably reduce the installation, operation and maintenance cost.
? Linear or rotary travel type;
? 0.1% F.S.;
? Position calibration (4 - 20 mA) via local adjustment or remote calibration via configurator;
? Non contact position sensing;
? Optional LCD indicator;
? Diagnostics and configuration via Hart? communication.

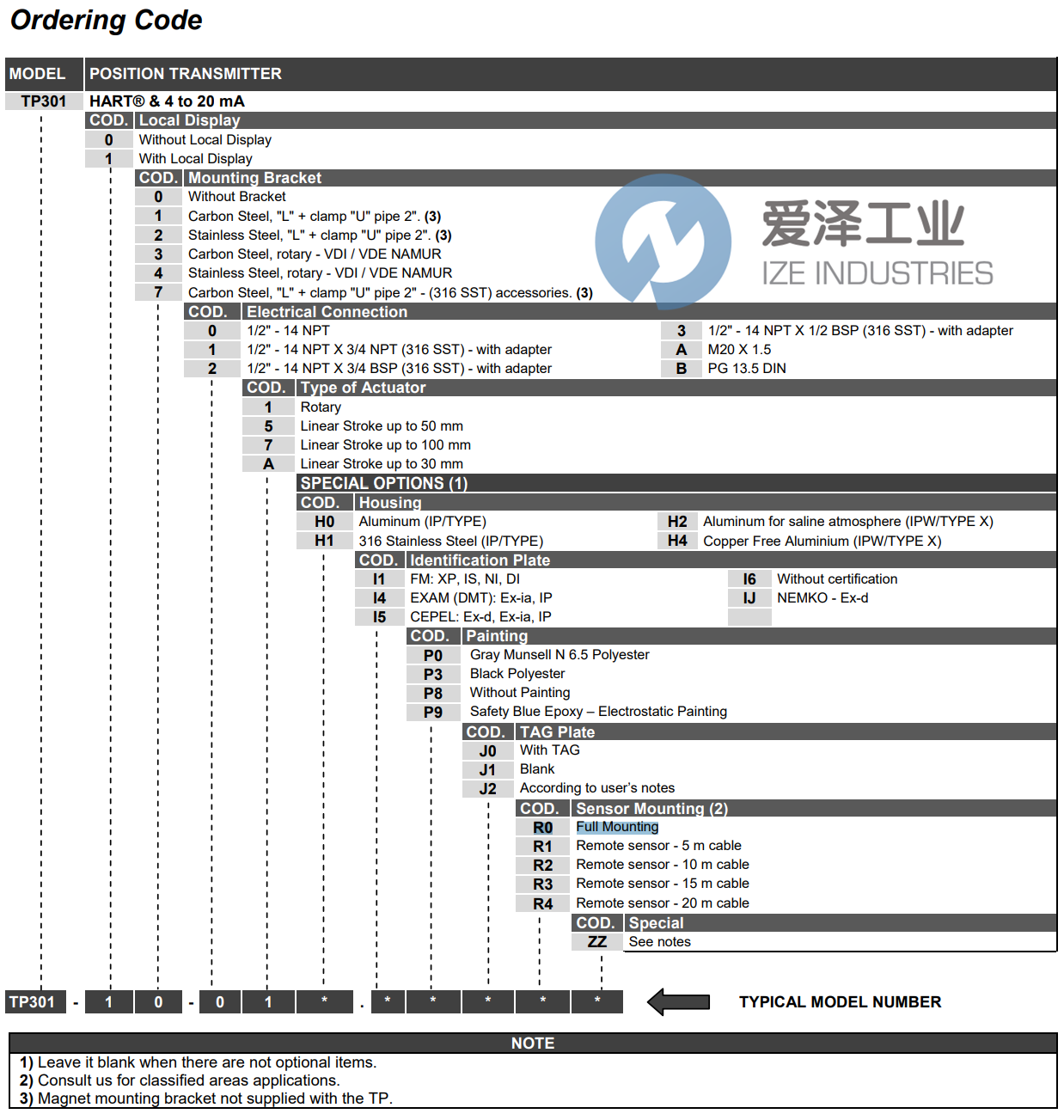

SMAR變送器TP301系列選型
SMAR變送器TP301系列其他常用型號:
SMAR TP301-10-A7/H0/I6/P0/J1/R0
SMAR TP301-00-A1.H0/IE/P0/S0/J0/R0
SMAR TP301-10-05/I4/P0
SMAR TRANSMITTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SMAR變送器TP301-00-A1.H0/IE/P0/S0/J0/R0的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for SMAR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SMAR變送器TP301系列TP301-00-A1.H0/IE/P0/S0/J0/R0技術參數及選型
