TRANDUCER TECHNIQUE稱重傳感器HSW-2K技術參數
Specifications |
| |
Rated Output (R.O.): | 2 mV/V nominal | |
Nonlinearity: | 0.1% of R.O. | |
Hysteresis: | 0.1% of R.O | |
Nonrepeatability: | 0.05% of R.O. | |
Zero Balance: | 1.0% of R.O. | |
Compensated Temp. Range: | 60° to 160°F | |
Safe Temp. Range: | -65° to 200°F | |
Temp. Effect on Output: | 0.005% of Load/°F | |
Temp. Effect on Zero: | 0.005% of R.O./°F | |
Terminal Resistance: | 350 ohms nominal | |
Excitation Voltage: | 10 VDC | |
Safe Overload: | 150% of R.O. | |
Calibration Included: | Compression | |
Optional Calibration: | Tension | |

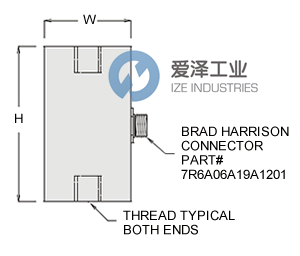

Dimensions in Inches | ||
Model | HSW-2K | |
Capacity lb | 2000 | |
H | 2.5 | |
W SQ. | 1.425 | |
Thread | 3/8-24 UNF | |
Thread Depth | 0.4 | |
Natural Ringing Frequency HZ | 5000 | |
Deflection | 0.003 | |
wt. lb | 1.9 |
TRANDUCER TECHNIQUE稱重傳感器HSW系列介紹
HSW 系列稱重傳感器采用密封設計，可在惡劣的工業環境中使用。所有系列均由 17-4 ph 熱處理不銹鋼制成，并采用不銹鋼模制連接器系統，旨在抵抗沖洗和大多數化學品。配套連接器單獨出售，提供三種不同的電纜長度。與 SW0 系列一樣，HSW 系列提供高精度、低偏轉、快速頻率響應以及拉伸和壓縮之間良好的輸出（毫伏）順應性。

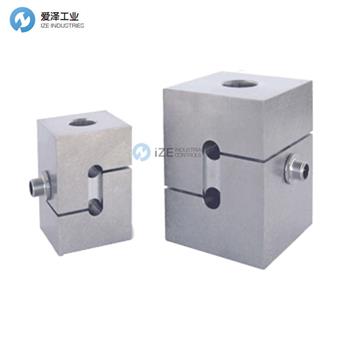

The HSW Series load cell is hermetically sealed for use in harsh industrial environments. All ranges are made from 17-4 ph heat treated stainless steel and incorporate a stainless steel molded connector system designed to resist wash down and most chemicals. The mating connector, sold separately, is available in three different cable lengths. As with our SW0 Series, the HSW Series offers high accuracy, low deflection, fast frequency response, and a good output (millivolt) compliance between tension and compression.
TRANDUCER TECHNIQUE稱重傳感器HSW系列其他常用型號：
TRANDUCER TECHNIQUE HSW-500
TRANDUCER TECHNIQUE HSW-1K
TRANDUCER TECHNIQUE HSW-2K
TRANDUCER TECHNIQUE HSW-3K
TRANDUCER TECHNIQUE HSW-5K
TRANDUCER TECHNIQUE HSW-10K
TRANDUCER TECHNIQUE HSW-20K
TRANDUCER TECHNIQUE HSW-30K
TRANDUCER TECHNIQUE HSW-50K
TRANDUCER TECHNIQUE LOAD CELL NEW + ORIGINAL+ ONE YEAR WARRANTY
