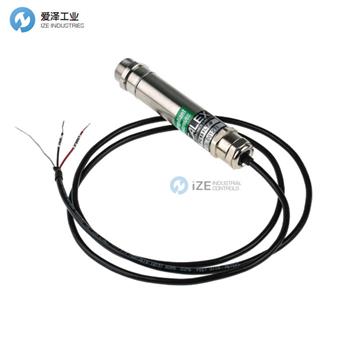

CALEX紅外溫度傳感器PyroCouple系列技術參數
General Specifications | |
Temperature Range | -20°C to 100°C (LT models) |
Optics | Choice of optics for small or large targets at short or long distances |
Output (Measured Temperature) | Two-wire 4-20 mA (-0 models) |
Output (Sensor Body Temperature) | 4-20 mA on power loop (models with output options 1 to 4 only) |
Accuracy | ±1% of reading or ±1oC, whichever is greater |
Repeatability | ± 0.5% of reading or ± 0.5oC, whichever is greater |
Emissivity | Fixed at 0.95 |
Response Time, t90 | 240 ms (90% response) |
Spectral Range | 8 to 14 μm |
Supply Voltage | 24 V DC (28 V DC max.) |
Min. Sensor Voltage | 6 V DC |
Max. Loop Impedance | 900 Ω ( 4-20 mA output) |
Output Impedance | 56 Ω (voltage/thermocouple output) |
CALEX紅外溫度傳感器PyroCouple系列介紹
? 溫度范圍為-20°C 至500°C
? 耐用、堅固的不銹鋼 316 外殼，密封等級為 IP65
? 安裝快速簡便
? 2 線4-20 mA 輸出或4 線電壓/熱電偶輸出
? 為大型或小型目標選擇精密光學器件
? 響應快、穩定性高
? 多種配件
? 固定發射率0.95，用于測量非反射非金屬和涂漆表面（包括涂漆或涂層金屬）
? 符合工業EMC標準
? Temperature ranges from -20°C to 500°C
? Durable, robust stainless steel 316 housing, sealed to IP65
? Quick and easy installation
? 2-wire 4-20 mA output or 4-wire voltage/thermocouple output
? Choice of precision optics for large or small targets
? Fast response with high stability
? Wide range of accessories
? Fixed emissivity 0.95 for measuring non-reflective non-metals, and painted surfaces (including painted or coated metals)
? Conforms to industrial EMC standards

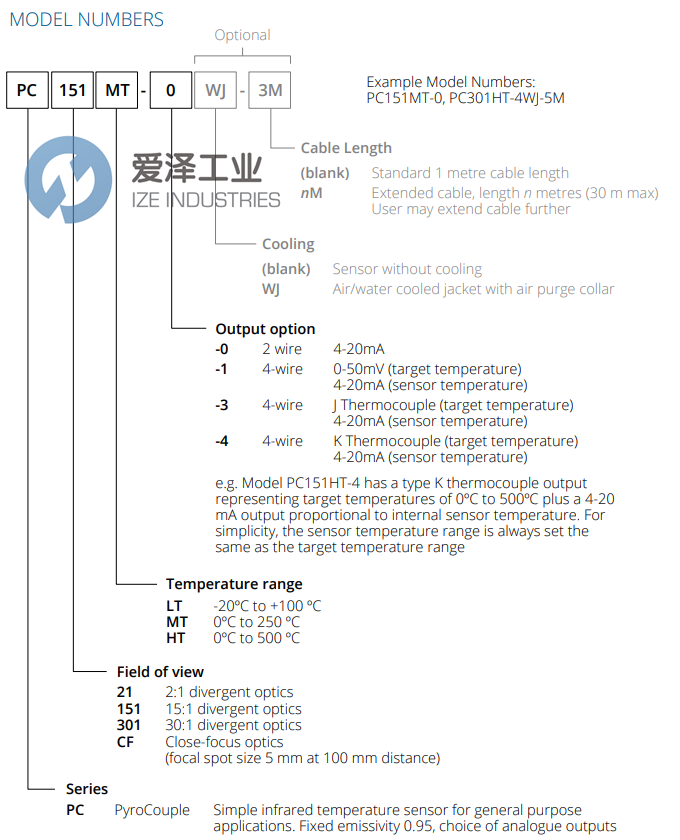

CALEX紅外溫度傳感器PyroCouple系列選型
CALEX紅外溫度傳感器PyroCouple系列其他常用型號：
CALEX PC151LT-0
CALEX PC151MT-0
CALEX PC151HT-0
CALEX PC21LT-0
CALEX PC21MT-0
CALEX PC21MT-4
CALEX PC301MT-0
