KSR KUBLER磁性開關BGU系列技術參數
Specifications | |
Contact | Reed contact |
Contact type | 1 change-over contact |
Switch behaviour | Bistable |
Switching power | |
Model BGU | AC 230 V, 60 VA, 1 A |
Ambient temperature | -50 … +180 °C |
Max. ambient temperature | |
Switch with connection cable from PVC | 90 °C |
Switch with connection cable from LMGSG | 150 °C |
Switch with connection cable from silicone | 180 °C |
Switch model BGU-E with connection cable from PVC, blue | T6 to 85 °C |
Case | Aluminium |
Ingress protection | IP 65 |
Approvals | Ex i |
KSR KUBLER磁性開關BGU系列介紹
BGU 型磁性開關用于檢測旁路液位指示器中的填充液位極限。 它們生成可以饋送到下游信令或控制設備的二進制信號。 雙穩態版本可以存儲信號。
磁性開關通過拉緊帶直接安裝到旁路液位指示器上，或通過滑塊直接安裝到磁性顯示器上。 磁性開關具有不同的認證和 SIL 1 標準。
? 即使在極端環境影響下（例如污垢、濕度、氣體、灰塵、碎屑）也能正常運行
? 緊湊且操作安全的設計
? 使用緊固帶或通過磁性顯示器上的 T 形槽安裝開關
? 介質溫度為-196 ... +380 °C
? 帶簧片觸點、接近開關、微動開關或旋轉磁鐵的版本

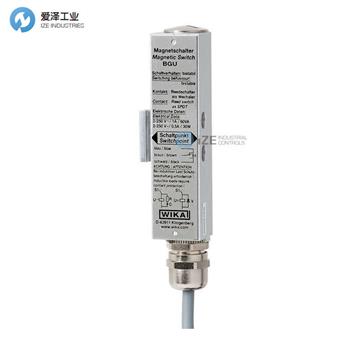

The model BGU magnetic switches serve to detect the limits of fi lling levels in bypass level indicators. They generate a binary signal which can be fed to down-stream signalling or control equipment. Bistable versions enable the storage of signals.
The magnetic switches are mounted directly to the bypass level indicator with a tightening strap or to the magnetic display with sliding blocks. The magnetic switches are available with diff erent approvals and with SIL 1.
? Proper functioning, even under extreme environmental infl uences, e.g.dirt, humidity, gases, dust, chips
? Compact and operationally safe design
? Mounting of the switches with tightening strap or via T-slot at the magnetic display
? Medium temperatures from -196 ... +380 °C
? Versions with reed contact, proximity switch, micro switch or rotation magnet
KSR KUBLER磁性開關BGU系列其他常用型號：
KSR KUBLER BGU
KSR KUBLER BGU-E
KSR KUBLER BGU-A
KSR KUBLER BGU-1 Sil
KSR KUBLER BGU-S
KSR KUBLER BGU-V
KSR KUBLER BGU-V-E
KSR KUBLER BGU-M12
KSR KUBLER BGU-E-M12
Magnetic switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于KSR KUBLER磁性開關BGU-1 Sil的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for KSR KUBLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
KSR KUBLER磁性開關BGU系列BGU-1 Sil技術參數及介紹
