API液位開關TLA系列技術參數
Technical specifications | |
Output signal: | |
a) Current: | 7mA/14mA |
Repetition of actuation level: | Vertical installation: 3 mm |
Power supply voltage: | 18 – 30 V DC |
Power consumption: | less than 0,5 W |
Ambient operating temperature: | -40°C to +85°C, (-55°C to +85°C), for IS -40°C to +57°C |
Product temperature: | -55°C to +100°C |
Length of rod: | Length on request |
Relative ambient humidity: | up to 100% at 50°C |
Response time: | 1 sec. subject to actual programming |
Protection rate: | IP67 |
MTBF: | 50000 hrs |
Housing type: | Stainless steel AISI 316L |
Wetted parts: | Stainless steel AISI 316L (others on request) |
Process connection: | |
a) Flange: | From DN 40 |
Ex Protection: | Ex ia IIC T5(T6) |

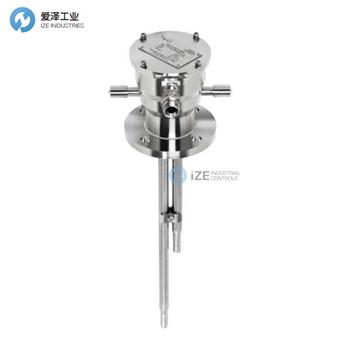

API液位開關TLA系列介紹
TLA用于檢測儲罐中的高液位 (95%) 和高高液位 (98%)。 TLA安裝在油輪、天然氣運輸船、浮式儲存庫、FSO、FPSO、陸上石油、石油產品和液化氣儲罐的甲板上。 TLA基于與 UTS相同的聲波專利技術，具有高水平的準確性、可靠性和可定制性。 TLA是一種兩點液位開關，其警報級別由桿的長度定義，可根據要求生產。 內置測試按鈕用于在填充液體之前根據船級社的要求執行功能測試。
The TLA is used for the detection of high (95%) and high-high (98%) levels in tanks. The TLA is installed on the deck of tankers, gas carriers, floating storages, FSO, FPSO, onshore storage tanks for oil, petroleum products and liquefied gas. Build on the same patented acoustic wave technology as UTS, TLA features a high level of accuracy, reliability and customizability. The TLA represents a two-point level switch with alarm levels defined by the length of rods, which are produced on request. Built-in test buttons are used for performing a functionality test before filling the liquid, in accordance with the requirements of classification societies.
API液位開關TLA系列其他常用型號：
API TLA-F50-0-0293-0523-C1
API TLA-F50-0-0606-0411-C1-D-M24
API Tank Level Alarm NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于API液位開關TLA-F50-0-0293-0523-C1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for API products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
API液位開關TLA系列TLA-F50-0-0293-0523-C1技術參數
