VERNIER氣壓傳感器GPS-BTA技術參數
Specifications | |
Pressure range | 0 to 210 kPa (0 to 2.1 atm or 0 to 1600 mmHg) |
Maximum pressure that the sensor can tolerate without permanent damage | 405 kPa |
Accuracy using factory calibration | ±4 kPa |
Accuracy using one-point custom calibration at atmosphere | ±3 kPa |
Response time | 10 ms |
Internal Volume | 0.8 mL |
VERNIER氣壓傳感器介紹
The Vernier Gas Pressure Sensor is used to monitor pressure changes in gas-law experiments in chemistry, biology, and physics.

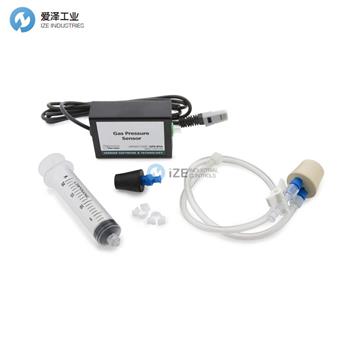

What's Included
two tapered valve connectors
one tapered valve connector inserted into a No. 1 stopper
one two-way valve
two Luer-lock connectors connected to either end of a piece of plastic tubing
one 20 mL syringe
two transpiration tubing clamps
How the Sensor Works
The sensor in this unit has a membrane that flexes as pressure changes. This sensor is arranged to measure absolute pressure. One side of the membrane is a vacuum, while the other side is open to the atmosphere. The sensor produces an output voltage that varies in a linear way with absolute pressure. It includes special circuitry to minimize errors caused by changes in temperature.
Vernier 氣體壓力傳感器用于監測化學、生物學和物理氣體定律實驗中的壓力變化。
包含
兩個錐形閥門連接器
一個插入1號塞子的錐形閥門連接器
二通閥1個
連接到塑料管兩端的兩個魯爾鎖連接器
20 mL 注射器一支
兩個蒸發管夾
傳感器的工作原理
該裝置中的傳感器有一個薄膜，可隨著壓力變化而彎曲。 該傳感器被布置用于測量絕對壓力。 膜的一側是真空，而另一側對大氣開放。 傳感器產生的輸出電壓隨絕對壓力呈線性變化。 它包括特殊電路，可最大限度地減少溫度變化引起的錯誤。
VERNIER氣壓傳感器其他常用型號：
VERNIER GPS-BTA
VERNIER GDX-WRP
VERNIER GDX-GP
VERNIER PS400-BTA
VERNIER air pressure sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
