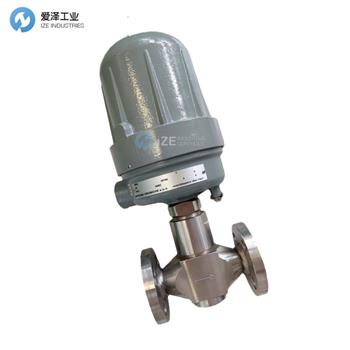

OFFICINE OROBICHE電磁閥CV50.A.2.M14.WP參數介紹
Model | CV25 |
A | Body in carbon steel |
2 | Float in Stainless Steel AISI 316 |
M14 | 250 V a. c. 1A 24 V d.c. 3A sigil. in gas inerte |
WP | Waterproof Enclosure |
OFFICINE OROBICHE電磁閥介紹
DESCRIPTION
Body valve flow switch for water, for max. or min. flow alarms, with a single switching unit, with output on SPDT switch.
TECHNICAL DATA
horizontal mounting
single switching unit (on request, two SPDT switches with simultaneous action can be supplied)
Set point can be adjusted to between 20 ÷ 50% of max. flow rate (Q)
Fixed differential max. 30% of max. flow rate (Q)
Accuracy: ± 5% of max. flow rate (Q)
max. temperature 135?C
max. pressure 10 Bar or 50 Bar with CV BP version
max. pressure drop 4000 mm H2O
accuracy of flow indication ± 15% of f.s. (only on mod. CVM)
special versions for viscous fluids
描述
用于水的閥體流量開關,帶有單個開關單元,在 SPDT 開關上輸出。
技術數據
水平安裝
單個開關單元(根據要求,可提供兩個同時動作的 SPDT 開關)
設定點可調整至最大值的 20 ÷ 50% 之間。 流量(Q)
最大固定差速 最大的 30% 流量(Q)
準確度:最大的 ± 5% 流量(Q)
最大溫度135℃
最大CV BP 版本壓力 10 Bar 或 50 Bar
最大壓降 4000 mm H2O
流量指示精度 ± 15% of f.s. (僅適用于 CVM 型號)
適用于粘性流體的特殊版本
OFFICINE OROBICHE電磁閥其他常用型號:
OFFICINE OROBICHE CV50.A.2.M14.WP
OFFICINE OROBICHE CV25-A-2-M2-WP
OFFICINE OROBICHE CV25-A-2-M3-WP
OFFICINE OROBICHE CV25-A-2-M4-WP
OFFICINE OROBICHE CV25-A-2-M6-WP
OFFICINE OROBICHE CV25-A-2-VD-WP
OFFICINE OROBICHE CV25-A-2-PNA-WP
OFFICINE OROBICHE The electromagnetic valv NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于OFFICINE OROBICHE電磁閥CV50.A.2.M14.WP的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for OFFICINE OROBICHE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
OFFICINE OROBICHE電磁閥CV50.A.2.M14.WP技術參數
