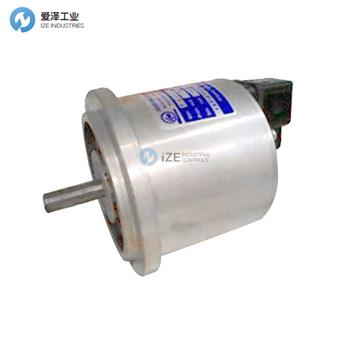

ICM MOTORI傳感器80/15/B01技術參數
TYPE | TRANSDUCER 80/15/B01 AC-AC |
Model | 80/15/B01 |
Power supply voltage | 24 VAC |
Current consumption | 0.3A |
max. output voltage | 24 VAC |
Max. output current | 0.002A |
Rotation angle | 45° |
Weight | 1.3 Kg |
ICM MOTORI傳感器80/15/B01產品介紹
80/15/B01 型位置傳感器可用于需要將 45° 機械角運動（傳感器軸的旋轉）轉換為 0-24 VAC 電信號的任何應用。
轉子上沒有滑動部件，例如電刷或電線，使得這些設備無需任何類型的維護。80/15/B01 傳感器尺寸非常小，并采用特殊法蘭制成，易于組裝。該設備的結構和帶有電纜密封套的接線盒可保護傳感器免受灰塵或外部材料的滲透，可根據要求提供 IP 44 防護等級、IP 55 防護等級。
The 80/15/B01 type position transducer can be used in any application where there is a need to transform a mechanical angular movement of 45° (rotation of the transducer shaft) into an electrical signal 0-24 VAC.
The absolute absence of sliding parts, such as brushes or wires, applied to the rotor, make these devices completely free from any type of maintenance. The 80/15/B01 transducer is very small in size and has been made with a special flange which allows for easy assembly. The construction of the device and the terminal board with cable gland protect the transducer from any infiltration of dust or external materials, IP 44 protection, IP 55 protection on request.
ICM MOTORI傳感器80系列其他常用型號：
ICM MOTORI 80/15/B01
ICM MOTORI 80/15/B01C
ICM MOTORI 80/EA/02
ICM MOTORI 80/EA/021
ICM MOTORI POSITION TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
