RO/SE恒溫器TH-H技術參數
Hysteresis | 7K (+/- 3K tolerance) |
Dimension | 60x33x42mm |
Mounting | Clip for DIN rail 35mm and 15mm |
Protection type | IP 30 |
Connection | 2-pole terminal |
EMC | EN55014-1-2; EN61000-3-2; EN61000-3-3 |
Max. switching capacity | AC 250 V, 10 (2) A |
Contact | Bimetal: TH-H: normally Closed (NC) |
Operating / Storage temperature | -45 .... +80°C (-49 ... +176°F) |
service life | > 100,000 cycles |
Setting range | 0...60°C / -20...+40°C / -25...+35°C / +20...+80°C |
RO/SE恒溫器TH-H產品介紹
小型恒溫器特別適合在開關柜和/或其他封閉外殼中使用。
“TH-H”型可用作加熱器控制或開關信號設計。

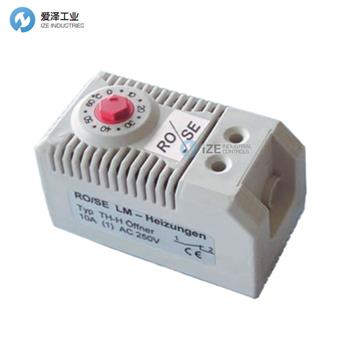

The small thermostats are particularly suitable for the use in switchgear cabinets and/or into other closed housings.
Type "TH-H", finds employment as control for heaters or for switching signal devised.
RO/SE恒溫器TH系列其他常用型號：
RO/SE TH-H
RO/SE TH-K
RO/SE Thermostats NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RO/SE恒溫器TH-H的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RO/SE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
RO/SE恒溫器TH-H技術參數及介紹
