GOOCH HOUSEGO開關QS系列技術參數
General Specifications | |
Interaction material: | Fused Silica |
Wavelength: | 1064nm |
AR coating reflectivity: | < 0.2% per surface |
Damage threshold: | > 1GWcm-2 |
Transmission (single pass): | > 99.6% |
Static insertion loss: | ≤ 6% at 50W laser power |
VSWR: | < 1.2:1 (<1.4:1 at 50W RF power) |
RF power rating (maximum): | 50W cw for Compressional acoustic mode |
Water flow rate: | > 190cc / minute |
Water-cooling channel material: | Aluminium (de-ionised water is strongly recommended) |
Recommended water temperature: | +22oC to +32oC |
Thermal switch cut-off: | +55oC +/- 5oC |
Storage temperature: | 0 to +50degC |
GOOCH HOUSEGO開關QS系列介紹
水冷聲光 Q 開關，用于高功率燈或二極管泵浦 Nd:YAG 激光器。
該 Q 開關將熔融石英與高質量光學精加工和內部抗反射涂層相結合，具有很低的插入損耗和高損傷閾值。 其設計特性和可重復的制造工藝可實現高達 100W 的射頻功率（對于剪切模式選項）。
標準選項包括射頻頻率（24 至 68MHz）、有源孔徑（1.6 – 8.0mm）、聲學模式（線性偏振的壓縮、隨機偏振的剪切）的選擇。 可根據要求提供定制選項，包括替代機械設計和波長。

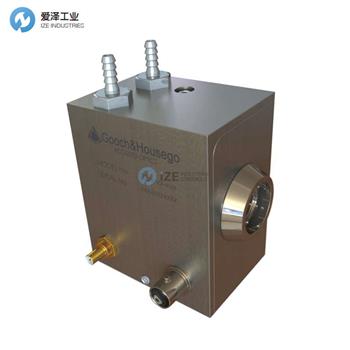

A water-cooled Acousto-Optic Q-Switch for use in high power lamp or diode pumped Nd:YAG lasers.
Combining top grade fused silica with high quality optical finishing and in-house anti-reflection coatings, this Q-Switch exhibits very low insertion loss and high damage threshold. It’s design characteristics and repeatable manufacturing process enable RF powers of up to 100W (for shear mode options).
Standard options include a choice of RF frequency (24 to 68MHz), active apertures (1.6 – 8.0mm), acoustic modes (compressional for linear polarisation, shear for random polarisation). Custom options, including alternative mechanical designs & wavelengths are available upon request.

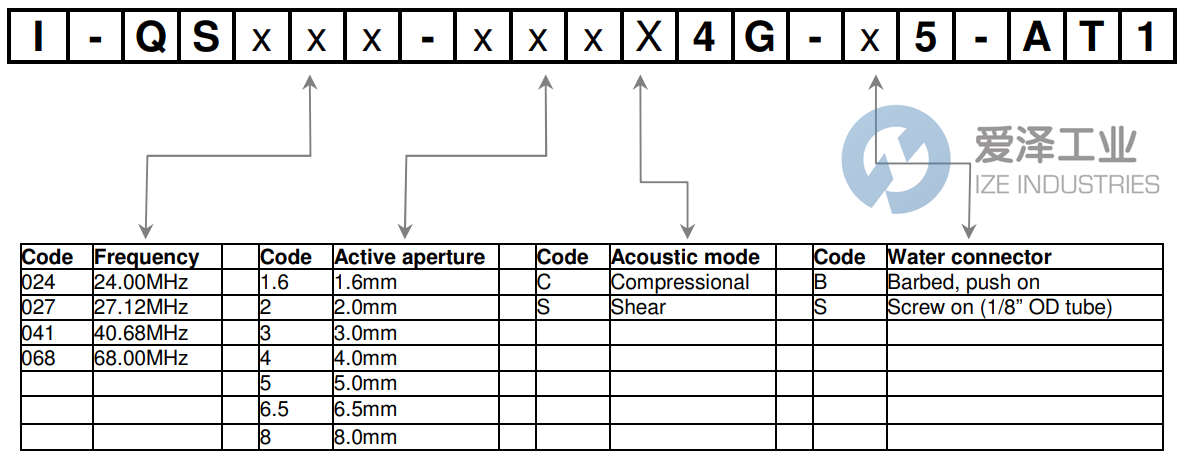

GOOCH HOUSEGO開關QS系列選型
GOOCH HOUSEGO開關QS系列其他常用型號：
GOOCH HOUSEGO I-QS027-4S4G-B5-AT1
GOOCH HOUSEGO I-QS027-4C10G-B5-LL4
GOOCH HOUSEGO I-QS027-4S4G-N5-ST1
GOOCH HOUSEGO I-QS027-4D10G-B5
GOOCH HOUSEGO I-QS027-4S4V2-x5-ST1
GOOCH HOUSEGO I-QS027-5S4G-U5-ST1
GOOCH HOUSEGO I-QS027-4S4G-U5-ST1
GOOCH HOUSEGO I-QS027-4S4G-B5-RS5
GOOCH HOUSEGO I-QS027-4S4G-B5
GOOCH HOUSEGO Q-Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GOOCH HOUSEGO開關I-QS027-4S4G-B5的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GOOCH HOUSEGO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GOOCH HOUSEGO開關QS系列I-QS027-4S4G-B5技術參數及選型
