SGM LEKTRA液位變送器METER系列技術參數
Housing/sensor material | PC or Al / PP wetted part (only PVDF for ATEX certified vers.) |
Mechanical installation | 2” GAS M (PP flange DN80 opt.) |
Protection degree | IP67/IP68 (Sensor) |
Electrical connection | Internal push connectors |
Working temperature | -20 ÷ +60°C |
Pressure | from 0,5 to 1,5 bar (absolute) |
Power supply | 12Vdc / 20÷30Vdc |
Power consumption | 0,6W (2-wires) – 1,5W (4-wires) |
Analog output | 4…20mA, max 750ohm |
Relays output | (4-wire only) n°2 3A 230Vac (n.o.) |
Digital communication | MUDBUS RTU for 4-wire vers. ; |
Max measure range | max 0.25 ÷ 6m |
Blind distance | 0,25m (6m versions) / 0,40m (10m versions) |
Temperature compensation | digital from -30 to 80°C |
Accuracy | ±0,2% (of the measured distance) not better than ±3mm. |
Resolution | 1mm. |
Calibration | 4 buttons or via HART / MODBUS RTU / BLUETOOTH |
Warm-up | 5 minutes typical |
LCD Display | Plug-in display/keyboard 4 buttons matrix LCD |
Ex-proof | ATEX II 1/2G Ex ia/db IIC T4 Ga/Gb ; |

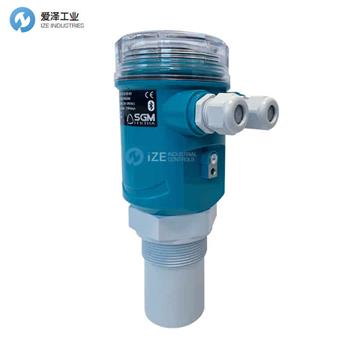

SGM LEKTRA液位變送器METER系列介紹
范圍 0,25 ÷ 6 m / 0,4 ÷ 10 m
IP67
適用于液體和固體
MODBUS總線
電源20÷30Vdc;12 伏直流電
輸出 4 ÷ 20 mA(2 線版本);4 ÷ 20 mA + 2 個繼電器組(4 線版本)
防爆
通過智能手機遠程控制
Range 0,25 ÷ 6 m / 0,4 ÷ 10 m
IP67
Suitable for liquids and solids
MODBUS
Power supply 20÷30Vdc; 12 Vdc
Output 4 ÷ 20 mA (2 wire version); 4 ÷ 20 mA + 2 relays set (4 wire version)
ATEX
Remote control via Smartphone

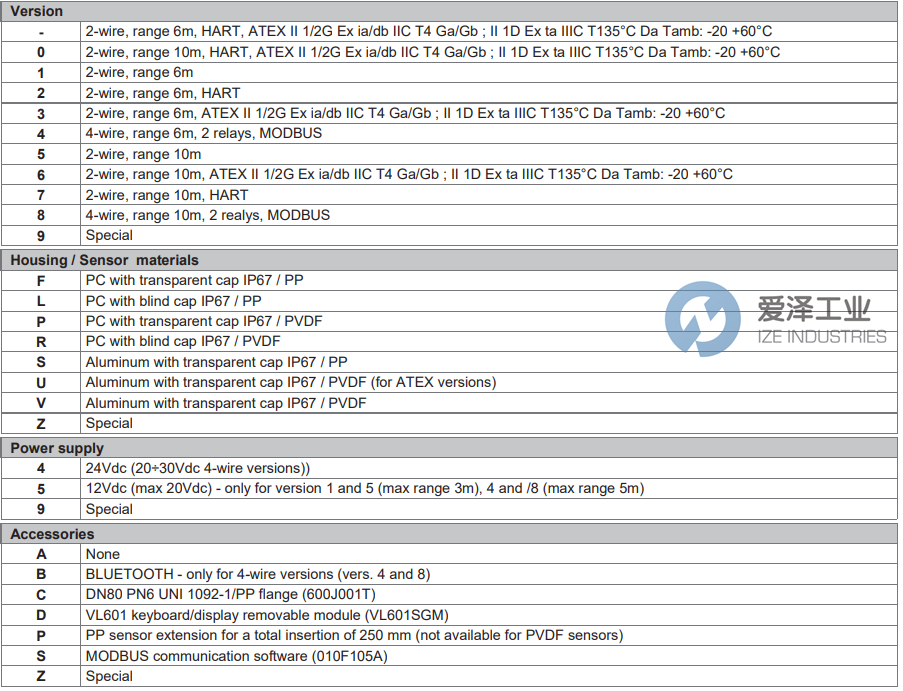

SGM LEKTRA液位變送器METER系列選型
SGM LEKTRA液位變送器METER系列其他常用型號:
SGM LEKTRA METER1F4A
SGM LEKTRA METER1L4A
SGM LEKTRA LEVEL TRANSMITTER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SGM LEKTRA液位變送器METER1L4A的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for SGM LEKTRA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SGM LEKTRA液位變送器METER系列METER1L4A技術參數及選型
