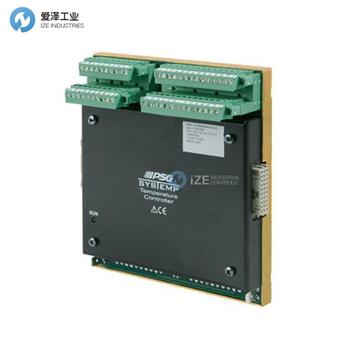

PSG控制器ETR 132 II E規格描述
GENERAL DATA | |
Number of control zones | 32 |
Rated voltage | 230VAC | 24VDC |
Power consumption | Max. 25 VA for 24VDC |
Fuse protection | 2 A T | 4 A T |
Status display | LEDs |
Dimensions | (HxBxT in mm) 140 | 155 x 125 x 75 (G), 140 | 155 x 125 x 30 (E) |
Mounting | DIN rail (DIN EN 50022) |
Housing | Metal |
Weight | 1.2 kg (G), 0.7 kg (E) |
Operating temperature | 0...55 °C |
Connections | Screw terminals |
Ingress protection | IP20; D-Sub without PVC cover: IP00 |
Addressing mode | DIP switch |
Standards | CE, EN 61010 |
Data backup | Power failure safe in EEPROM |
DATA INTERFACES | |
RS485 | Series; protocols: PSGII, Modbus RTU | Baud rate: 1200 - 19200 baud |
CAN | Option; protocols: CAN Bus Standard (2.0A), Canopen (Profiles CiA 401 V2.01) |
Profibus DP | Option; |
TEMPERATURE MEASURING INPUTS | |
Quantity | 8 per unit (G,E) |
Resolution | 14 Bit |
Type | Thermocouple type J,K,L | resistance thermometer Pt100 | U | I |
Range | -35...500°C, -35...900°C, -35...500 | -35...500°C | 0/2...10 V | 0/4...20 mA |
Reference junction | Internal |
Input resistance | > 47 kOhm | - 10 kOhm | 50 Ohm |
Measuring precision | < 1 K | < 1 K | - | - |
Monitoring | Sensor break, sensor polarity reversal, sensor short-circuit | sensor break | line break for 2.10 V | line break for 4.20 mA |
HEATING CURRENT MEASURING INPUTS | |
Quantity | (Optional) 8 per unit (G,E), three-phase, via current transformer |
Measurement signal | 42 mV/A |
DIGITAL INPUTS | |
Quantity | 2 (G) |
Electrical data | 30 VDC, approx. 12 mA |
Function | Function adjustable |
DIGITAL OUTPUTS | |
Quantity | 8/16/24/32 (G,E) | 3 (G) |
Type | Optical coupler |
Electrical data | 30 VDC, 60 mA, inductive load only with free-wheeling switchable diode |
Function | Control outputs| Alarm outputs |
PSG控制器ETR 132 II E產品介紹
PRODUCT DESCRIPTION
Microprocessor control system for up to 32 three-position control zones
Modular structure: one base unit ETR 132 II G and up to three expansion units ETR 132 II E with 8 control zones each
Simple and unproblematic installation and start-up
Very good price-performance ratio due to modular structure
Flexibility through large array of functions
Production reliability through constant process monitoring
Easy and unproblematic installation due to installation friendly system structure
System expandability through numerous peripheral components
Minimal configuration effort due to free of charge, customer-specific configuration settings
產品描述
多達32個三位控制區的微處理器控制系統
模塊化結構：一個基本單元ETR 132 II G和最多三個擴展單元ETR 132 II E，每個擴展單元有8個控制區
簡單且無問題的安裝和啟動
由于模塊化結構，性價比非常高
通過大量功能實現靈活性
通過持續的過程監控實現生產可靠性
由于安裝簡單的系統結構，安裝簡單且沒有問題
通過眾多外圍組件實現系統可擴展性
由于免費的、客戶特定的配置設置，配置工作量最少
PSG控制器部分型號：
PSG ETR 132 II G
PSG ETR 132 NET G
PSG ETR 132 PNIO G
PSG ETR 132 II E
PSG ETR 112
PSG ETR 112 NET
PSG ETR 112 PNIO
PSG ETS 132 II
PSG ETS 132 NET
