CAL溫度控制器CAL 9900系列技術參數
Specification | |
Product Category: | Single Loop controller |
Dimensions and size: | 48mm x 48mm x 114mm (HxWxD), 1/16 DIN |
Terminal Type: | 11 Pins base (only for 2 outputs version) |
Primary Input Type: | Thermocouple: B, E, J, K, L, N, R, S, T. PT100 : 2/3 wire. Linear: 0 to 50mV, 0/4 to 20mV |
Other Inputs: | None |
Output Function: | Heat, Cool, Alarm |
Output Type: | Relay (SP1 5A SPDT, SP2 3A SPDT), SSd (5V, 25mA). |
Max. Number of Outputs: | 2 |
Control Type: | PID heat only, PID heat cool , ON/OFF |
Power Supply: | 24 or 115/230Vac, 50–60Hz +/- 15% maximum permitted fluctuation |
Communications: | None |
Panel Sealing: | IP54 |
Certifications: | CE, UL |
CAL溫度控制器CAL 9900系列介紹及選型

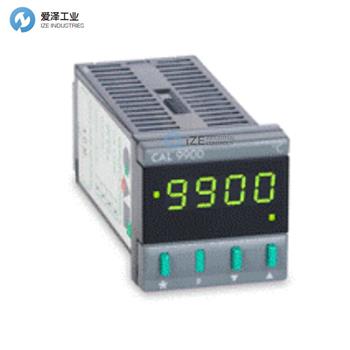

CAL 9900 1/16 DIN Temperature ControllerCAL Controls
9900
At time of launch, CAL9900 was a pioneering 1/16DIN controller and continues to be used in many temperature control applications to this day.
Benefits & Features
1/16 DIN (48 x 48mm)
Supports Heat-cool strategy
Auto-tune or Push-to-tune at setpoint
5A output relay on main control output
Dual output versions can plug into 11-pin base
CAL 9900 1/16 DIN 溫度控制器CAL 控件
9900
在推出時，CAL9900是一款開創性的1/16DIN控制器，至今仍在許多溫度控制中應用。
優點和特點
1/16 DIN (48 x 48mm)
支持Heat-cool策略
在設定點自動調諧或一鍵調諧
主控輸出5A輸出繼電器
雙輸出版本可插入11針底座
CAL溫度控制器其他常用型號：
CAL CAL 99221C
CAL Temperature Controller NEW + ORIGINAL+ ONE YEAR WARRANTY
