CALEDON CONTROL控制器CB17-2-PAN技術參數
Specifications | |
Supply voltage | 95V to 255V universal power supply, internally protected with non-resettable thermal cut out |
Power consumption | 3VA |
Ambient temperature | 0-55°C |
Input signal | 0-5V, 0-10V, 1-5V, 2-10V, 0-20mA, 4-20mA, link selectable |
Output signal | Logic signal, 10V minimum voltage, 20mA maximum current, suitable for driving up to three Caledon thyristor trigger modules, or a 3-phase Caledon thyristor stack. The instrument may also be used to drive solid state relays, provided that the drive requirements are met |
Manual Operation | By means of front panel potentiometer. Manual operation selected by link on the terminals |
Burst fire Cycle Time | Minimum 0.3s, maximum 20s at 50% duty cycle. |
Front panel indicators | Green LED power on |
Safety Standards | Complies with European Low Voltage Directive and major international standards. |
EMC Standards | Complies with the European EMC Directive for operation in an industrial environmen |

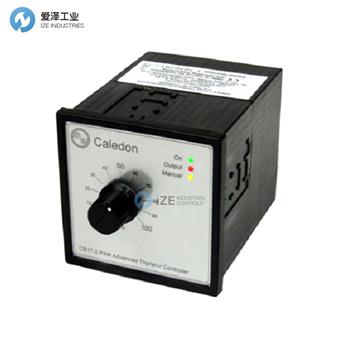

CALEDON CONTROL控制器CB17-2-PAN產品介紹
該控制器適用于具有邏輯輸入的晶閘管組或我們的CB18-2觸發器，以實現單周期突發觸發模式或標準突發觸發模式的操作?？刂破鹘邮苣M控制信號。前置電位器可用于限制負載的功率或者手動控制功率。
通用電源。
電位器用于在需要時手動控制負載功率。
可以用于三相負載的三相控制或兩相控制。
先進的單周期控制算法適用于三線負載連接，最小化諧波，消除直流分量。當用于兩相控制時保持精確的負載平衡。
還提供DIN導軌安裝版本。
A controller suitable for use with logic input thyristor stacks or our CB18-2 triggers to enable operation in single cycle burst fire mode or standard burst fire mode. The controller accepts an analogue control signal. The front mounted potentiometer may be used to limit the power delivered to the load or to control the power manually.
Universal power supply.
Potentiometer for manual control of load power when required.
May be used with 3-leg control or 2-leg control of a 3-phase load.
Advanced single cycle control algorithm for use with 3-wire load connection, minimises harmonics, and eliminates DC components. Maintains accurate load balance when used with 2-leg control.
DIN rail mounted version also available
CALEDON CONTROL控制器其他常用型號：
CALEDON CONTROL CB17-2-PAN
CALEDON CONTROL CB17-2-DIN
CALEDON CONTROL CB17-2-SYN
