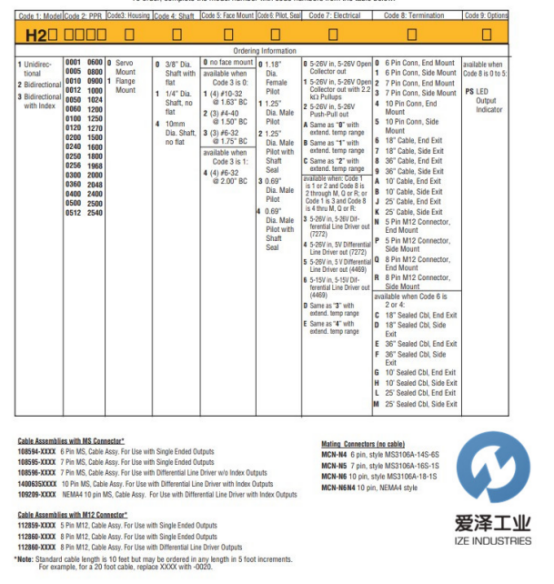

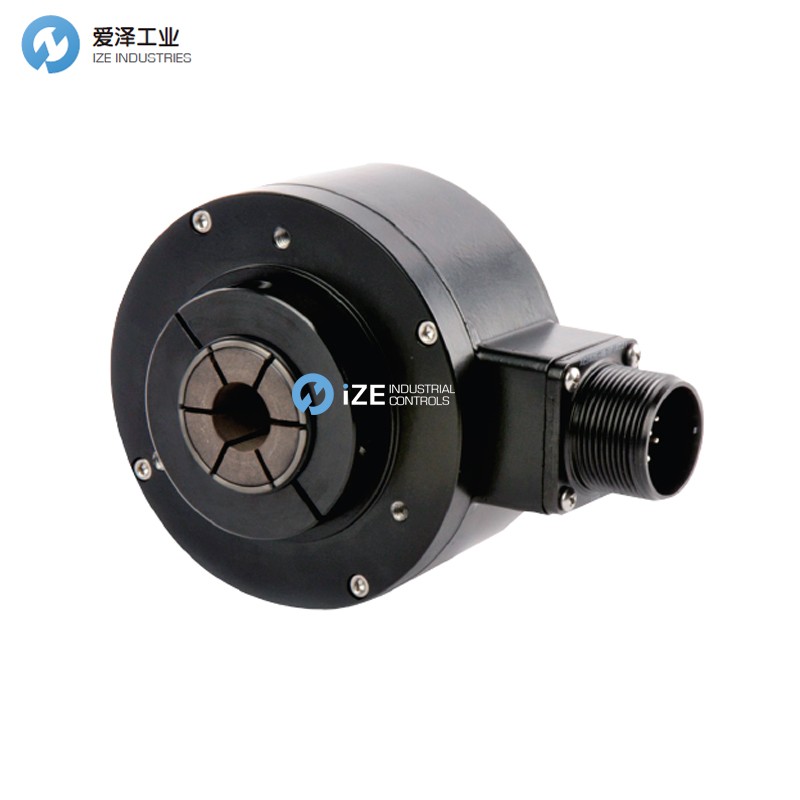

美國DYNAPAR編碼器 示例H23204802253F選型參數表
美國DYNAPAR編碼器H23系列產品參數
SPECIFICATIONS
Key Features
INCREMENTAL ENCODERS
SERIES H20 Dynapar? brand
Shafted Encoder
STANDARD OPERATING CHARACTERISTICS
Code: Incremental, Optical
Resolution: 1 to 2540 PPR (pulses/revolution)
Accuracy: (worst case any edge to any other edge)
<1024 PPR (metal disk): ±7.5 arc-min.
≥1024 PPR (glass disk): ±2.5 arc-min.
Format: Two channel quadrature (AB) with optional
Index (Z) and complementary outputs
Phase Sense: A leads B for CCW shaft rotation as
viewed from the shaft end of the encoder
Quadrature Phasing: 90° ± 22.5° electrical
Symmetry: 180° ± 18° electrical
Index: 180° ± 18° electrical (gated with B low)
Waveforms: Squarewave with rise and fall times
less than 1 microsecond into a load capacitance
of 1000 pf
ELECTRICAL
Input Power:
5 to 26 VDC at 80 mA max., not including output
loads
Outputs:
7273 Open Collector: 40mA, sink max
7272 Push-Pull: 40mA, sink or source
7272 Differential Line Driver: 40 mA, sink or
source
4469 Differential Line Driver: 100mA, sink or
source
Frequency Response: 100 kHz min. (index
75 kHz min. for extended temperature range)
Noise Immunity: Tested to EN61326-1
Electrical Immunity: Reverse polarity and short
circuit protected
Termination: MS Connector, M12 Connector,Cable Exit
Mating Connector:
6 pin, style MS3106A-14S-6S (MCN-N4);
7 pin, style MS3106A-16S-1S (MCN-N5);
10 pin, style MS3106A-18-1S (MCN-N6)
10 pin, NEMA4 style (MCN-N6N4)
Cable w/ 5 pin M12 Connector (112859-xxxx)
Cable w/ 8 pin M12 Connector (112860-xxxx)
MECHANICAL
Shaft Sizes: 10mm, 1/4” or 3/8”
Shaft Loading: (at 0.25” from encoder face)
Resolutions ≤1024 PPR: 80 lbs. radial, axial
Resolutions >1024 PPR: 40 lbs. radial, axial
Shaft Speed:
Resolutions ≤1024 PPR: 10,000 RPM max.
Resolutions >1024 PPR: 5,000 RPM max.
Starting Torque: (max at 25 °C)
without shaft seal: 1.0 oz-in;
with shaft seal: 2.0 oz.-in
Moment of Inertia: 3.0 x 10-4 oz–in–sec2
Housing and Cover: Aluminum
Shaft Material: Stainless Steel
Disk Material: Glass or plastic (PPR Dependant)
Weight: 10 oz. max.
ENVIRONMENTAL
Operating Temperature:
Standard: 0 to +70 °C;
Extended: 0 to +85 °C
Storage Temperature: –40 to +90 °C
Shock: 50 G’s for 11 milliseconds duration
Vibration: 5 to 2000 Hz at 20 G’s
Humidity: Up to 98% (non-condensing)
Enclosure Rating: NEMA12/IP54 (dirt tight,
splashproof); NEMA4/IP66 (dust proof, washdown)
when ordered with shaft seal and either
M12 connector or watertight cable exit
美國DYNAPAR編碼器H23204802253F等常用型號匯總
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件型號：
DYNAPAR編碼器H232048001135
DYNAPAR編碼器H232048003235
DYNAPAR編碼器H2320480032D5
DYNAPAR編碼器H23204801130R
DYNAPAR編碼器H23204801133R
DYNAPAR編碼器H23204802253F
DYNAPAR編碼器H2320480225E5
DYNAPAR編碼器H232048032035
DYNAPAR編碼器H232048032535
DYNAPAR編碼器H23204803253B
DYNAPAR編碼器H232048043235
DYNAPAR編碼器H232048052545
DYNAPAR編碼器H2320480525D4
DYNAPAR編碼器H232048100001
DYNAPAR編碼器H232048100044
DYNAPAR編碼器H232048100135
DYNAPAR編碼器H232048100145
DYNAPAR編碼器H232048100155
DYNAPAR編碼器H232048100223PS
DYNAPAR編碼器H232048100235
DYNAPAR編碼器H232048100245
DYNAPAR編碼器H23204810024B
DYNAPAR編碼器H2320481002D5
DYNAPAR編碼器H2320481002EA
DYNAPAR編碼器H2320481002EL
DYNAPAR編碼器H23204810404R
DYNAPAR編碼器H232048104135PS
DYNAPAR編碼器H232048104144
DYNAPAR編碼器H232048104155
DYNAPAR編碼器H232048104235
DYNAPAR編碼器H23204810440M
DYNAPAR編碼器H232048104423
DYNAPAR編碼器H23204810442M
DYNAPAR編碼器H23204810443R
愛澤工業專業提供美國DYNAPAR編碼器H23204802253F等，美國DANAHER集團旗下全系列產品，DYNAPAR重載編碼器，HENGSTLER編碼器/NORTHSTAR（北極星）HSD351024PA4，HSD351024PA7編碼器等等。
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。
如果有任何關于美國DYNAPAR編碼器H23204802253F的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。
有關美國DYNAPAR編碼器H23204802253F更詳細的信息或者購買美國DYNAPAR編碼器H23204802253F相關產品，請聯系愛澤工業。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website:jjxdch.cn.
美國DYNAPAR編碼器H23204802253F特性及參數描述
