SUN公司于1970年成立于美國，是高性能液壓螺紋插裝閥塊以及集成閥塊的設計和制造公司，產品集成在流體動力系統中，用以實現力，速度和運動的控制。產品廣泛應用于移動，工業機械和設備等領域。
Technical Data | |
Cavity | T-5A |
Series | 2 |
Capacity | 12 gpm |
Maximum Operating Pressure | 5000 psi |
Adjustment - No. of CCW Turns from Fully Closed to Fully Open | 5 |
Valve Hex Size | 1 1/8 in. |
Valve Installation Torque | 45 - 50 lbf ft |
Adjustment Screw Internal Hex Size | 5/32 in. |
Locknut Hex Size | 9/16 in. |
Locknut Torque | 80 - 90 lbf in. |
Model Weight | 0.61 lb. |
Seal kit - Cartridge | Buna: 990203007 |
Seal kit - Cartridge | EPDM: 990203014 |
Seal kit - Cartridge | Viton: 990203006 |
SUN閥FDCB-LAN產品介紹
具有逆流檢查功能的完全可調、壓力補償流量控制可為可能存在較大壓力波動的入口節流或出口節流應用提供精確的流量調節。它們可以從幾乎關閉到流量上限進行無級調節。集成的大容量止回閥可提供從端口 2 到端口 1 的不受限制的流量。
? 所有 2 端口流量控制插芯在物理和功能上均可互換（即，對于給定的框架尺寸，具有相同的流路、相同的腔體）。然而，閥從安裝表面延伸的尺寸可能會有所不同。
? 平衡調節機構即使在高壓下也能輕松調節。
? 鋒利的孔口設計更大限度地減少了由于粘度變化而引起的流量變化。
? 當調節機構轉到關閉位置時，最小泄漏量為 0.2 gpm (0.8 L/min)。
? 配置有 EPDM 密封件的閥芯適用于含有磷酸酯液體的系統。接觸石油基液體、油脂和潤滑劑會損壞密封件。
Fully adjustable, pressure-compensated flow controls with reverse-flow check provide precise flow regulation for meter-in or meter-out applications where there may be wide pressure fluctuations. They are infinitely adjustable from nearly closed up to the maximum flow. An integral high-capacity check valve provides unrestricted flow from port 2 to port 1.

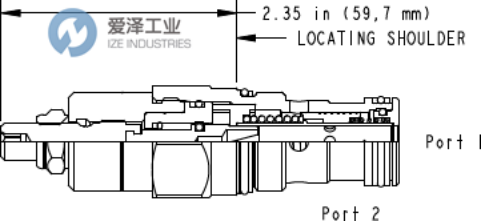

? All 2-port flow control cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size). However, cartridge extension dimensions from the mounting surface may vary.
? A balanced adjustment mechanism allows for easy adjustment even at high pressures.
? The sharp-edged orifice design minimizes flow variations due to viscosity changes.
? Minimum leakage is .2 gpm (0,8 L/min) when the adjustment mechanism is turned to the shut-off position.
? Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
SUN溢流閥FDCB系列其他常用型號：
SUN FDCBLAN
SUN FDCBLAV
SUN FDCBLBV
SUN FDCBLBN
SUN VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SUN閥FDCB-LAN的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SUN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SUN閥FDCB-LAN技術參數介紹
