SKF流線監控器FL15系列技術參數
Technical data | |
Flow meter type | FL15 |
Flow rate | 0,1–15,0 l/min (0.2–30.0 pt/min) |
Group size | 2, 4, 6, 8, 10 flow meters |
Viscosity range | 32–1 000 mm2/s |
Operating pressure (max.) | 10 bar (145 psi) |
Operating temperature | 0 to + 65 °C (+32 to 150 °F) |
Protection class | IP 65 |
Power supply | 20–36 V DC |
Power consumption | 5 W |
Alarm relay | Potential free contact; max. load 30 V DC / 1 A, 120 V AC / 1 A, resistive load |
Inlet connections | BSPP G 1 or NPT 1 |
Outlet connections | BSPP G 1/2 or NPT 1/2 |
SKF流線監控器FL系列介紹
油循環潤滑系統的流量控制和監測
SKF 流線監控器用于劃分、測量和控制油循環潤滑系統中的流量。三種不同的流量計尺寸可以控制和監測 0.1 至 100 l/min 的流量，工作粘度為 32 至 1000 mm 2 /s。流量計單獨運行，可以單獨編程和調整。無論油溫和粘度如何變化，SKF 流線監控器都能提供準確的結果?？梢赃M行計算機配置和遠程監控。監控模塊可提供通用警報、每個潤滑點和過程控制接口的單獨警報。
Flow rate control and monitoring for oil circulation lubrication systems
The SKF Flowline Monitor is used to divide, measure and control the flow rate in oil circulation lubrication systems. Three different flow meter sizes enable control and monitoring of 0,1 to 100 l/min flows with operating viscosities from 32 to 1000 mm2/s. The flow meters operate individually and can be programmed and adjusted separately. Regardless of oil temperature and viscosity changes, the SKF Flowline Monitor provides accurate results. Computer configuration and remote monitoring are possible. Monitoring modules are available offering common alarms, individual alarms for each lubrication point and interfaces to process controls.

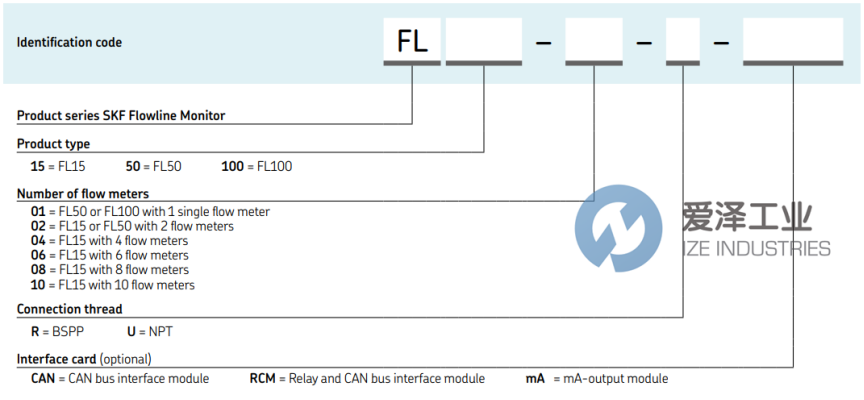

SKF流線監控器FL系列選型
SKF流線監控器FL系列其他常用型號：
SKF FL15-02-R
SKF FL15-04-R
SKF FL15-06-R
SKF FL15-08-R
SKF FL15-10-R
SKF FL 50-R
SKF FL 50-02-R
SKF FL100-01-R
SKF FL15-02-R-CAN
SKF FL15-04-R-CAN
SKF FL15-06-R-CAN
SKF FL15-08-R-CAN
SKF FL15-10-R-CAN
SKF FL 50-R-CAN
SKF FL 50-02-R-CAN
SKF FL100-01-R-CAN
SKF FLOWLINE MONITOR NEW + ORIGINAL+ ONE YEAR WARRANTY
