ZEVATRON烙鐵頭介紹（中英文）
ZEVATRON 烙鐵頭適用于許多應用領域的專業工作：用于電氣設備或電氣元件的焊接工作、用于預熱較大的焊接表面、用于含鉛玻璃中的焊接連接、用于焊接塑料以及許多其他應用領域。有多種標準類型可供選擇。特殊版本的制造速度快且經濟高效。
ZEVATRON soldering tips are supplied for professional work in many areas of application: for soldering work on electrical devices or electrical components, for preheating larger soldering surfaces, for soldering connections in leaded glazing, for welding plastics and for many other areas of application. An extensive range of standard types is available from. Special versions are manufactured quickly and cost-effectively.
特點/Advantageous to use
? 好的導熱性
? 高尺寸穩定性
? 使用壽命長
? 提供免維護焊接頭
? 多種類型可供選擇
? Extremely good thermal conductivity
? High dimensional stability
? Long lifetime
? Maintenance-free soldering tips available
? Many types available from
技術特點/Technical features
? 由純電解銅制成的烙鐵頭
? 表面防腐蝕保護
? 精確的制造品質
? 可以輕松生產客戶特定的設計
? 聚四氟乙烯涂層可用于塑料焊接
? Soldering tips made from pure electrolytic copper
? Surface protection against corrosion
? Accurate manufacturing quality
? Customer-specific designs can be easily produced
? Teflon coating possible for plastic welding
焊接技巧/Soldering tips:
Zevatron 烙鐵頭由純電解銅制成。這種材料確保了導熱性。為了防止腐蝕，焊頭完全鍍鎳。
Zevatron soldering tips are made from pure electrolytic copper. This material ensures the best thermal conductivity. To protect against corrosion, the soldering tips are completely nickel-plated.
技術版本/Technical versions

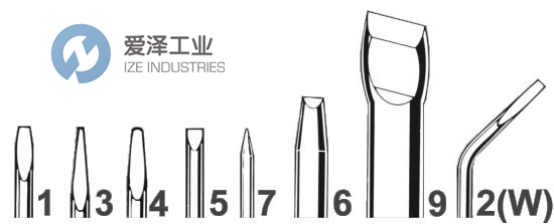

標準烙鐵頭直徑為5；6；7.5；9.5；15；19.5 或 30 毫米。焊頭長度根據溫度和功率來適應各自的任務?？捎玫睦予F頭形狀如示意圖所示。
The standard soldering tip diameters are 5; 6; 7.5; 9.5; 15; 19.5 or 30mm. The soldering tip lengths are adapted to the respective task in terms of temperature and power. The available shapes of soldering tips are shown in the schematic diagram.
永久焊接頭/Permanent soldering tips:
Zevatron 永久烙鐵頭也由純電解銅制成。通過尖端上均勻且有彈性的鐵涂層，可以保護永久性焊接尖端免受焊料侵蝕和助焊劑腐蝕。烙鐵頭的其余部分均鍍鉻。焊接翅片也經過預鍍錫。由于這種表面處理，永久烙鐵頭的使用壽命延長了 10 至 20 倍，這意味著即使長時間使用烙鐵頭也不需要返工。
Zevatron permanent soldering tips are also made from pure electrolytic copper. The permanent soldering tips are protected against erosion by solder and corrosion by fluxes by a homogeneous and elastic iron coating on the tip. The rest of the soldering tip is chrome plated. The soldering fin is also pre-tinned. Thanks to this surface treatment, the permanent soldering tips have a service life that is 10 to 20 times longer, meaning the tip does not need to be reworked even after long periods of use.

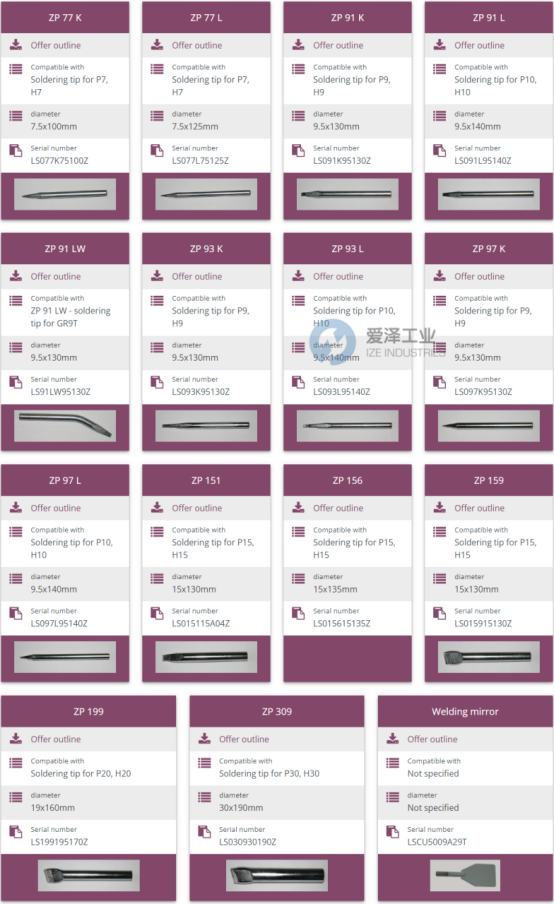

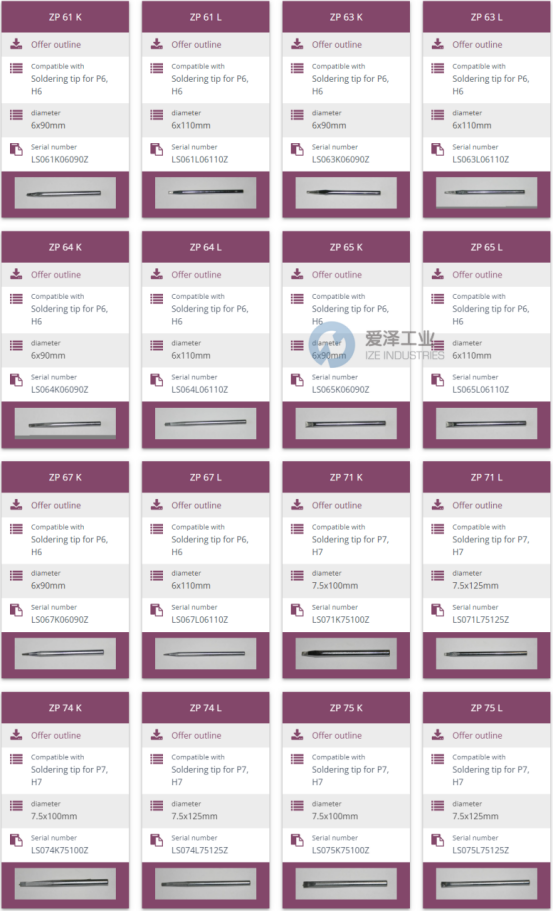

選擇烙鐵頭/Choose your soldering tip:
直徑，例如 15 毫米
形狀，例如 1 號形狀
如果擁有了 ZP 151 烙鐵頭。ZP 烙鐵頭是無鉛焊接的不錯選擇
Diameter, e.g. 15 mm
Shape, e.g. shape no. 1
So that have the ZP 151 soldering tip. ZP soldering tips are ideal for lead-free soldering!
定制/Custom made:
Zevatron 還生產客戶特定設計的烙鐵頭和永久烙鐵頭。帶有尺寸的草圖足以作為模板。特殊形狀可以快速且經濟高效地制造，因為一方面，Zevatron 在該領域擁有大量專業知識，另一方面，庫存有各種直徑的原材料。
Zevatron also produces soldering tips and permanent soldering tips in customer-specific special designs. A sketch with dimensions is sufficient as a template. Special shapes can be manufactured quickly and cost-effectively because, on the one hand, Zevatron has a lot of know-how in this sector and, on the other hand, raw material is stocked in all diameters.
焊接鏡/Welding mirror:
對于加熱和塑料焊接，ZEVATRON 提供插入烙鐵中的特殊焊接鏡。它們有不同的材料可供選擇。它們可以裸裝和涂層交付。
For heating and plastic welding, ZEVATRON supplies special welding mirrors that are inserted into the soldering iron. They are available in different materials. They can be delivered both bare and coated.
