GF管路系統是GF集團三大核心業務之一，是管路系統供應商。GF SIGNET的產品被廣泛應用于工業、市政設施和建筑技術領域。
GF余氯分析儀4630系列技術參數
Specifications | ||
General | ||
Compatible | 3-2630-1 Free Chlorine Electrode, 0.02 to 2 ppm / 3-2650-7 Amperometric Electronics | |
Materials | ||
Panel | Black Acrylic | |
Flow Cell | Acrylic | |
Wiring Enclosure | Polycarbonate | |
Wetted Materials | ||
Flow Cell | ||
Flow Cell, Spacer Rings | Acrylic | |
Flow Regulator Housing | Polycarbonate | |
Strainer, E-clip, Regulator Spring, Float | Stainless Steel | |
Valves, Vent | Polypropylene | |
Flow Cell O-rings, Diaphragm | EPR (EPDM), FKM | |
Chlorine Electrode | PVC, PTFE, FKM, Nylon, Silicone | |
pH Electrode | PPS, Glass, UHMWPE, FKM | |
Flow Switch | Polypropylene | |
Sealing Tape on Valves, Plug and Vent | PTFE | |
Plug | Polyethylene | |
Max. Temperature/Pressure Rating | ||
System Inlet Pressure Rating | 1 to 8 bar | 15 to 120 psi |
Pressure Regulator | < 0.69 bar (10 psi) variation over all ranges of flow and pressure | |
Flow Tolerance | ± 15% or rated specification above | |
Flow Rate Limits | 30.24 to 45.36 LPH | 8 to 12 gph (US) |
Storage Temperature | 0 °C to 65 °C | 32 °F to 149 °F |
Operating Temperature | 0 °C to 45 °C | 32 °F to 113 °F |
pH Range | 5.0 to 8.2 pH | |
Power Requirements | ||
DC Input (3-9950-3) | 24 VDC nominal (12 to 32 VDC, ± 10% regulated), UL 60950-1 or UL 61010-1 | |
AC input (9950-4) | 100 to 240 VAC. 50 to 60 Hz. 24 VA | |
3-9950-X Relay Mode | Current draw up to 500 mA | |
Current Loop | 12 to 32 VDC, ±10% regulated, 4 to 20 mA (30 mA max.) | |
Overvoltage | Protection Protection 48 Volt Transient Protection Device. | |
Environmental | ||
Relative Humidity | 0 to 95% | |
Maximum Altitude | 4000 m (13,123 ft) | |
Enclosure | NEMA 4X (with output wire glands sealed) | |
Shipping Weight | 10 kg | 22 lb |
Standards and Approvals | CE, FCC, UL, CUL, WEEE | |
GF余氯分析儀4630系列介紹
GF 4630 游離氯分析儀系統是一款集成一體式系統，旨在測量游離氯。 帶有 pH 傳感器的 3-4630 游離氯分析儀用于在具有不同 pH 值（±0.20 pH 單位）的應用中準確計算游離氯。
4630 余氯分析儀系統配備了支持氯監測一整年運行所需的。 面板設計可實現快速簡便的安裝，并配有四個 4 至 20 mA 輸出、帶繼電器中斷的流量開關、四個二進制輸入和兩個機械繼電器。
The GF 4630 Free Chlorine Analyzer System is an integrated all-in-one system designed to measure free chlorine. The 3-4630 Free Chlorine Analyzer with pH sensor is used to accurately calculate free chlorine in applications that have varying pH values (±0.20 pH units).
The 4630 Free Chlorine Analyzer System comes complete with everything needed to support chlorine monitoring for 1 full year of operation. Panel design allows quick and easy installation and comes complete with four 4 to 20 mA outputs, flow switch with relay interrupt, four binary inputs and two mechanical relays.

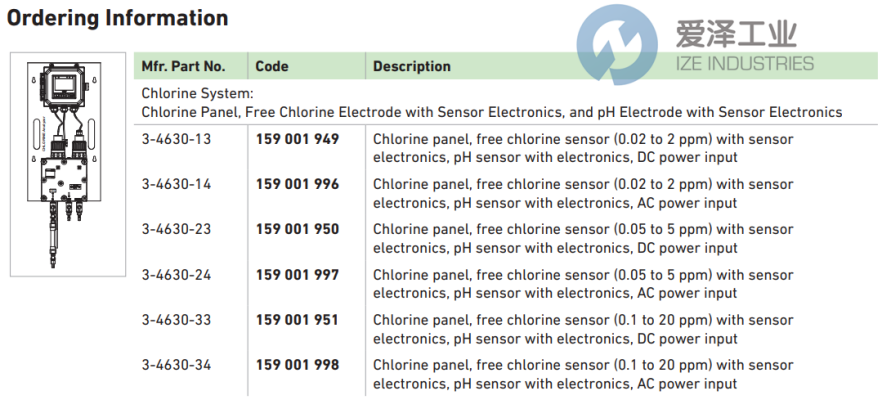

GF余氯分析儀4630系列選型
GF余氯分析儀4630系列其他常用型號：
GF 3-4630-13
GF 3-4630-14
GF 3-4630-23
GF 3-4630-24
GF 3-4630-33
GF 3-4630-34
GF Free Chlorine Analyzer System NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GF余氯分析儀3-4630-24的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
