EBM PAPST集團是優質的電動馬達和風機制造商?？偛课挥诘聡?/p>
EBM主營產品：EBM風扇、EBM軸流風機、EBM離心風機、EBM鼓風機、EBM熱風機、EBM水泵、EBM控制器。
EBMPAPST風機W6D800-GD01-01技術規格
Technical description | |
Weight | 44 kg |
Size | 800 mm |
Motor size | 138 |
Rotor surface | Cast in aluminum |
Terminal box material | PP plastic |
Blade material | Sheet aluminum insert, sprayed with PP plastic |
Fan housing material | Sheet steel, galvanized and coated with black plastic (RAL 9005) |
Guard grille material | Steel, coated with black plastic (RAL 9005) |
Number of blades | 5 |
Blade pitch | 0° |
Airflow direction | V |
Direction of rotation | Clockwise, viewed toward rotor |
Degree of protection | IP54 |
Insulation class | "F" |
Moisture (F) / Environmental (H) protection class | H2 |
Ambient temperature note | - Occasional start-up at temperatures between -40°C and -25°C is permitted. |
Installation position | Any |
Condensation drainage holes | On rotor and stator sides |
Mode | S1 |
Motor bearing | Ball bearing |
Touch current according to IEC 60990 | <= 3.5 mA |
Electrical hookup | Terminal box |
Motor protection | Thermal overload protector (TOP) with basic insulation |
with cable | Axial |
Protection class | I (with customer connection of protective earth) |
Conformity with standards | EN 60034-1 (2010); CE |
Approval | EAC; VDE |

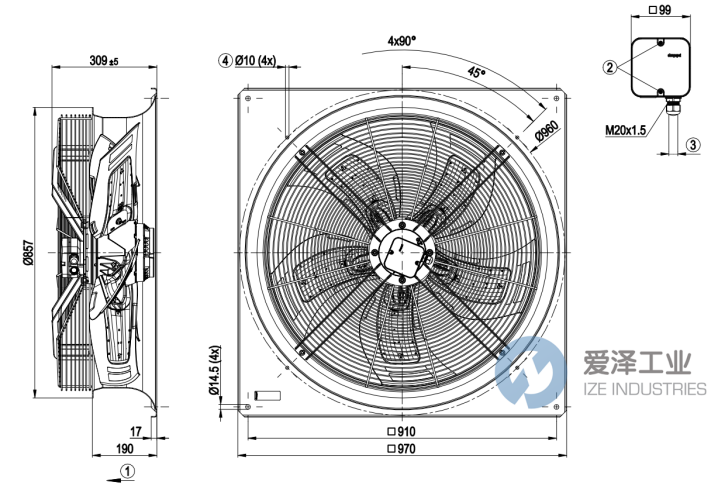

EBMPAPST風機W6D800-GD01-01技術尺寸
EBMPAPST風機W6D800系列其他常用型號：
EBMPAPST W6D800-KG13-01
EBMPAPST W6D800-NG13-01
EBMPAPST W6D800-NG13-11
EBMPAPST W6D800-GD01-01
EBMPAPST FUN NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EBMPAPST風機W6D800-GD01-01的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EBMPAPST products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
EBMPAPST風機W6D800-GD01-01技術規格及尺寸
