OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥VED-10A-32系列技術參數
General | |
Weight kg (lbs) | 0.22 (0.49) |
Installation orientation | Optional |
Ambient temperature range °C (°F) | —30 to 60 (-22 to 140) - coil 30W |
Hydraulic | |
Max. operating pressure port 2-3 bar (psi) | 280 (4000) |
Max. operating pressure port 1bar (psi) | 210 (3000) |
Max. flow l/min. (gpm) | 20 (6) |
Max. internal leakage (*) cm3/min. (cu.in./min.) | 80 (5) |
Fluid temperature range °C (°F) | —20 to 80 (-4 to 176) |
Fluids | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque Nm (ft-lbs) | 44-56 (33-41) |
Filtration | Nominal value max. 10μm (NAS 8) ISO 4406 19/17/14 |
Cavity | CA-10A-3N see RE 18325-70 |
Seal kit | code RG10A3010530100 |
Seal kit coil | code RG16A1PMVQ0010 |
Other technical data | See data sheet RE 18350-50 |
(*) Measured at 210 bar (3000 psi) (oil at 46 cSt) | |
Electrical | |
Type of voltage | DC voltage |
Coil type | S7 |
Supply voltage | See data sheet RE 18325-90 |
Power consumption W | 30 |
Duty cycle coil % | 100 see RE 18325-90 |
Type of protection | See data sheet RE 18325-90 |
Nominal voltage coil 30W | —10% + 10% |
Note: Coils must be ordered separately | |
REXROTH OIL CONTROL閥VED-10A-32系列介紹
電磁閥直動閥芯3通2位
Solenoid operated valves direct acting spool 3-way 2-position
REXROTH OIL CONTROL閥VED-10A-32系列尺寸圖

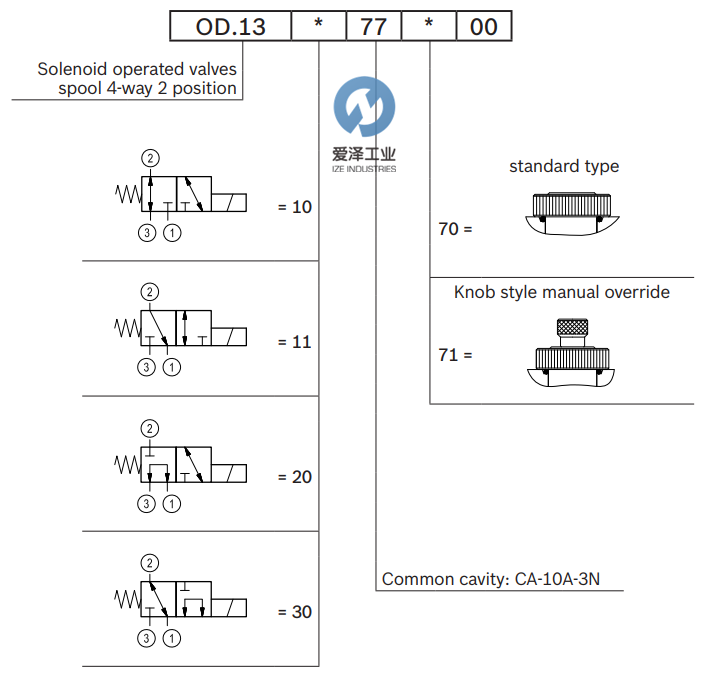

REXROTH OIL CONTROL閥VED-10A-32系列選型
REXROTH OIL CONTROL閥VED-10A-32系列其他常用型號：
REXROTH OIL CONTROL OD131077700000 R901113686
REXROTH OIL CONTROL OD131077710000 R901113687
REXROTH OIL CONTROL OD131177700000 R901125116
REXROTH OIL CONTROL OD131177710000 R901126890
REXROTH OIL CONTROL OD132077700000 R901113690
REXROTH OIL CONTROL OD132077710000 R901113692
REXROTH OIL CONTROL OD133077700000 R901115704
REXROTH OIL CONTROL OD133077710000 R901126898
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD133077700000 R901115704的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
REXROTH OIL CONTROL閥OD133077700000 R901115704技術參數及選型
