OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績在汽車和工程機械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥VEI-16-08A-NC系列技術參數
Technical data | |
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90°C (-22 to 194°F) for W=0000 |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min. (0.1 - 11 gpm) for W=0000 |
Fatigue cycle life | 2 million cycles at 350 bar |
150000 cycles at 420 bar | |
Max. internal leakage: | 5 drops/min. for X= 01,05,07 |
20 drops/min. for X= 31,03,09 | |
Switching time for W=0000 | Opening ≤ 50 ms |
Switching time for W=000T | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 35 - 43 Nm (26 - 32 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm(NAS 8) ISO 4406 19/17/14 |
Seal kit for X=01,05 | code RG08A2010520100 |
Seal kit for X=03,09,11,31 | code RG08A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

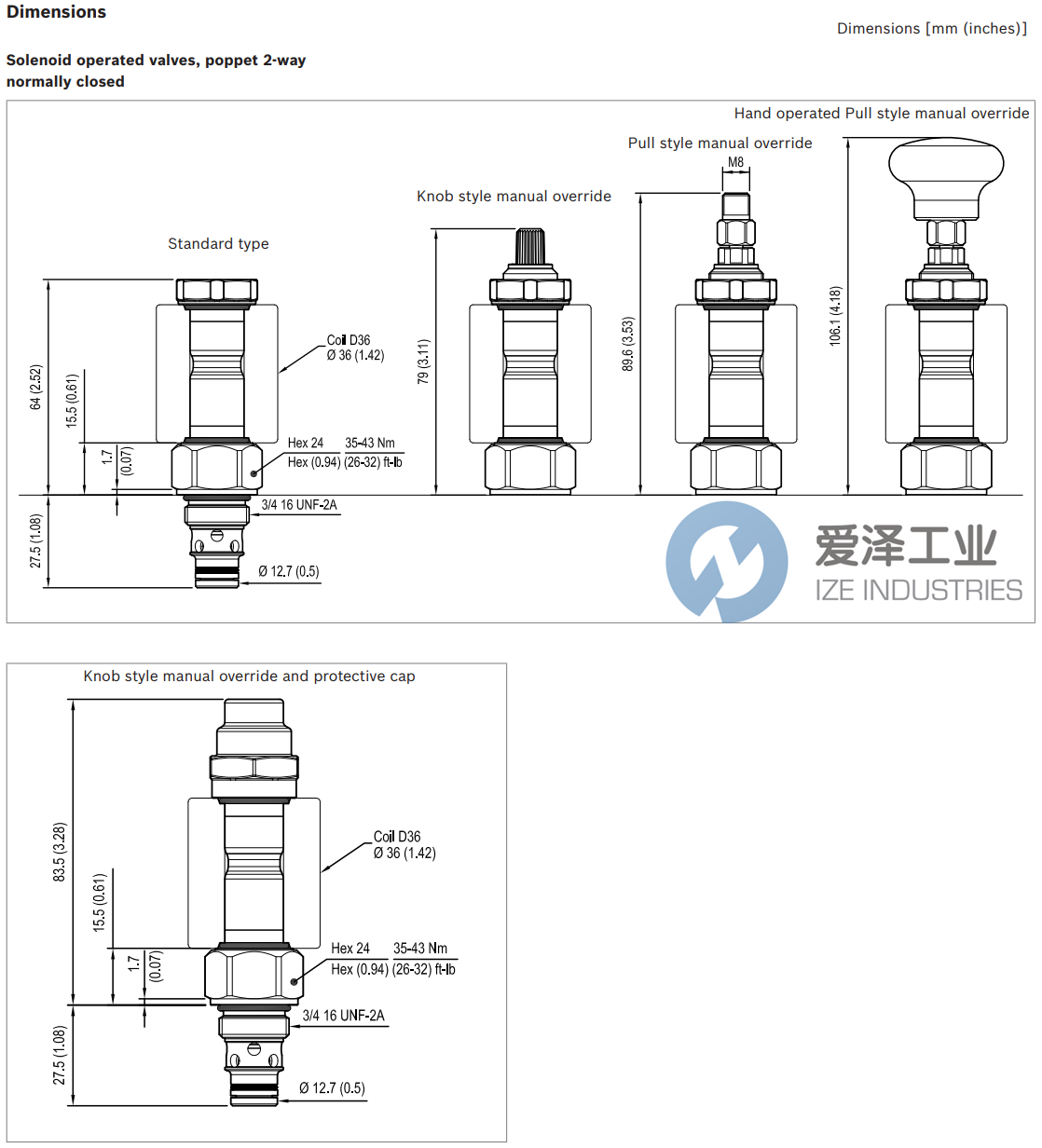

REXROTH OIL CONTROL閥VEI-16-08A-NC系列技術尺寸圖

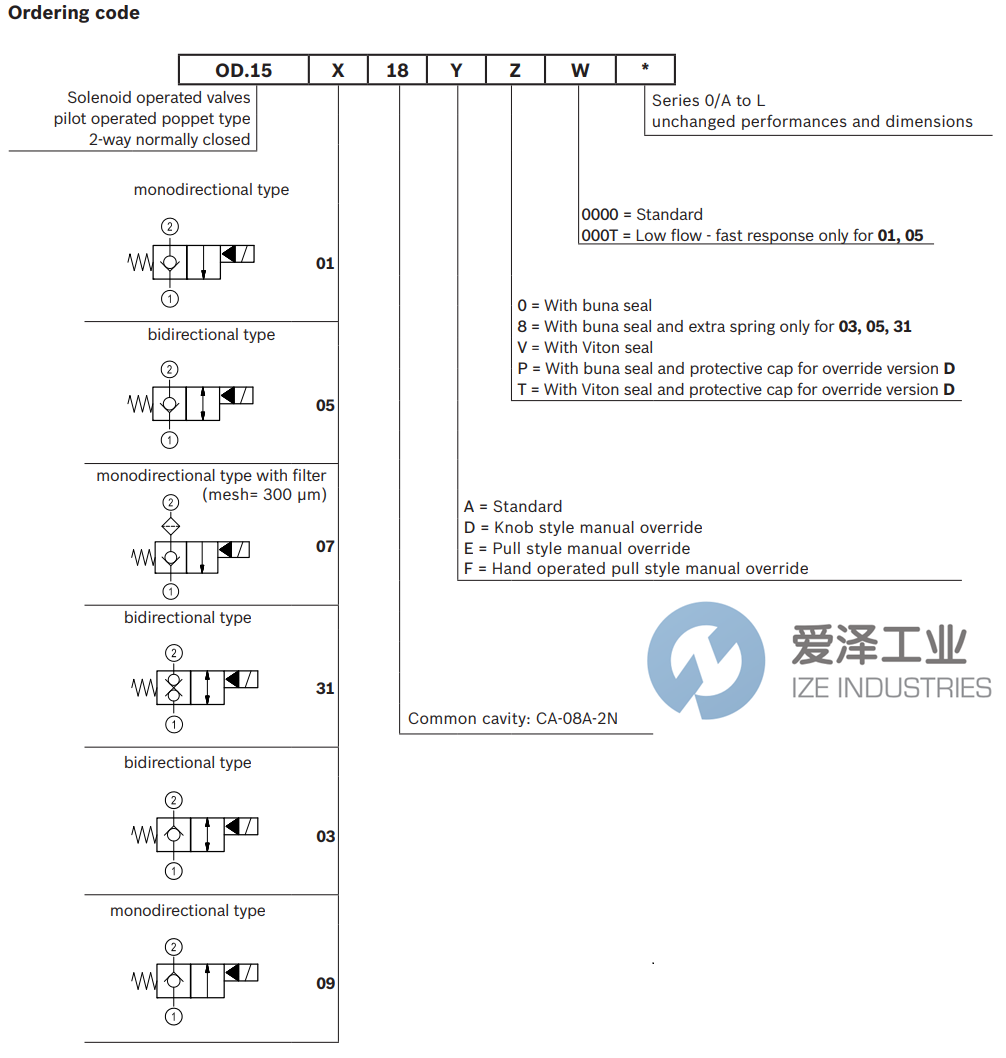

REXROTH OIL CONTROL閥VEI-16-08A-NC系列選型
REXROTH OIL CONTROL閥VEI-16-08A-NC系列其他常用型號：
REXROTH OIL CONTROL OD150118A000000 R930058697
REXROTH OIL CONTROL OD150118D000000 R930059941
REXROTH OIL CONTROL OD150518A000000 R930058427
REXROTH OIL CONTROL OD150518D000000 R930058344
REXROTH OIL CONTROL OD150518DP00000 R930059757
REXROTH OIL CONTROL OD150718A000000 R930058338
REXROTH OIL CONTROL OD150718D000000 R930058336
REXROTH OIL CONTROL OD150718DP00000 R930058529
REXROTH OIL CONTROL OD150118E000000 R930060958
REXROTH OIL CONTROL OD150518E000000 R930060966
REXROTH OIL CONTROL OD150718E000000 R930060973
REXROTH OIL CONTROL OD153118A000000 R930058334
REXROTH OIL CONTROL OD153118D000000 R930058898
REXROTH OIL CONTROL OD153118E000000 R930065030
REXROTH OIL CONTROL OD150518A800000 R930063229
REXROTH OIL CONTROL OD150318A000000 R930062828
REXROTH OIL CONTROL OD150918A000000 R930064361
REXROTH OIL CONTROL OD153118DP00000 R930066685
REXROTH OIL CONTROL OD150518D800000 R930063959
REXROTH OIL CONTROL OD150318D000000 R930065238
REXROTH OIL CONTROL OD150918D000000 R930066189
REXROTH OIL CONTROL OD150318A800000 R930065856
REXROTH OIL CONTROL OD150518A800000 R930063229
REXROTH OIL CONTROL OD153118A800000 R930066547
