HOKUYO 于 1946 年成立于日本，為廣泛的工廠自動化系統和各種生產流程開發并繼續提供一些原創的自動化技術，產品包括計數器、光電傳感器和自動門等。
HOKUYO光學數據傳輸設備BWF-11A/11B技術參數
Model No. | BWF-11A/11B |
Transmission distance | 100m |
Directional angle | ±2° |
Transmission method | Full duplex two-way transmission |
Transmission speed | DC to 19.2kbps |
Input/Output interface | RS-232C/RS-422 |
Modulation method | FSK modulation |
Modulation frequency | Type A (transmission 5.5MHz, reception 6.0MHz), Type B (transmission 6.0MHz, reception 5.5MHz) |
Power source | 12 to 24VDC (10 to 30VDC) |
Current consumption | 150mA or less (at 12VDC), 80mA or less (at 24VDC) |
Warning output | Photo-coupler (35V, 50mA), |
Light-reception level Output | 0 to 5V (in proportion to light reception amount) |
Indication lamps | Power source, carrier detect, data input, data output, light-reception level margin (Red LED) |
Connection | Connector (25pins D-sub connector), but M3 screw terminal at power source |
Ambient illuminance | 20,000lux or less (Both sun light and incandescent lamp) |
Ambient temperature/humidity | -10 to +50℃, 85%RH or less (not icing, not condensing) |
Protective structure | IP60 (IEC Standard), available up to IP64 by user's option |
Case material | ABS resin |
Weight | Approx. 500g |
HOKUYO光學數據傳輸設備BWF系列介紹
BWF 系列光學數據傳輸設備使數據能夠在長距離對齊的一對單元之間快速可靠地傳輸。典型用途是高架起重機和堆垛機、自動存儲和檢索系統 (AS/RS) 以及用于從車輛到控制單元的非接觸式雙向通信的轉運車。使用調制光作為傳輸方法意味著這些收發器不會像拖曳電纜和滑環那樣產生物理磨損，也不像無線電系統那樣需要重新校準。
? 實際傳輸距離為額定值的2倍以上，實現了高可靠性的數據傳輸。
? 接口種類豐富，RS-232C、RS-422、電流環、RS-422/RS-485 multi-drop等。
? 提供電平降低警告輸出，以防止光軸錯位或鏡頭表面臟污等故障。
? 可通過光學檢測儀或檢測終端方便地檢測光軸調整情況。
The BWF Series optical data transmission devices enable data to be transmitted quickly and reliably between an aligned pair of units over long distances. Typical uses are on overhead and stacker cranes, automated storage and retrieval systems (AS/RS) and transfer cars for non-contact bi-directional communication from the vehicle to the control unit. The use of modulated light as the transfer method means that these transceivers do not incur physical wear like trailing cables and slip rings nor do they require recalibration like radio systems.
? Actual transmission distance is 2 times or more than rated value and data transmission with high reliability is realized.
? Many kinds of interface are lined up, RS-232C, RS-422, current-loop and RS-422/RS-485 multi-drop, etc.
? Level lowering warning output are provided due to prevent some troubles such as dislocation of optical axis or dirty lens surface.
? It can be easy to check optical axis adjustment with optical checker or checking terminal.

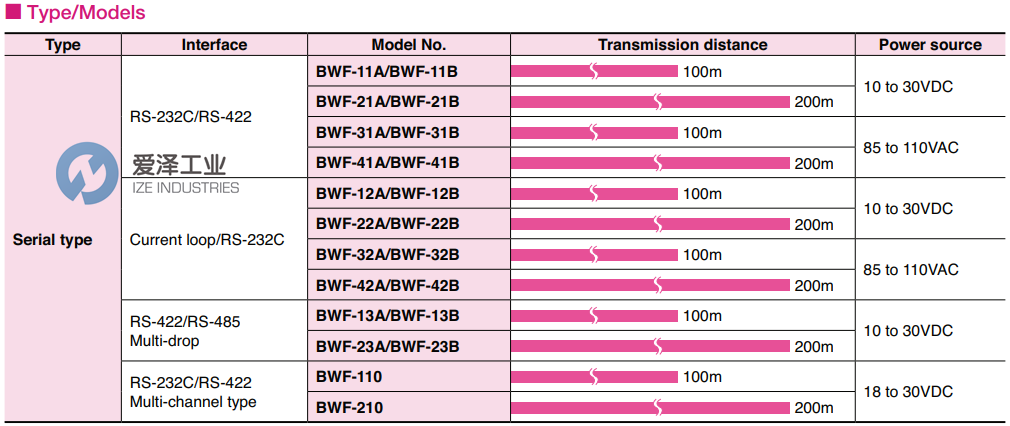

HOKUYO光學數據傳輸設備BWF系列選型
HOKUYO光學數據傳輸設備BWF系列其他常用型號：
HOKUYO BWF-11A
HOKUYO BWF-11B
HOKUYO BWF-21A
HOKUYO BWF-21B
HOKUYO BWF-31A
HOKUYO BWF-31B
HOKUYO BWF-41A
HOKUYO BWF-41B
HOKUYO BWF-12A
HOKUYO BWF-12B
HOKUYO BWF-22A
HOKUYO BWF-22B
HOKUYO BWF-32A
HOKUYO BWF-42A
HOKUYO BWF-42B
HOKUYO Optical Data Transmission NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HOKUYO光學數據傳輸設備BWF-11A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HOKUYO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HOKUYO光學數據傳輸設備BWF系列BWF-11A技術參數及選型
