EMERSON（美國艾默生電氣公司）1890年在美國密蘇里州圣路易斯市成立，美國艾默生電氣公司當時是一家電機和風扇制造商。經過100多年的努力，EMERSON已經由一個地區制造商成長為一個技術解決方案的集團公司。
EMERSON將技術與工程相結合，在過程管理、工業自動化、網絡能源、環境優化技術及商住解決方案領域，為客戶提供創新性的解決方案。
以科技融合工程技術，鍥而不舍，在充滿活力的世界范圍為客戶利益創造解決方案。
EMERSON設備通訊器AMS Trex系列技術參數
Processor, Memory, and Operating System | |
Microprocessor | 800 MHz ARM Cortex A8 / NXP |
Memory Internal Flash | 2 GB NAND and 32 GB extended flash |
Operating System | Windows Embedded Compact 2013 |
RAM | 512 MB DDR3 SDRAM |
Physical | |
Weight | Approximately 2.9 lbs (1330 grams) |
Display | 5.7 inch (14.5 cm) color VGA resistive touchscreen |
Keypad | X button - similar to a Back key |
AC Adapter | |
Battery | Rechargeable Lithium- lon Power Module |
Operating Time | 8+ hours of typical use |
Charge Time | 3 to 4 hours |
LEDs | 6 LEDs. Five LEDs for indicating the progress of charging. |
Battery Charger Options | Input voltage 100-240 VAC, 50-60 Hz |
Environmental | |
Usage | -20°C to +55°C(-4°F to 131°F). |
Charge | +10°C to +45°C (50°F to 113°F) |
Storage with power module | -20°C to +50°C (-4°F to 122°F) (less than 1 month) |
Storage without power module | -20°C to +60°C(-4 °F to 140°F) |
Enclosure Rating | IP54 |
Shock | The unit shall survive a 1-meter, all sides and corners drop test onto concrete. |
EMERSON設備通訊器AMS Trex系列介紹
AMS Trex 設備通訊器通過現代、直觀的用戶體驗提高效率，包括更大的顯示屏、觸摸屏和基于任務的 UI。設備儀表板、高級診斷和故障排除提示可幫助您在現場發現問題時解決問題。
現代用戶體驗
預測用戶需求，提供故障排除信息，并允許通過大型觸摸屏鍵盤輕松瀏覽菜單和類型標準。
設備概述
設備連接后，用戶觸手可及相關信息，并提供設備信息、警報、設備狀態、主要測量值和菜單，讓用戶可以輕松診斷問題。
多功能和可交換的連接
提供可熱插拔且易于更改的 AMS Trex 裝置的連接或附加功能。Plus 模塊具有 HART 和 FF 連接器、用于 HART 和 FF with Power 的連接器，為您提供為回路段供電的能力，以及一個電流表連接器。
The AMS Trex Device Communicator improves efficiency with a modern, intuitive user experience that includes a larger display, touchscreen, and task-based UI. Device Dashboards, advanced diagnostics, and troubleshooting tips help you fix issues in the field when you find them.
Modern User Experience
Anticipates user needs, provides troubleshooting information, and allows for easy navigation through the menus and type criteria with a large touchscreen keyboard.
Device Overview
Puts relevant information at the user’s fingertips as soon as the device is connected and offers device information, alerts, device status, primary measurements, and menus all at first glance so the user can easily diagnose the issue.
Versatile and Swappable Connections
Provides connections or added functionality of the AMS Trex unit that are hot swappable and easily changed. The Plus Module has HART and FF connectors, connectors for HART and FF with Power that provides you the ability to power loop segments, and an ammeter connector.

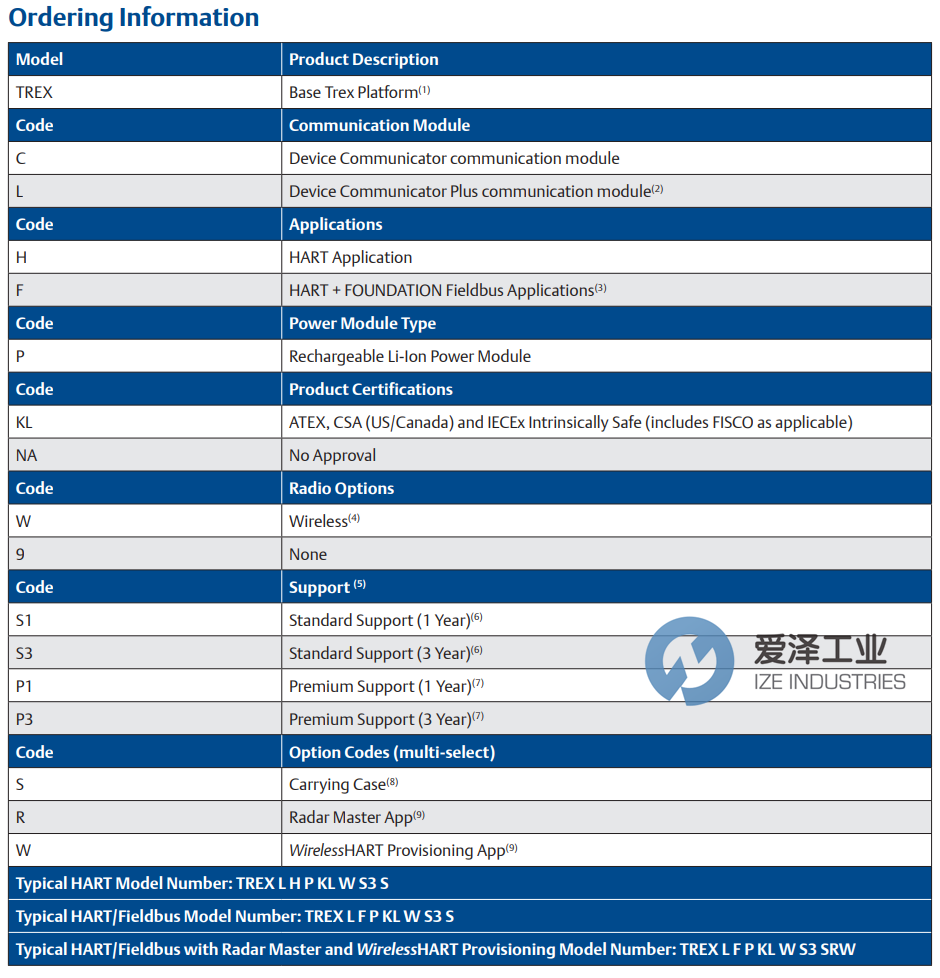

EMERSON設備通訊器AMS Trex系列選型
EMERSON設備通訊器AMS Trex系列其他常用型號：
EMERSON TREXLFPKLWS3
EMERSON TREXCFPKLWP1
EMERSON TREXCFPKLWS3
EMERSON TREXCFPKL 9P1
EMERSON TREXCFPNAWP3
EMERSON TREXCHPNA9S3
EMERSON TREXCHPNA9S1
EMERSON TREXCHPNA9P3
EMERSON TREXCHPNA9P1
EMERSON TREXCFPKLWS3S
EMERSON Device Communicator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EMERSON設備通訊器TREXCFPKLWS3S的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EMERSON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
EMERSON設備通訊器AMS Trex系列TREXCFPKLWS3S技術參數及選型
