ELEKTROGAS成立于1961年，主要設計和制造具有機械霧化功能的燃油燃燒器。
ELEKTROGAS產品有：自動安全閥門，手動復位安全閥門，控制閥門，過濾器等。
ELEKTROGAS電磁閥VMR系列技術參數
Technical specifications | |
Connections | Internal threaded ISO 7-1 from Rp1/4 to Rp2? or ANSI-ASME B1.20 from 1/4”NPT to 2”?NPT |
Voltage ratings | 230 VAC 50/60 Hz 12 VAC/DC |
Voltage tolerance | -15% to +10% |
Ambient temperature Media temperature | -15°C to +60°C (+5°F to +140°F) |
Max. operating pressure | 200 mbar (3 psig) |
Body test pressure | 1 bar (15 psig) |
Closing time | < 1 second |
Opening time | < 1 second |
Gas strainer | 600 μm (0.02 in) (except brass models and 6 bar) |
Enclosure | IP54 (NEMA 3) optional IP65 with cable (NEMA 4) |
Cable gland | M20x1,5 for terminal box PG 9 for ISO plug |
Wires cross-section | 2,5 mm2 max. (AWG 12) for terminal board |
Electrical safety | Class I (EN 60335-1) |
Coil winding insulation | Class H (200°C, 392°F) |
Coil thermal resistance | Class F (155°C, 311°F) |
Materials in contact with gas | Aluminium alloy, |
ELEKTROGAS電磁閥VMR系列介紹
VMR型閥是一種常閉的快開電磁閥。
當線圈未通電時，彈簧在圓盤上工作，保持氣體通道關閉。當線圈通電時，閥門打開。當電源關閉時，閥門迅速關閉。
這種類型的裝置適用于大氣燃燒器或風扇輔助燃燒器、工業窯爐和所有使用燃?xì)怆姶砰y的燃?xì)庠O(shè)備中的氣體和空氣阻斷和調節控制（可連續使用 – 100% ED）。適用于高頻開關系統。
The VMR type valve is a fast opening solenoid valve that is normally closed.
When the coil is not energized the spring works on the disc keeping the gas passage closed. When the coil is powered the valve opens. When power is switched off the valve rapidly shuts.
This type of device is suitable for gas and air blocking and adjusting controls in atmospheric burners or fan-assisted burners, in industrial kilns and in all gas equipments which use gas solenoid valves (qualified for continuous service – 100% ED). Suitable for high-frequency switching systems.

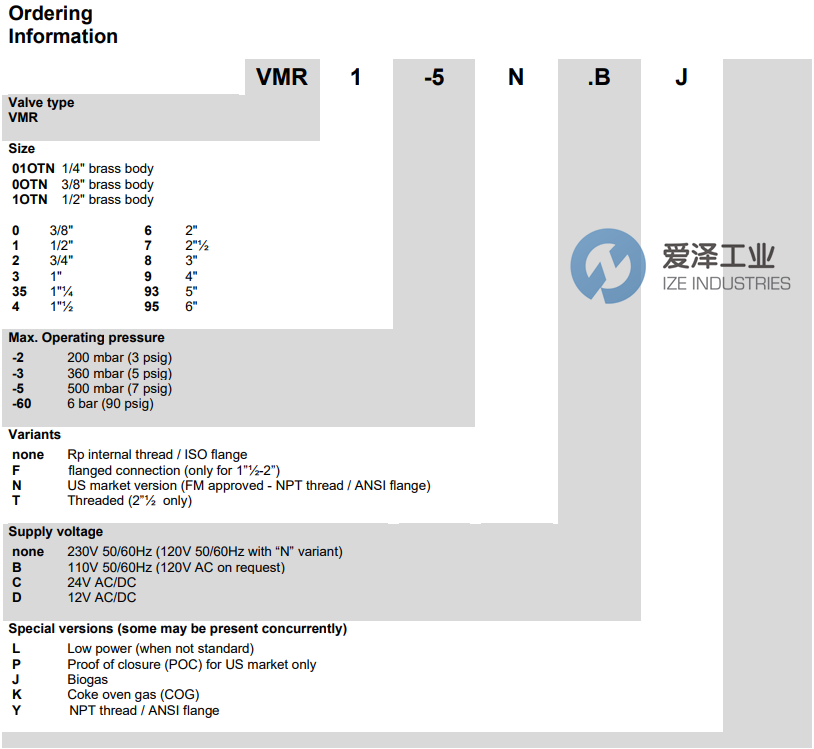

ELEKTROGAS電磁閥VMR系列選型
ELEKTROGAS電磁閥VMR系列其他常用型號：
ELEKTROGAS VMR4-L-5-NL RP1-1/2"
ELEKTROGAS VMR1-5-NC
ELEKTROGAS VMR3 Rp1 230V
ELEKTROGAS VMR4-5
ELEKTROGAS VMR4L-1"1/2
ELEKTROGAS VMR1-5 RP1/2
ELEKTROGAS VMR4-2 RP1 1/2
ELEKTROGAS VMR72-DN65
ELEKTROGAS VMR4L-1 1/2
ELEKTROGAS VMR3 Rp3/8
ELEKTROGAS VMR3 Rp2
ELEKTROGAS VMR3 Rp2?
ELEKTROGAS VMR3 DN40 1
ELEKTROGAS VMR3 DN50 1
ELEKTROGAS VMR3 DN65
ELEKTROGAS VMR3 DN80
ELEKTROGAS VMR3 DN100
ELEKTROGAS VMR3 DN125
ELEKTROGAS VMR3 DN150
ELEKTROGAS Solenoid Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ELEKTROGAS電磁閥VMR4-L-5-NL RP1-1/2"的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ELEKTROGAS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ELEKTROGAS電磁閥VMR系列VMR4-L-5-NL RP1-1/2"技術參數及選型
