NOVOTECHNIK在20世紀50年代將電位器引入通用機械工程領域。從那時起，該公司開發出用于位置電位器和旋轉和線性電位計的技術，在延長的使用壽命內為標準設置了出色的線性度和可靠性。
該公司開發和生產各種旋轉和線性位置電位器，采用接觸和非接觸技術，適用于汽車，機械工程，塑料，醫療設備，液壓，氣動，醫療產品和控制領域的各種運動控制應用行業。
NOVOTECHNIK電位器LWG-0225技術參數
Type | LWG 0225 |
Electr. measuring range [mm] | 229 |
Defined electr. range [mm] | 225 |
Resistance value [[kΩ] | 5 |
Resistance tolerance | ± 20 % |
Independent linearity [± %FS] | 0.07 |
Repeatability | ≤±0.01 mm |
Recommended operating wiper current | ≤1μA |
Max. wiper current in case of malfunction | 10 mA |
Max. permissible supply voltage Ub | 42 VDC |
Effective temp. cofficient of the output-to-applied voltage ratio | typ. 5 ppm/K |
Insulation resistance (500 VDC) | ≥10MΩ |
Dielectric strength (500 VAC, 50 Hz) | ≤100 μA |
Environmental Data | |
Max. operational speed | 5 m/s |
Vibration IEC 60068-2-6 | 20g, 5.... 2000 Hz, Amax = 0.75 mm |
Shock IEC 60068-2-27 | 50g, 11 ms |
Protection class DIN EN 60529 | IP65 |
Operating temperature | -30... +100°C |
Operating humidity | 0.... 95 % R.H. (no condensation) |
Life | typ. > 50 Mio. movements |
NOVOTECHNIK電位器LWG系列介紹
該線性電位器系列的特點是堅固的外殼和通過桿端軸承輕松安裝。 擦拭塊與驅動桿機械分離，無間隙，從而確保高精度和長壽命。 該電位器可用于廣泛的閉環控制應用，包括工業自動化中的線性位置感測、移動電子產品以及速度非?？斓臋C(jī)器人技術，例如模擬器驅動。
特殊功能
? 帶雙滑動軸承和唇形密封的活塞桿和氣缸設計
? 通過具有 ±12.5 度大樞轉角的球形桿端軸承進行無背隙安裝
? 出色的線性度
? 分辨率優于 0.01 毫米
? 壽命長達50 Mio. 運動，取決于應用
? 防護等級 IP65
? 提供電纜或連接器版本
This linear transducer series is characterized by its robust housing and easy mounting via rod end bearings. The wiper block is mechanically decoupled backlash-free from the actuating rod, hereby ensuring high accuracy and long life. The sensor can be used in a wide range of closed-loop control applications, including linear position sensing in industrial automation, mobile electronics and also in very fast robotics, e.g. simulator actuation.
Special Features
? Rod and cylinder design with twin slide bearings and lip seal
? Backlash free mounting via spherical rod end bearings with large pivot angle of ±12.5 degrees
? Outstanding linearity
? Resolution better than 0.01 mm
? Long life up to 50 Mio. movements, depending on application
? Protection class IP65
? Cable or connector version available

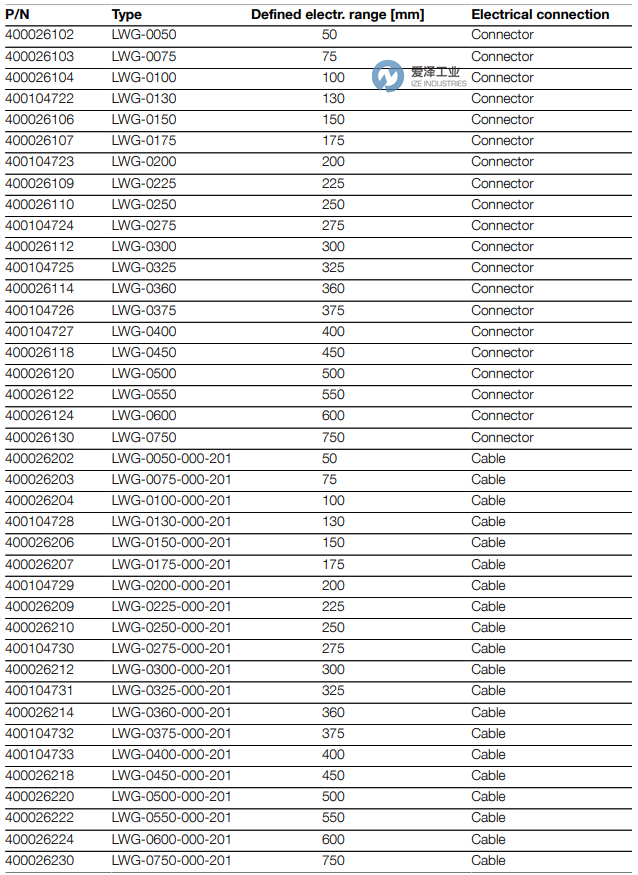

NOVOTECHNIK電位器LWG系列選型
NOVOTECHNIK電位器LWG系列其他常用型號：
NOVOTECHNIK LWG-0100
NOVOTECHNIK LWG-0130
NOVOTECHNIK LWG-0150
NOVOTECHNIK LWG-0175
NOVOTECHNIK LWG-0200
NOVOTECHNIK LWG-0225
NOVOTECHNIK LWG-0250
NOVOTECHNIK LWG-0275
NOVOTECHNIK LWG-0300
NOVOTECHNIK LWG-0325
NOVOTECHNIK LWG-0360
NOVOTECHNIK LWG-0375
NOVOTECHNIK LWG-0400
NOVOTECHNIK LWG-0450
NOVOTECHNIK LWG-0500
NOVOTECHNIK LWG-0550
NOVOTECHNIK Transducer NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NOVOTECHNIK電位器LWG-0225的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NOVOTECHNIK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
