OIL CONTROL成立于1974年(現被博士力士樂收購），在意大利工業領域運動控制閥移動機械市場占有很高的市場容量，且業績?cè)谄嚭凸こ虣C(jī)械行業迅速增長。今天的OIL CONTROL公司，已是移動設備與機械領域的閥門優質供應商，可以提供1600種不同類型的閥門生產與設計。
REXROTH OIL CONTROL的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH OIL CONTROL閥VEI-16-10A-NC系列技術參數
Technical data | |
General | |
Weight | 0.25 kg (0.55 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 2 - 70 l/min (0.53 - 18 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage | 5 drops/min. for X=05 |
Switching time | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 44 - 56 Nm (33 - 41 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
Seal kit for X=05 | code RG10A2010520100 |
Seal kit for X=03, 31 | code RG10A2010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

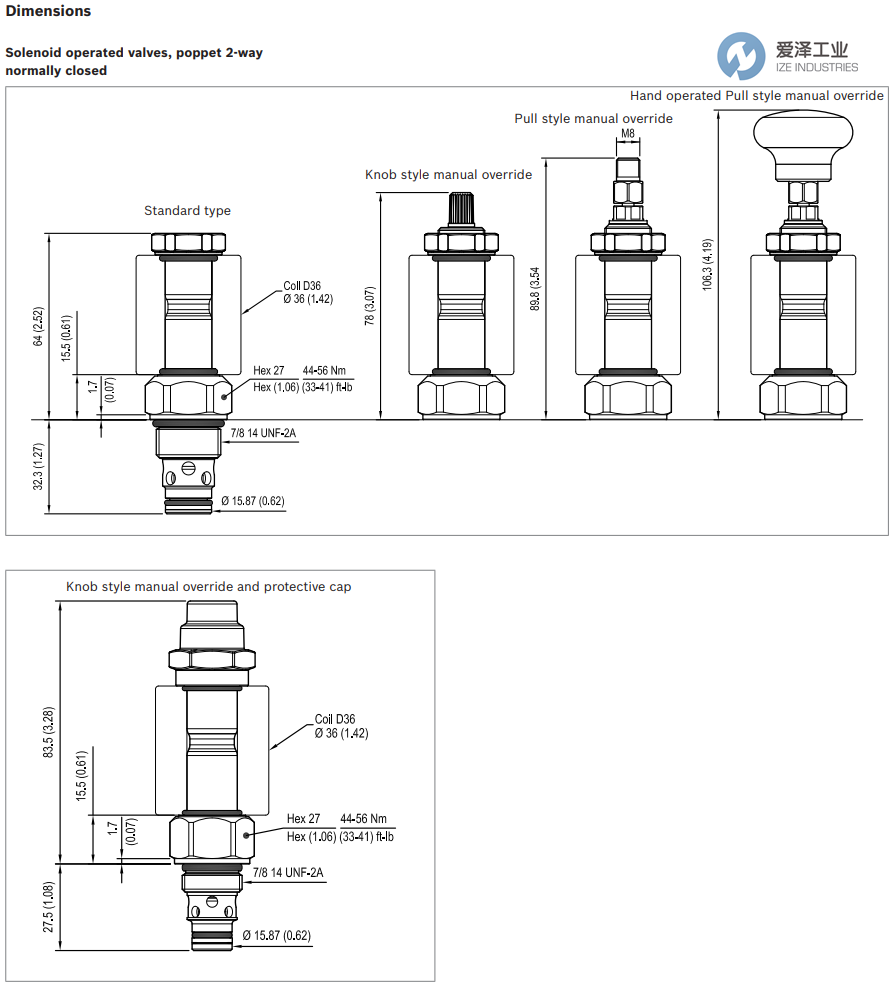

REXROTH OIL CONTROL閥VEI-16-10A-NC系列技術尺寸

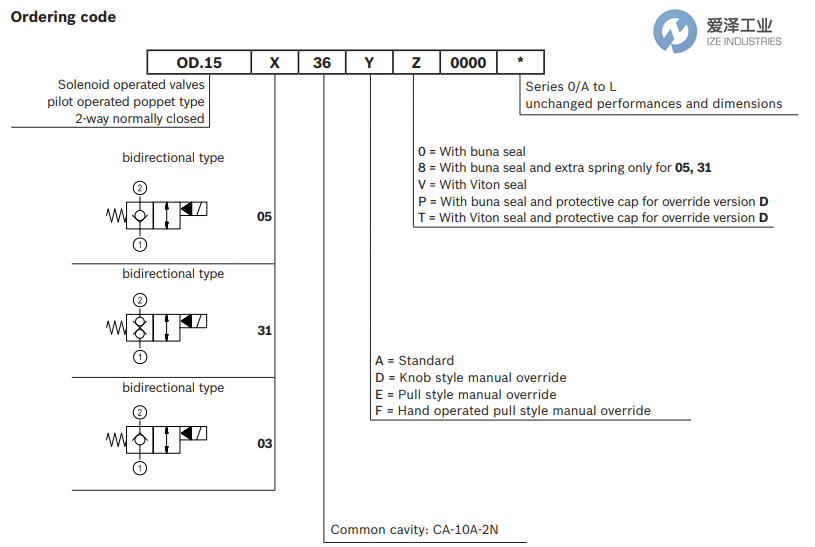

REXROTH OIL CONTROL閥VEI-16-10A-NC系列選型
REXROTH OIL CONTROL閥VEI-16-10A-NC系列其他常用型號：
REXROTH OIL CONTROL OD150536A000000 R930063002
REXROTH OIL CONTROL OD150536D000000 R930062969
REXROTH OIL CONTROL OD150536E000000 R930062947
REXROTH OIL CONTROL OD150536F000000 R930062967
REXROTH OIL CONTROL OD150536DP00000 R930062946
REXROTH OIL CONTROL OD153136A000000 R930065511
REXROTH OIL CONTROL OD153136D000000 R930066658
REXROTH OIL CONTROL OD150336A000000 R930065691
REXROTH OIL CONTROL OD150536A800000 R930065844
REXROTH OIL CONTROL OD153136A800000 R930067585
REXROTH OIL CONTROL OD153136D800000 R930068786
REXROTH OIL CONTROL OD150336D000000 R930071617
REXROTH OIL CONTROL VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH OIL CONTROL閥OD150536A000000 R930063002的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH OIL CONTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
REXROTH OIL CONTROL閥OD150536A000000 R930063002技術參數及選型
