SAMSON集團由SAMSON AG,SAMSON銷售子公司和十家制造公司組成,這些公司為加工公司提供流量控制解決方案。SAMSON Group定制生產,銷售和分銷高質量,模塊化的線性截止閥,旋塞閥,球閥和蝶形控制閥,采用標準和特殊金屬制造,尺寸范圍從微流量到100英寸,甚至更大,適用于水,工藝流體,漿料,石油,天然氣,石化,核能和傳統電力,工業化學,家用和個人化學,食品和飲料,制藥,太陽能,熱能,采礦和金屬以及HVAC行業的蒸汽,蒸汽,工業氣體和低溫氣體應用。
SAMSON:截止閥,旋轉閥,專用閥,執行器,控制閥配件,自力式調節器,測量,控制與操作閥等。
SAMSON定位器3730-3系列技術參數
Travel | |
Adjustable travel for | Direct attachment to Type 3277: 3.6 to 30 mm |
Travel range | Adjustable within the initialized travel/angle of rotation of the valve; travel can be restricted to 1/5 at the maximum. |
Set point w | |
Signal range | 4 to 20 mA · Two-wire device, reverse polarity protection · Minimum span 4 mA |
Static destruction limit | 40 V, internal current limit approx. 40 mA |
Minimum current | 3.75 mA for display/operation (HART? communication and configuration) |
Load impedance | ≤ 9.3 V (corresponds to 465 ? at 20 mA) |
Supply air | |
Supply air | 1.4 to 7 bar (20 to 105 psi) |
Hysteresis | ≤0.3 % |
Sensitivity | ≤0.1 % |
Characteristic | Linear/Equal percentage/Reverse equal percentage/SAMSON butterfly valve |
Transit time | Venting or filling with air adjustable separately up to 240 s by software |
Direction of action | Reversible |
Air consumption, steady state | Independent of supply air approx. 65 ln/h |
Air output capacity (when ?p = 6 bar) | |
To fill actuator with air | 8.5 mn3/h · At Δp = 1.4 bar: 3.0 mn3/h · KVmax(20 °C) = 0.09 |
To vent actuator | 14.0 mn3/h · At Δp = 1.4 bar: 4.5 mn3/h · KVmax(20 °C) = 0.15 |
Requirements | |
EMC | Complying with EN 61000-6-2, EN 61000-6-3, EN 61326-1 and NAMUR Recommendation NE 21 |
Degree of protection | IP 66/NEMA 4X |
Electrical connections | |
Cable glands | One M20x1.5 cable gland for 6 to 12 mm clamping range |
Terminals | Screw terminals for 0.2 to 2.5 mm2 wire cross-section |
Materials | |
Housing and cover | Die-cast aluminum EN AC-AlSi12(Fe) (EN AC-44300) acc. to DIN EN 1706, |
Window | Makrolon? 2807 |
Cable glands | Polyamide, nickel-plated brass, stainless steel 1.4305 |
Other external parts | Stainless steel: 1.4571 and 1.4301 |
Weight | Aluminum housing: approx. 1.0 kg · Stainless steel housing: approx. 2.2 kg |
SAMSON定位器3730-3系列介紹
帶HART通信的智能定位器
SAM數字就緒
壓鑄鋁或不銹鋼外殼
根據IEC 60534-6、VDI/VDE 3847或SAMSON整體附件連接到線性執行器
根據VDI/VDE 3845連接到旋轉執行器
連接到帶3710型反向放大器的雙作用執行器
用于控制閥的集成EXPERTplus診斷
非接觸式位置感應
帶有NAMUR Recommendation NE 107狀態和設備消息的純文本顯示
集成診斷功能
簡單的一鍵式菜單驅動操作
由于可選擇的讀取方向,LCD 在任何安裝位置都易于讀取
可使用TROVIS-VIEW軟件通過SSP接口在計算機上進行配置
具有四種不同初始化模式的可變自動啟動
Sub(替代)初始化模式允許定位器在緊急情況下在工廠運行時啟動,而無需改變閥門位置。
所有參數保存在非易失性EEPROM中
具有465 Ω小電氣負載的兩線制系統
可調緊閉功能
連續零位監控集成溫度傳感器和運行時間計數器
自我診斷,消息作為壓縮狀態符合 NAMUR 建議 NE 107
Smart positioner with HART? communication
SAM DIGITAL READY
Die-cast aluminum or stainless steel housing
Attachment to linear actuators according to IEC 60534-6, VDI/VDE 3847, or SAMSON integral attachment
Attachment to rotary actuators according to VDI/VDE 3845
Attachment to double-acting actuators with Type 3710 Reversing Amplifier
Integrated EXPERTplus diagnostics for control valves
Non-contact position sensing
Plain-text display with NAMUR Recommendation NE 107 states and messages on the device
Integrated diagnostic functions
Simple one-knob, menu-driven operation
LCD easy to read in any mounting position thanks to selectable reading direction
Configurable with a computer over the SSP interface using the TROVIS-VIEW software
Variable, automatic start-up with four different initialization modes
Sub (substitution) initialization mode allows the positioner to be started up in case of emergency whilst the plant is running without having to change the valve position.
All parameters saved in non-volatile EEPROM
Two-wire system with a small electrical load of 465 ?
Adjustable tight-closing function
Continuous zero monitoring ntegrated temperature sensor and operating hours counter
Self-diagnostics, messages as condensed state conforming to NAMUR Recommendation NE 107

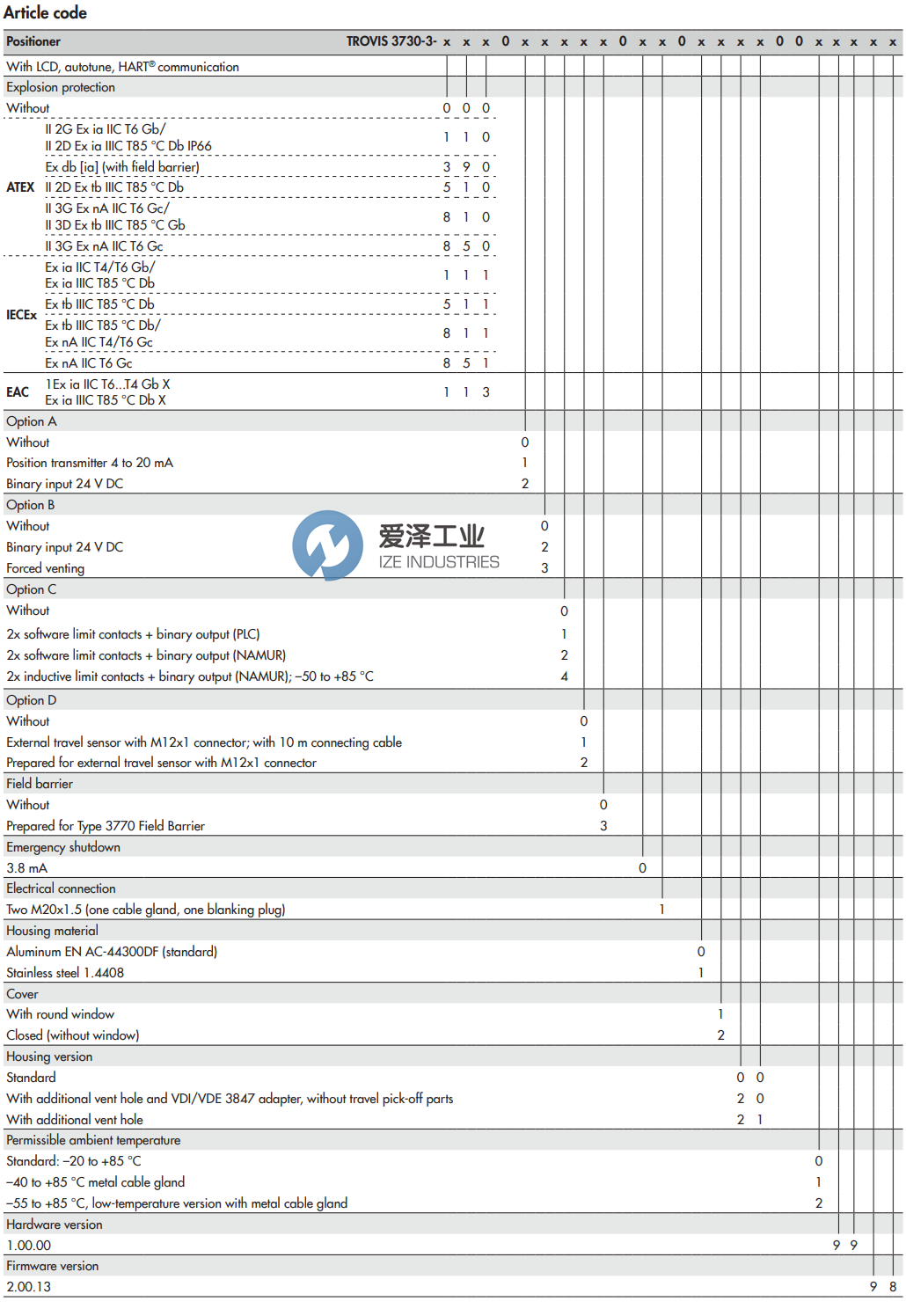

SAMSON定位器3730-3系列選型
SAMSON定位器3730-3系列其他常用型號:
SAMSON 3730-31001000400000009.04
SAMSON 3730-3100000040000009.01
SAMSON 3730-31000000400000009.03
SAMSON 3730-31001100400000000.03
SAMSON Locator NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SAMSON定位器3730-31001100400000000.03的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for SAMSON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SAMSON定位器3730-3系列3730-31001100400000000.03技術參數及選型
