霍尼韋爾(HONEYWELL)為全球客戶提供相關行業解決方案,涵蓋航空和汽車產品及服務,樓宇、住宅和工業控制技術,以及特性材料。從飛機、汽車、住宅、樓宇、制造工廠、供應鏈到人員,HONEYWELL的技術致力于萬物互聯,創造一個更智能、更安全和更可持續發展的世界。
HONEYWELL的主要產品有:傳感器,繼電器,電機,行程開關,限位開關,壓力開關,溫控儀,點火控制器,變壓器,模塊,放大器,閥,火焰探測器,執行器等。
HONEYWELL電機EM3-90LA2-AS技術參數
Model | EM3-90LA2-AS |
Rated power kW | 2.2 |
Rated current A | 4.58 |
Efficiency (100%) | 85.9 |
Efficiency (75%) | 86.2 |
Power factor Cosφ | 0.85 |
Rated speed r/min | 2915 |
Starting current multiple Is/In | 8.5 |
Rated torque N.m | 7.3 |
Starting torque multiple Ts/Tn | 2.6 |
Maximum torque multiple Tm/Tn | 3.5 |
Weight Kg | 19 |
HONEYWELL電機EM系列介紹
特點
- 高效節能 (IE3 和 IE2 能效,符合 GB18613-2012《中小型三相異步電動機能效限定值及能效等級》2 級和 3 級標準 )
- 高可靠性 ( 采用霍尼韋爾最高質量等級生產 )
- 輕巧靈便 ( 比同規格的鑄鐵電機重量減輕 30%)
- 低振動低噪聲 ( 創造友好的工作環境 )
- 節能環保,綠色清潔 ( 電機達到同樣的效率,制造過程中所需能源消耗更低、排放和污染更少 )
Characteristics
- High efficiency and energy saving (IE3 and IE2 energy efficiency, in line with GB18613-2012 "Limited Values and Energy Efficiency Levels of Small and Medium-sized Three-phase Asynchronous Motors" Level 2 and Level 3 standards)
- High reliability (produced with Honeywell's highest quality grade)
- Lightweight and flexible (30% lighter than cast iron motors of the same specification)
- Low vibration and low noise (create a friendly working environment)
- Energy saving and environmental protection, green and clean (the motor achieves the same efficiency, lower energy consumption, less emissions and pollution in the manufacturing process)

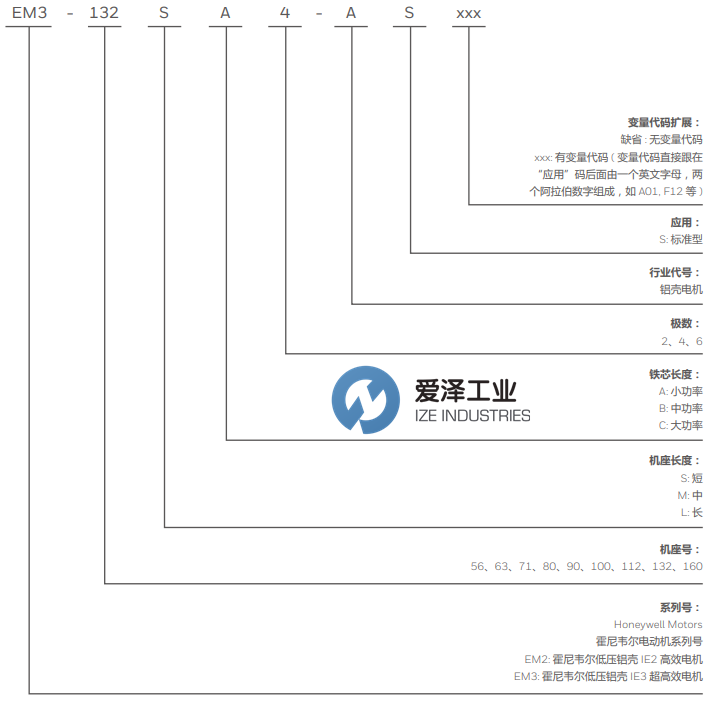

HONEYWELL電機EM系列選型
HONEYWELL電機EM系列其他常用型號:
HONEYWELL EM3-80MA2-AS
HONEYWELL EM3-80MB2-AS
HONEYWELL EM3-90SA2-AS
HONEYWELL EM3-90LA2-AS
HONEYWELL EM3-100LA2-AS
HONEYWELL EM3-112MA2-AS
HONEYWELL EM3-132SA2-AS
HONEYWELL EM3-132SB2-AS
HONEYWELL EM3-160MA2-AS
HONEYWELL EM3-160MB2-AS
HONEYWELL EM3-160LA2-AS
HONEYWELL EM3-80MB4-AS
HONEYWELL EM3-90SA4-AS
HONEYWELL EM3-90L A4-AS
HONEYWELL EM3-100LA4-AS
HONEYWELL EM3-100LB4-AS
HONEYWELL EM3-112MA4-AS
HONEYWELL EM3-132SA4-AS
HONEYWELL EM3-132MA4-AS
HONEYWELL EM3-160MA4-AS
HONEYWELL EM3-160LA4-AS
HONEYWELL MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
