GENERANT成立于1930年，為各種行業設計和制造閥門，壓力調節器和儀表管配件，在工業和醫療氣體，低溫，能源，醫療設備和化學加工方面的應用經驗指導了創新的解決方案。
GENERANT安全閥Brass CRV系列技術參數
Nominal Set Pressure Range: | 10 – 750 PSIG (0.7 to 51.7 Bar) |
Factory Set Tolerance: | Set Pressure ≤ 28.90 PSI, ± 5% NOTE: Tolerance specifications per EN ISO 4126-1. |
Zero Leakage to 95% of Set Pressure | |
Full Rated Flow @ 110% of Set Pressure Unaffected by up to 10% Back Pressure | |
Reseat: | 90% of set pressure |
Temperature Rating: | -320o to 350o F (-196o C to 176o C) |
Lubricant: | Krytox? |
GENERANT安全閥Brass CRV系列介紹
描述
Generant 黃銅 CRV 系列低溫安全閥是一種彈簧參考過壓保護裝置。 CRV 結合了獨有的“污垢防護”以防止系統碎片，非常適合作為低溫系統中的“安全阻塞線路”。 CRV 按照 O2 服務標準提供清潔和包裝。該閥門可在工廠預設為 10 至 750 Psig（0.7 至 51.7 Bar）并永久鎖定。閥座和提升閥幾何形狀與優化的彈簧范圍相結合，可提供高流量和微小的壓力積累。釋放壓力可以排放到大氣或下游連接。
CRV 配有用于 10 – 49 Psig (0.7 – 3.4 Bar) 的設定壓力的氟硅酮密封件和用于 50 – 750 Psig (3.5 – 51.7 Bar) 的設定壓力的 PCTFE 密封件。
特征
? 可用的CE 標志：“CE 標志”符合壓力設備指令(PED) 的要求。
? 獨家“DIRT GUARD”提升閥：包含提升閥網以延長閥門壽命并確?？煽啃?。
? 針對高流量進行了優化：高流量和出色的復位性能。
? 防篡改：提供工廠預設并永久鎖定以進行防篡改服務。
? 可配置：排放到大氣或多種入口和出口管道配置，可選的導流帽可用于轉移廢氣。
? 100% 工廠測試：針對泄漏、裂紋和復位性能進行了測試。
? 與氧氣服務兼容：清潔和包裝符合氧氣服務標準。
Description
The Generant Series Brass CRV, Cryogenic Relief Valve is a spring reference over pressure protection device. Incorporating the exclusive “Dirt Guard” to protect from system debris, the CRV is ideally suited as a “Blocked Line Safety” in cryogenic systems. The CRV is supplied cleaned and packaged for O2 service standard. This valve can be ordered factory preset from 10 to 750 Psig (0.7 to 51.7 Bar) and are permanently locked. Seat and poppet geometry combined with optimized spring ranges provide high flow with minimum pressure accumulation. Relief pressure can be discharged to atmosphere or to a downstream connection.
The CRV is supplied with Flourosilicone seals for set pressures from 10 – 49 Psig (0.7 – 3.4 Bar) and PCTFE seals for set pressures 50 – 750 Psig (3.5 – 51.7 Bar).
Features
? AVAILABLE CE MARKED: “CE Marked” in accordance with the requirements of the Pressure Equipment Directive (PED).
? EXCLUSIVE “DIRT GUARD” POPPET: Incorporates a poppet screen to extend valve life and ensure reliability.
? OPTIMIZED FOR HIGH FLOW: High Flow Capacity and Excellent Reseat Performance.
? TAMPER PROOF: Supplied Factory Preset and Permanently Locked for Tamper Proof Service.
? CONFIGURABLE: Discharge to Atmosphere or a Wide Variety of Inlet and Outlet piping configurations, Optional Deflector Cap available for diverting exhausted gas.
? 100% FACTORY TESTED: Tested for Leakage, Crack and Reseat performance.
? OXYGEN SERVICE COMPATIBLE: Cleaned and Packaged for Oxygen Service standard.

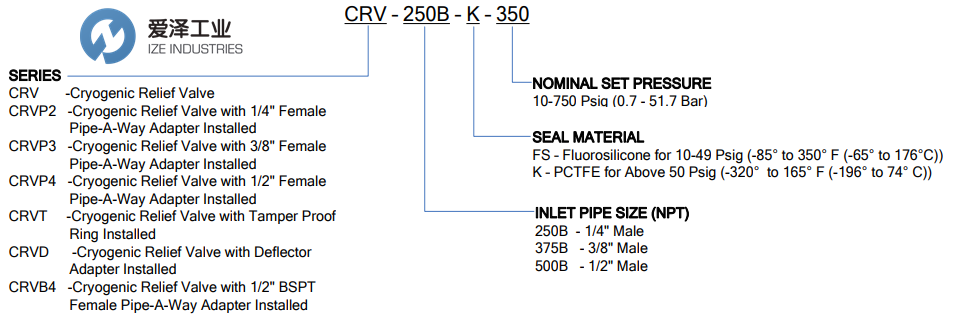

GENERANT安全閥Brass CRV系列選型
GENERANT安全閥Brass CRV系列其他常用型號：
GENERANT CRV-500B-K-116
GENERANT CRV-500B-K-450
GENERANT CRV-500B-K-150
GENERANT CRV-250B-K-150
GENERANT CRV-500B-K-200
GENERANT CRV-250B-K-400
GENERANT RELIEF VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GENERANT安全閥CRV-500B-K-116的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GENERANT products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
GENERANT安全閥Brass CRV系列CRV-500B-K-116技術參數及選型
