REXROTH壓力傳感器HM20系列技術參數
Input variables | |
Operating voltage | 18 … 36 VDC 1) |
Current consumption Imax | ≤ 12 mA (with voltage output) |
Protection class | III |
Isolation resistance R | >100 MΩ (500 VDC) |
Measurement range pN [bar] | 250 |
Overload protection pmax [bar] | 500 |
Bursting pressure p [bar] | 1000 |
Output parameters | |
Output signal and admissible load RA | 4 … 20 mA RA = (US – 8.5 V) / 0.0215 A with RA in Ω and US in V |
Setting time (10 to 90 %) | < 1 ms |
Accuracy (characteristic curve deviation) | < 0.5 % |
Temperature coefficient (TC) for zero point and range | within the nominal temperature range < 0.1 % / 10 K |
Hysteresis | < 0.15 % 2) |
Non-repeatability | < 0.05 % 2) |
Long-term drift (1 year) under reference conditions | < 0.1 % |
Environmental conditions | |
Nominal temperature range | –20 ... +80 °C |
Ambient temperature range | –40 ... +85 °C |
Storage temperature range | –40 ... +100 °C |
Hydraulic fluid temperature range | –40 ... +90 °C |
Other characteristics | |
Pressure port | G1/4 according to DIN 3852 form E, |
Weight | 0.06 kg |
REXROTH壓力傳感器HM20系列介紹
特點
測量液壓系統中的壓力
8個測量范圍，最高可達630巴
帶有薄膜測量單元的傳感器
與介質接觸的部件均由不銹鋼制成
通過高破裂壓力、反極性、過電壓和短路保護來確保操作安全
精度等級0.5
優秀的非重復性<0.05%
較寬的工作溫度范圍-40……+85C
Features
Measuring pressures in hydraulic systems
8 measurement ranges up to 630 bar
Sensor with thin film measuring cell
Components that are in contact with the media are made of stainless steel
Operational safety due to high bursting pressure, reversed polarity, over voltage and short-circuit protection
Accuracy class 0.5
Excellent non-repeatability < 0.05 %
Wide operating temperature range –40 ... +85 °C

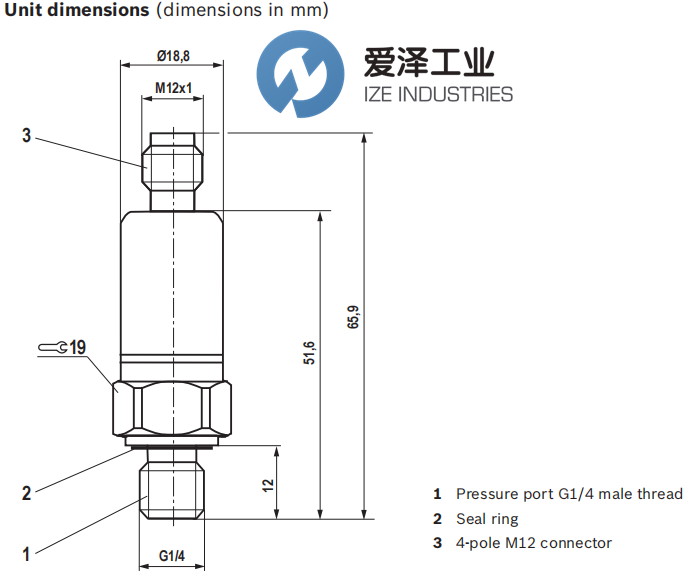

REXROTH壓力傳感器HM20系列技術尺寸

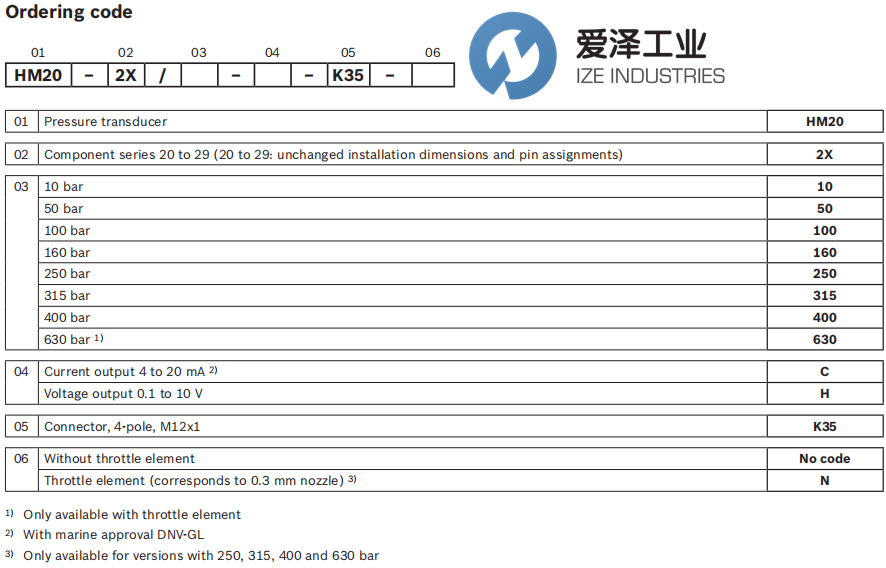

REXROTH壓力傳感器HM20系列選型
REXROTH壓力傳感器HM20系列其他常用型號：
REXROTH HM20-21/050-C-K35
REXROTH HM20-21/100-C-K35
REXROTH HM20-21/100-H-K35
REXROTH HM20-21/250-C-K35
REXROTH HM20-21/250-H-K35
REXROTH HM20-21/315-C-K35
REXROTH HM20-21/315-H-K35
REXROTH HM20-21/400-C-K35
REXROTH HM20-21/400-C-K35
REXROTH HM20-21/400-H-K35
REXROTH HM20-21/630-C-K35-N
REXROTH HM20-21/630-C-K35-N
REXROTH HM20-21/630-H-K35-N
