REXROTH壓力傳感器HM17系列技術參數
Input variables | |
Auxiliary power | UB 19 to 36 VDC (8 to 36 VDC with output 0.5 to 5 V) |
Current consumption | I 4 mA (with voltage output) |
Dead volume | V ca. 200 mm3 |
Output variables | |
Output signal and permissible max load RA | 4 to 20 mA, two-wire RA = (UB - 10 V)/0.02 A with RA in Ohm and UB in Volt |
Balancing error: | –Zero point < 0.15 % 1) |
Temperature coefficients in the nominal temperature range | –Highest TC of the zero point < 0.2 %/10 K |
Characteristic curve deviation | typ. < 0.2 % 1) (limit point setting) |
Hysteresis | < 0.1 % 1) |
Repeatability | < 0.05 % 1) |
Adjustment time (10 to 90 %) | t < 2 ms |
Long-term drift (1 year) under reference conditions | < 0.2 % 1) |
Ambient conditions | |
Nominal temperature range | -20 to +80 °C |
Limit temperature range | -40 to +85 °C |
Storage temperature range | -40 to +100 °C |
Hydraulic fluid temperature range | -40 to +90 °C |
Mechanical data | |
Tightening torque | 10 Nm |
Shock load capacity | 1000 g as per IEC 60068-2-27 |
Vibration capacity | 20 g as per IEC 60068-2-6 |
Electrical connection | 4-pin M12 component plug on housing 2) |
Weight | 0.05 kg |
REXROTH壓力傳感器HM17系列介紹
特點
適用于測量液壓系統中的壓力
將壓力轉換為電模擬信號（例如用于控制和儀表技術）
薄膜技術傳感器
殼體上的4針M12組件插頭
精度等級0.5
最大測量范圍。高達600bar
連接線G1/4
與流體接觸的部件是由不銹鋼制成的
緊湊型建筑
由于高爆破壓力和極性反轉、過電壓和短路保護，運行可靠性
CE標記
Features
Suitable for measuring pressures in hydraulic systems
Conversion of a pressure into an electrical analogue signal (e.g. for use in control and instrumentation technology)
Sensor in thin-film technology
4-pin M12 component plug on housing
Accuracy class 0.5
Measuring range max. up to 600 bar
Connecting thread G1/4
Parts that come into contact with fluids are made of stainless steel
Compact build
Operational reliability due to high bursting pressure and polarity reversal, overvoltage and short-circuit protection
CE mark

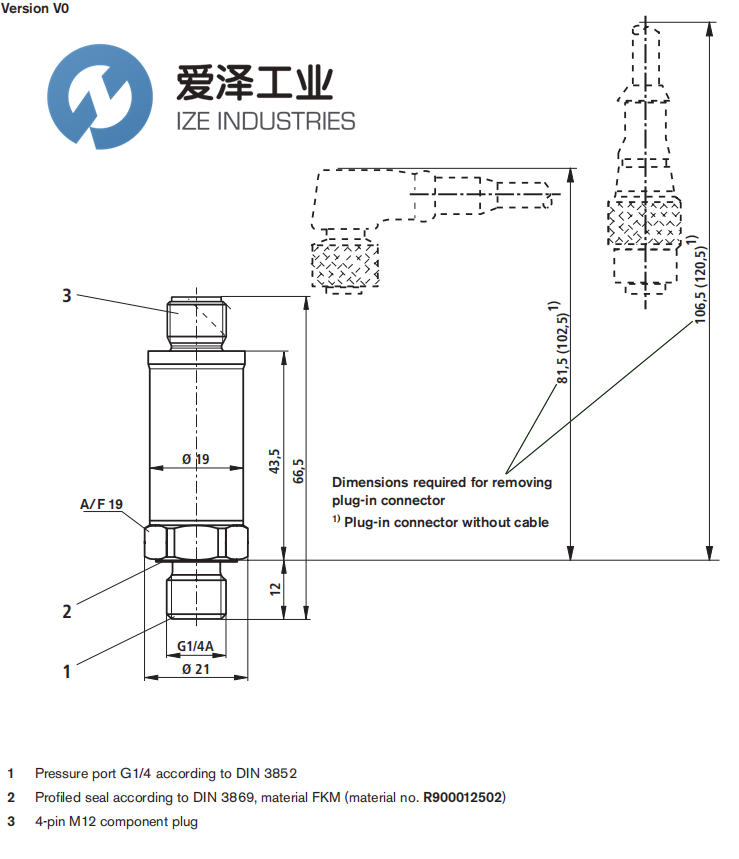

REXROTH壓力傳感器HM17系列技術尺寸

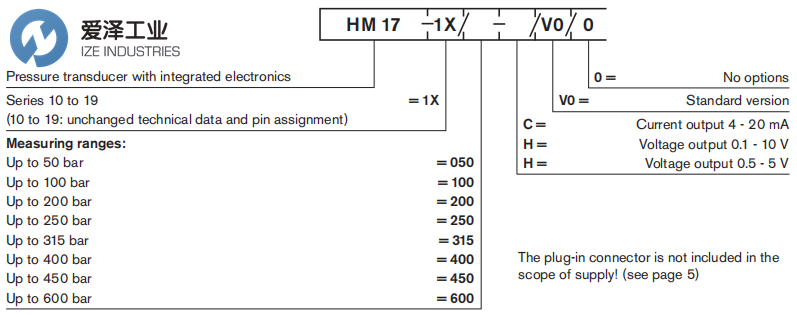

REXROTH壓力傳感器HM17系列選型
REXROTH壓力傳感器HM17系列其他常用型號：
REXROTH HM17-10/200-C/V0/0 R900773062
REXROTH HM17-C/HM20-C R961010121
REXROTH HM17-11/400 R900773066
REXROTH Pressure transducer NEW + ORIGINAL+ ONE YEAR WARRANTY
