MOLYKOTE潤滑脂1000產品參數
Specification | |||
Standard | Test | Unit | Result |
Color | Brown | ||
Penetration, density | |||
ISO 2137 | Unworked penetration | mm/10 | 280-310 |
ISO 2811 | Density at 20°C (68°F) | g/ml | 1.26 |
Temperature | Service temperature | °C | -30 to 650 |
range | °F | -22 to 1,202 | |
Load-carrying capacity, wear protection, service life | |||
Four-ball tester | |||
DIN 51 350 pt.4 | Weld load | N | 4800 |
DIN 51 350 pt.5 | Wear scar under 400 N load | mm | 0.65 |
Almen-Wieland machine | |||
OK load | N | 20000 | |
Frictional force | N | 2600 | |
Coefficient of friction | |||
Screw test - μ thread | 0.13 | ||
Screw test - μ head | 0.08 | ||
Initial break-away torque | Nm | 135 | |
DIN 51 802 | SKF-Emcor method | 1 | |
MOLYKOTE潤滑脂1000產品介紹
MOLYKOTE 1000固體潤滑劑膏是一種無鉛和無鎳的防粘膏，可用于減少磨損并優化螺紋緊固件或其他金屬對金屬接頭的摩擦，即使長時間暴露在高溫下也可實現無損拆卸。在高負載下，在寬溫度范圍內提供良好的腐蝕防護。
適用于承受最高650°C（1,202°F）高溫并具有腐蝕作用的螺栓連接-在組裝和初次操作后必須重新擰緊或斷開連接。為了確保恒定的預應力，潤滑劑的摩擦系數必須一致且穩定。成功地用于氣缸蓋螺栓，塑料注塑機的噴嘴頭螺栓，化學工業中的螺栓連接以及離心機的張緊環。
MOLYKOTE 1000 Solid Lubricant Paste is a lead- and nickelfree anti-seize paste used to reduce wear and optimize friction of threaded fasteners, or other metal-to-metal joints, enabling nondestructive dismantling, even after long exposure to high temperatures. It offers good corrosion protection, under high loads, over a wide temperature range.
Suitable for bolted joints that are subjected to high temperatures up to 650°C (1,202°F) and to corrosive effects – and that after assembling and the initial operation, have to be retightened or disconnected. In order to ensure constant pre-stressing forces,uniform and steady coefficients of friction of the lubricant are necessary. Used successfully for cylinder head bolts, nozzle head screws of plastic injection molding machines, bolted joints in the chemical industry, and also for the tension rings of centrifuges.
MOLYKOTE潤滑脂其他常見型號：
MOLYKOTE 1000 Paste
MOLYKOTE 1000 Spray
MOLYKOTE 1000 Thread Lubricant
MOLYKOTE 1000 Thread Paste

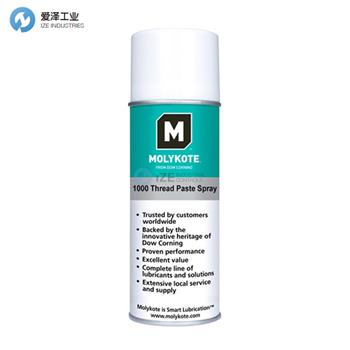

MOLYKOTE 1000 Thread Paste Spray
MOLYKOTE 7365
MOLYKOTE 7375
MOLYKOTE 908
MOLYKOTE CU-7439
MOLYKOTE Solid Lubricant Paste NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MOLYKOTE潤滑脂1000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MOLYKOTE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
