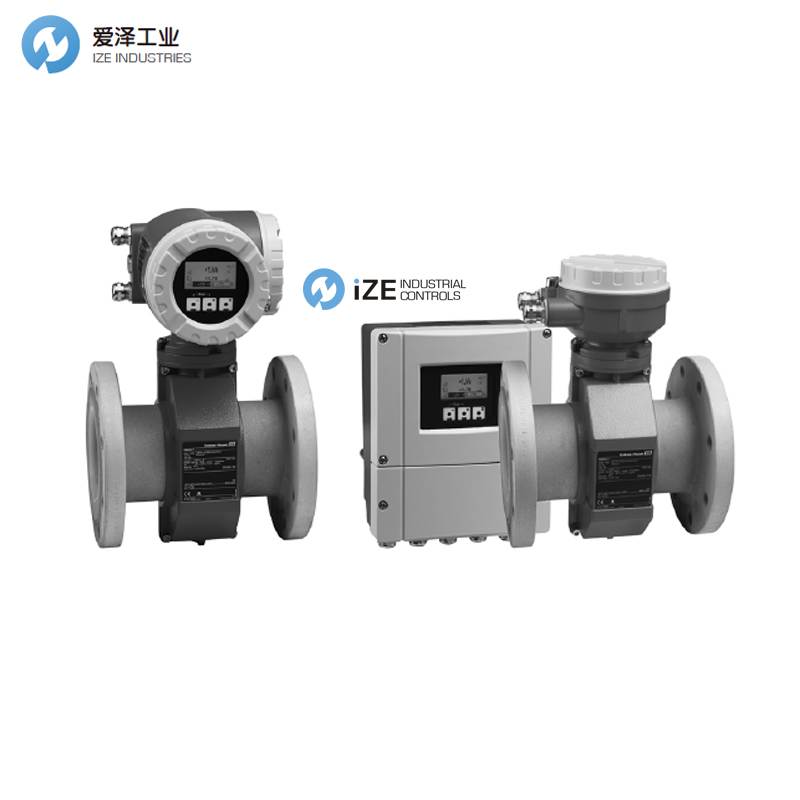

E+H電磁流量計50E系列介紹及參數

Promag E是應用于化工行業的標準傳感器。為化工客戶提供最經濟的解決方案。與按鍵操作的Promag 50變送器配套使用，Promag 50E在許多標準應用場合中能提供高精度液體測量。Promag 50E提供一體式或分體式儀表。

優勢

經濟型傳感器：基本要求的理想解決方案

節能的流量測量：不會因管道橫截面積限制而產生壓損

免維護：無可移動部件

快速調試：針對應用的快速設置

操作安全：顯示可讀過程信息

完全符合工業標準：IEC/EN/NAMUR

應用領域

雙向測量原理不受壓力、密度、溫度和粘度的影響

完全適用于化工和過程行業中的基本應用

設備特性

標稱口徑：max.DN 600 (24") (四線制) ；標稱口徑：max.DN 200 (8") (兩線制)

PTFE內襯

兩行背光顯示，按鍵操作

提供一體式或分體式儀表

HART、PROFIBUS DP/PA通信

特征和規格

測量原理：電磁開關

公稱口徑范圍：DN 15 to 600 (? to 24")

測量變量：Volume flow

最大測量誤差：Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

測量范圍：4 dm3/min to 9600 m3/h (1 to 44 000 gal/min)

最大過程壓力：PN 40, Class 150, 20K

介質溫度范圍：–10 to +110 °C (+14 to +230 °F)

環境溫度范圍：–10 to +60 °C (+14 to +140 °F)

傳感器外殼材質：AlSi10Mg, coated; carbon steel with protective coating

變送器外殼材質：Powder‐coated die‐cast aluminum

輸入：Status input

電源：DC 16 to 62 V

AC 85 to 260 V (45 to 65 Hz)

AC 20 to 55 V (45 to 65 Hz)

危險區認證：ATEX, cCSAus

產品安全性：CE, C-tick, EAC marking

計量認證和證書：Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

壓力認證和證書：PED

E+H電磁流量計50E系列 示例50E40-8A0A1AA0AAA

愛澤工業(IZE INDUSTRIES)特價經銷、常用E+H流量計型號：

E+H電磁流量計50w50-UA0A1AA0AAAW

E+H電磁流量計50P2H-EC0A1AA0AAA3

E+H電磁流量計50P80-EC0A1AA0AAAA

E+H電磁流量計50P2H-EC0A1AA0AAAA

E+H電磁流量計50P1Z-EC0A1AA0AAAA

E+H電磁流量計50P50-EA1A1AA0BAAA

E+H電磁流量計50P80-EA1A1AA0BAAA

E+H電磁流量計50W50-UA0A1AA0AAAW

E+H電磁流量計50P80-EC3A1AA0AAAA

E+H電磁流量計50P2h-EC3A1AA0AAAA

E+H電磁流量計50P1Z-EC3A1AA0AAAA

E+H電磁流量計50H100-1F0A1AA0AAAW

E+H電磁流量計50WT8-HE0B1AK6AAAH L=1500

E+H電磁流量計50WT2-HE0B1AK6AAAH L=1500

E+H電磁流量計50W2H-UD0B1AK6AAAH L=1500

E+H電磁流量計50P25-AS0A1BA0AAAW

E+H電磁流量計50P1F-EM0A1BA0AAAW

E+H電磁流量計50P80-EC0A1AA0AAAA

E+H電磁流量計50P25-EA0A1AA0AAAW

E+H電磁流量計50W4H-UD0A1HK2CAAA

E+H電磁流量計50P40-ER2A1RA0BEAW

E+H電磁流量計50W65-HC0A1AA0AAAW

E+H電磁流量計50W65-UC0A1AA0AAAW

E+H電磁流量計50W65-HCOA1AA0AAAD

E+H電磁流量計50W80-HCOA1AA0AAAD

E+H電磁流量計50W2h-HCOA1AA0AAAD

E+H電磁流量計50P25-AF1A1AA0ABAW

E+H電磁流量計50P25-ECA01AA0ABAA

E+H電磁流量計50P25-ECA11AA0ABAA

E+H電磁流量計50H65-1F0A1AA0AAAA

E+H電磁流量計50H50-1F0A1AA0AAAA

E+H電磁流量計50W2H-HD0A1AK2AAAA

E+H電磁流量計50W8H-HD0A1AK2AAAA

E+H電磁流量計50W3H-HD0A1AK2AAAA

E+H電磁流量計50P15-EA0A1AA0AAAW

E+H電磁流量計50P50-EA0A1AA0AAAA

E+H電磁流量計50W7H-UD0A1AA0AAAW

E+H電磁流量計50W4F-UD0A1AA0ACAW

E+H電磁流量計50P25-EA0A1AA0ABAD

E+H電磁流量計50W2F-HC0A1AA0AAAW

E+H電磁流量計50W1H-UC0A1AA0AAAW

E+H電磁流量計50W1F-HA0A1AA0AAAW

E+H電磁流量計50W50-UA0A1AA0AAAW

E+H電磁流量計50H15-DB0A1AA0A3AA

E+H電磁流量計50P50-EA0A1AA0AAAA

E+H電磁流量計50H1H-0F0A1AB0AAAA

E+H電磁流量計50W1H-UC0A1AA0AAAA

E+H電磁流量計50P1H-EC0A1AA0AAAA

E+H電磁流量計50W50-UA0A1AA0AAAA

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的首選渠道。

如果有任何關于E+H流量計電磁流量計50E系列 示例50E40-8A0A1AA0AAA的疑問，請隨時與我們聯系，（021-3100 6702），我們將盡全力解決您的問題。

有關E+H流量計電磁流量計50E系列 示例50E40-8A0A1AA0AAA更詳細的信息或者購買E+H流量計電磁流量計50E系列 示例50E40-8A0A1AA0AAA關產品，請聯系愛澤工業。
