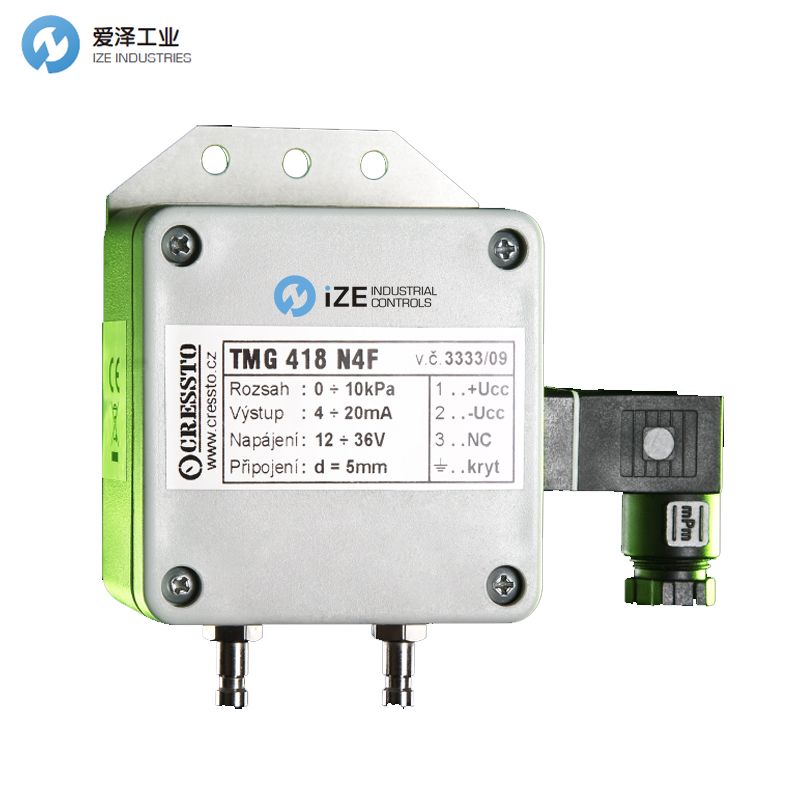

CRESSTO壓力表TMS系列簡介

壓力開關是一個組件，它將輸入時的當前壓力或壓力差與預設水平進行比較，如果輸入壓力低于或高于此水平，則輸出返回信息。與機械開關相比，這種電子開關具有更高的精度和可靠性以及更好的長期穩定性。通過電源執行器正確連接，此開關可作為布爾反饋調節器運行。

該儀器設計用于廣泛應用于一系列非常小的壓力下的測量和調節，特別是在空調，通風，燃燒過程控制，設備設計等方面。許多應用都提供醫療技術和實驗室測量。該傳感器設計用于測量壓差，這一事實還包括測量相對壓力的要求。然而，沒有確定高的共同壓力測量值，例如壓力分布系統中的孔板量規的測量值?？梢灾圃靿毫Ψ秶哂?00kPa的開關，但僅作為量具。被測介質可以是非腐蝕性氣體。在制造商應咨詢使用在高于2.5 kPa的壓力下允許的非腐蝕性液體。

整個換能器，即壓力傳感器，電源，補償和放大電路以及用于提高抗噪性的濾波器放置在聚碳酸酯的小塑料盒中，該塑料盒可以安裝在面板或DIN條帶上。壓力供應由直徑5毫米的鍍鎳黃銅進口實現，適用于小軟管，可能是較高壓力的快速接頭。此外，介質與硅，硅橡膠和塑料物質聚醚酰亞胺接觸。

通過帶有電纜出口PG7的DIN 43650-C型密封固定微型連接器實現與測量電路的電連接，該電纜出口PG7可以使用直徑最大的電纜。 6.5毫米。

這種類型的儀器通過壓電原理上的硅膜來測量壓力。因此，該換能器具有良好的過載耐久性，抗振動并且可以在任意位置工作。對于一些應用來說，利用一個換能器測量正壓和負壓是有利的。電子電路通過表面安裝技術實現。

輸出實現為具有開路集電極的NPN晶體管。這種類型的輸出允許簡單地實現邏輯電平，用于直接輸入到穩壓器或連接繼電器以用于功率驅動器。在殼體的右側是LED，其指示晶體管開關接通狀態。隱含地將開關設置為晶體管開關 - 隨著壓力增加超過預設水平。輸出信號可以通過分流跳線來抵消。固定滯后cca 1.5％來自標稱范圍是內置的，以防止在通過切換級別時發生振蕩。通過多匝微調電位器實現開關電平調節，可通過右側的孔，LED旁邊進行調節。為了保持高IP保護，這個孔被M3螺釘覆蓋，這必須在調整拆卸期間。開關電平調整可以直接在制造商處訂購，可以通過實驗或外部壓力表分別通過帶有測量內部電壓的外部直流電壓表進行調整，并根據公式重新計算，該公式位于本文件的背面。配有LCD的壓力開關可通過按下內部按鈕顯示調節的水平。

開關可以由12-36V范圍內的DC電壓供電。在此范圍內的電源電壓的變化對測量精度沒有任何實際影響。在蓋子下面，放置了短路跳線，用于選擇阻尼時間常數。

Pressure switch is a component, which compares current pressure or pressure difference on input with preset level and output returns information if input pressure is below or above this level. In comparison with mechanical switches this electronic one has higher accuracy and reliability and better long term stability. With power actuator proper connection may this switch operate as a boolean feedback regulator.

This instrument is designed for a wide application in a branch of measurement and regulation in a range of very small pressures, especially in air-conditioning, ventilation, combustion process control, appliance design, etc. Many applications are offered in a medical technology and in the laboratory measurements. This transducer is designed for measurement of the differential pressure and this fact also includes a requirement for measurement of the relative pressures. However, it is not determined for a high common pressure measurement, such as measurement on the orifice gauges in the pressure distribution systems. It is possible to manufacture switches with pressure range higher then 100kPa, but only as a gage. The medium being measured may be a non-aggressive gas. Use of the non-aggressive liquid, which is permitted in the pressures higher than 2.5 kPa, should be consulted with manufacturer.

The whole transducer, i.e. a pressure sensor, supply, compensation and amplifying circuits as well as a filter for increase of the noise immunity are placed in a small plastic box from polycarbonate, which may be installed on a panel or DIN strip. The pressure supplies are realized by the nickel-plated brass inlets with a diameter 5 mm, which are suitable for use of a small hose, possibly a quick coupling for higher pressures. In addition, the medium comes into contact with silicon, silicone rubber and a plastic substance polyetherimide.

Electric connection into the measuring circuit is realized by a sealing arrested miniature connector type DIN 43650 - C with a cable outlet PG7, which enables to use a cable with a diameter max. 6.5 mm.

This type of instrument measures the pressure by means of a silicon diaphragm on a piezoelectric principle. Therefore this transducer attains good overload endurance, is resistant against vibrations and may work in an arbitrary position. It is an advantage for some applications to measure both the positive and negative pressure with one transducer. Electronic circuitry is realized by a surface mount technology.

Output is realized as NPN transistor with open collector. This type of output allows simply realize logic levels for direct input to regulator or connect relay for power actuator driving. On the right side of the case is LED, which indicates transistor switch-ON state. Implicitly the switch is set to transistor switch-ON with increasing pressure over preset level. Output signal can be negated by shunting jumper. Fixed hysteresis cca 1,5% from nominal range is built-in to prevent oscillations during pass over switching level. Switching level adjustment is realized by multi-turn trim-pot, which is accessible through the hole in right side, beside LED. To keep high IP protection this hole is covered by M3 screw, which must be during adjustment dismount. Switching level adjustment can be ordered directly at the manufacturer, can be adjusted experimentally or with external pressure meter, respectively by external DC voltmeter with measuring internal voltage and recalculating according formula, which is placed on the rear side of this document. Pressure switch fitted with LCD allow displaying adjusted level by press the internal button.

The switches may be supplied by a DC voltage in a range 12–36 V. Change of the supply voltage within this range has not any practical impact on the measurement accuracy. Under the cover, there are placed short-circuiting jumpers for selection of the damping time constant.

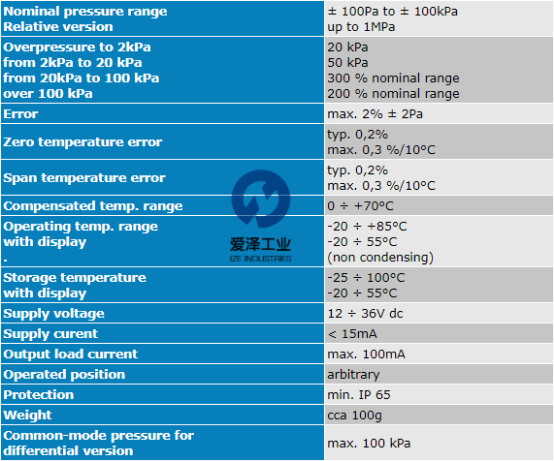

CRESSTO壓力表TMS系列技術參數

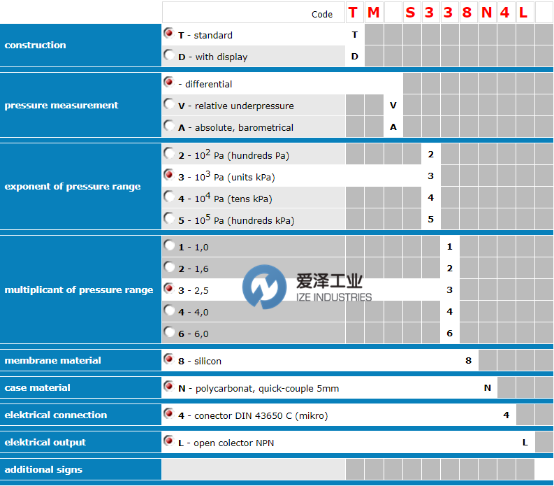

CRESSTO壓力表TMS系列選型參考

CRESSTO壓力表TMS系列

愛澤工業(IZE INDUSTRIES)特價經銷、常用備件CRESSTO壓力表系列列表：

CRESSTO壓力表TMVS218N4L

CRESSTO壓力表TMVS228N4L

CRESSTO壓力表TMVS238N4L

CRESSTO壓力表TMVS248N4L

CRESSTO壓力表TMVS268N4L

CRESSTO壓力表TMVS318N4L

CRESSTO壓力表TMVS328N4L

CRESSTO壓力表TMVS338N4L

CRESSTO壓力表TMVS348N4L

CRESSTO壓力表TMVS368N4L

CRESSTO壓力表TMVS418N4L

CRESSTO壓力表TMVS428N4L

CRESSTO壓力表TMVS438N4L

CRESSTO壓力表TMVS448N4L

CRESSTO壓力表TMVS468N4L

CRESSTO壓力表TMVS518N4L

CRESSTO壓力表TMVS528N4L

CRESSTO壓力表TMVS538N4L

CRESSTO壓力表TMVS548N4L

CRESSTO壓力表TMVS568N4L

CRESSTO壓力表TMAS218N4L

CRESSTO壓力表TMAS228N4L

CRESSTO壓力表TMAS238N4L

CRESSTO壓力表TMAS248N4L

CRESSTO壓力表TMAS268N4L

CRESSTO壓力表TMAS318N4L

CRESSTO壓力表TMAS328N4L

CRESSTO壓力表TMAS338N4L

CRESSTO壓力表TMAS348N4L

CRESSTO壓力表TMAS368N4L

CRESSTO壓力表TMAS418N4L

CRESSTO壓力表TMAS428N4L

CRESSTO壓力表TMAS438N4L

CRESSTO壓力表TMAS448N4L

CRESSTO壓力表TMAS468N4L

CRESSTO壓力表TMAS518N4L

CRESSTO壓力表TMAS528N4L

CRESSTO壓力表TMAS538N4L

CRESSTO壓力表TMAS548N4L

CRESSTO壓力表TMAS568N4L

CRESSTO壓力表DMVS218N4L

CRESSTO壓力表DMVS228N4L

CRESSTO壓力表DMVS238N4L

CRESSTO壓力表DMVS248N4L

CRESSTO壓力表DMVS268N4L

CRESSTO壓力表DMVS318N4L

CRESSTO壓力表DMVS328N4L

CRESSTO壓力表DMVS338N4L

CRESSTO壓力表DMVS348N4L

CRESSTO壓力表DMVS368N4L

CRESSTO壓力表DMVS418N4L

CRESSTO壓力表DMVS428N4L

CRESSTO壓力表DMVS438N4L

CRESSTO壓力表DMVS448N4L

CRESSTO壓力表DMVS468N4L

CRESSTO壓力表DMVS518N4L

CRESSTO壓力表DMVS528N4L

CRESSTO壓力表DMVS538N4L

CRESSTO壓力表DMVS548N4L

CRESSTO壓力表DMVS568N4L

CRESSTO壓力表DMAS218N4L

CRESSTO壓力表DMAS228N4L

CRESSTO壓力表DMAS238N4L

CRESSTO壓力表DMAS248N4L

CRESSTO壓力表DMAS268N4L

CRESSTO壓力表DMAS318N4L

CRESSTO壓力表DMAS328N4L

CRESSTO壓力表DMAS338N4L

CRESSTO壓力表DMAS348N4L

CRESSTO壓力表DMAS368N4L

CRESSTO壓力表DMAS418N4L

CRESSTO壓力表DMAS428N4L

CRESSTO壓力表DMAS438N4L

CRESSTO壓力表DMAS448N4L

CRESSTO壓力表DMAS468N4L

CRESSTO壓力表DMAS518N4L

CRESSTO壓力表DMAS528N4L

CRESSTO壓力表DMAS538N4L

CRESSTO壓力表DMAS548N4L

CRESSTO壓力表DMAS568N4L
