M54410 M-CVMK2-ITF-405已停產,替代型號M56311 CVM-A1500-ITF-485-ICT2
CIRCUTOR功率分析儀CVM-A1500系列技術參數
Technical features | |
Connections | |
Digital inputs | Selection of tariffs, states or external alarms |
Type | Optoisolated potential-free contact |
Quantity | 2 |
Activation current | 5 mA (15 V maximum voltage of open contact) |
Insulation | 4 kV |
Digital outputs | Generation of impulses or alarms |
Type | NPN transistor |
Quantity | 2 |
Maximum operation voltage | 48 Vdc |
Maximum switching current | 130 mA |
Maximum frequency | 1 kHz |
Pulse duration (Ton / Toff) | 0.3 / 0.7 ms (1 ms of a complete impulse) |
Alarms | |
Type | Relay |
Quantity | 2 |
Maximum operating power | 1500 W |
Maximum voltage, open contacts | 250 Vac |
Maximum switching current | 6A |
Electrical working life (400 V / 6 A) | 3 x 104 cycles |
Mechanical working life | 1 x 107 cycles |
Built-in communications | |
Protocols | Modbus RTU / BACnet |
Speed | 9600...115200 |
bits, parity, stop | 8, n, 1 (configurable) |
Environmental conditions | |
Working temperature | -10...+50oC |
Relative humidity | 5...95% |
Altitude | 2000 m |
Build features | |
Format | Assembly on 144x144 mm panel |
Depth | 1 module |
Front panel IP protection | IP 40 (IP 65 with sealing gasket) |
Rear panel IP protection | IP 30 |
Safety | |
Designed for CAT III 300/520 Va.c. installations, in accordance with EN 61010 | |
Standards | |
IEC 62053-22, ANSI (class 0.2S), IEC 62053-24 (Class 1) / ANSI C12.1 (Class 2), class A acc. to IEC 61000-4-30, IEC 61010, IEC 61000, UNE-EN 55022 Measurement acc. to MID, UL certification IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-11, IEC 61000-4-4, IEC 61000-4-5 |
CIRCUTOR功率分析儀CVM-A1500系列介紹及選型

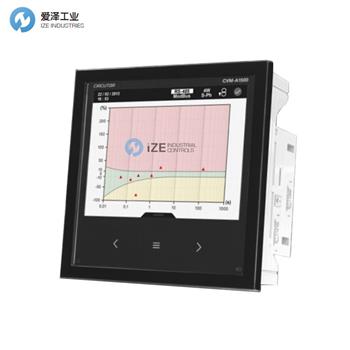

CVM-A1500 is a panel mounted power quality analyzer with EMS (Energy Management Software) integrated. Its internal Web Server (html5) allows any user to have full installation control by using any web browser.
Designed to be installed in the most relevant or critical part of electric installations since it registers and monitors a wide range of variables (almost one year of data with RMS, maximum and minimum values). The device also registers power quality events such as swells, dips, interruptions (every half cycle) and transients (according to IEC 61000-4-30 Class A). Any event will be immediately captured with the voltage and current waveform.
This model adds the measurement of power quality variables (defined in the standard EN 50160) such as flicker, unbalance (Kd) and asymmetry (Ka) coefficients or voltage and current harmonics decomposition up to 63th. In addition it is possible to monitor in real time the instantaneous waveforms of voltage and current through its oscilloscope function.
As an added value, CVM-A1500 displays the number of events and transients on each affected phase with the level reached, duration and its associated waveform. In addition, those events are directly displayed in CBEMA, ITIC y SEMI-F47 graphs.
The smart design of the CVM-A1500 allows users to customize their own screens in order to access to the information faster and easy. Remark that the device allows the connection though PowerStudio software to save and store, in a redundant way, all the information in a server or PC avoiding memory limits.
CVM-A1500 是一款集成了 EMS(能源管理軟件)的面板安裝式電能質量分析儀。其內部 Web 服務器 (html5) 允許任何用戶使用任何 Web 瀏覽器進行完全安裝控制。
設計用于安裝在電氣裝置中最相關或最關鍵的部分,因?yàn)樗梢宰?cè)和監控范圍廣泛的變量(幾乎一年的數據,帶有 RMS、最大值和最小值)。該設備還記錄電能質量事件,例如驟升、驟降、中斷(每半個周期)和瞬變(根據 IEC 61000-4-30 A 類)。任何事件都將立即被電壓和電流波形捕獲。
該模型增加了電能質量變量(在標準 EN 50160 中定義)的測量,例如閃爍、不平衡 (Kd) 和不對稱 (Ka) 系數或高達 63 次的電壓和電流諧波分解。此外,還可以通過其示波器功能實時監控電壓和電流的瞬時波形。
作為附加值,CVM-A1500 顯示每個受影響相位上的事件和瞬變數量,以及達到的電平、持續時間及其相關波形。此外,這些事件直接顯示在 CBEMA、ITIC 和 SEMI-F47 圖表中。
CVM-A1500 的智能設計允許用戶自定義自己的屏幕,以便更快、更輕松地訪問信息。請注意,該設備允許通過 PowerStudio 軟件連接,以冗余方式保存和存儲服務器或 PC 中的所有信息,避免內存限制。
CIRCUTOR功率分析儀CVM-A1500系列其他常用型號:

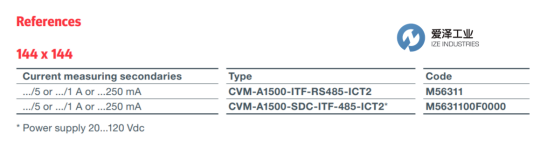

CIRCUTOR CVM-A1500-ITF-RS485-ICT2 M56311
