HYPERTAC連接器REP系列技術參數
Contact Arrangements | 2, 6, 12 |
Contact Diameter | Size 16: ? 1.50 mm (0.059 in) |
Weight (contacts included) | REP606 with contacts: 19.3g |
Coding Configurations Polarisation | Cable-to-cable, clip locking, panel mount 180° |
Materials & Plating | |
Contacts | Gold over nickel plating |
Insulator | Polycarbonate |
Seal & Grommet | Overmoulded silicone |
Mechanical & Environmental | |
Contact Retention Force | > 70 N |
Contact Retention Force PCB version | > 20 N |
Clip Locking Retention Force | >110 N |
Mating Cycles | > 500 cycles |
Temperature Range | -75 °C to +100 °C (for crimp versions) |
Vibration | Category 2 (bogie installation) |
Flammability | I2 F1 |
Salt Spray | > 96 hours |
Fluid Resistance | Cleaning substances, gasoline/oil, acids, |
IP Level | IP66, IP67 |
Electrical | |
Current Rating | 18 A |
Voltage Rating | 230 V (400 V with plastic dummy contacts) |
Dielectric Withstanding Voltage | 2725 V |
Contact Resistance | ≤ 2.5 mΩ |
Insulation Resistance | ≥ 5x103 MΩ |

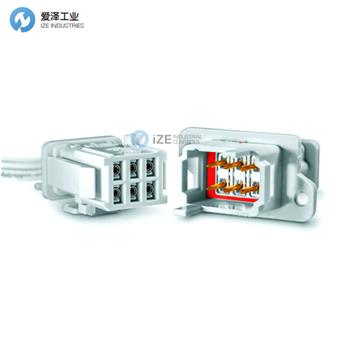

HYPERTAC連接器REP系列介紹
REP 系列易于使用，可快速插接。REP 面板和電纜連接器是一種更具成本效益的互連系統，可滿足鐵路應用中對簡單可靠的連接器解決方案的持續需求。提供電線連接或 PCB 安裝選項的全塑料解決方案，可提供快速組裝安裝，無需額外的安裝硬件。需要時，電纜插座連接器可與電纜插頭連接器配合，以實現電纜到電纜的解決方案。該系列符合法國和歐洲鐵路標準。這些連接器可作為一個包覆成型的塑料部件，以節省組裝時間。
REP series is easy to use for quick mating. The REP panel and cable connectors are a highly cost-effective interconnect system, which solves the constant need for simple and reliable connector solutions in rail applications. A full plastic solution offered in either wire attachment or PCB mounting options to provide rapid assembly installation without requiring additional mounting hardware. Cable receptacle connectors are available to mate with the cable plug connectors for cable-to- cable solutions when needed. The series is qualified to French and European rail standards. The connectors are available as one overmolded plastic part to save assembly time.
HYPERTAC連接器REP系列選型
HYPERTAC連接器REP系列其他常用型號：
HYPERTAC REP102030000
HYPERTAC REP202040000
HYPERTAC REP206040000
HYPERTAC REP606040000
HYPERTAC REP102122000
HYPERTAC REP202232000
HYPERTAC REP206232000
HYPERTAC REP206232001
HYPERTAC REP206230320
HYPERTAC REP206230320V2
HYPERTAC REP206230320V1
HYPERTAC CONNECTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HYPERTAC連接器REP202232000的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HYPERTAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
